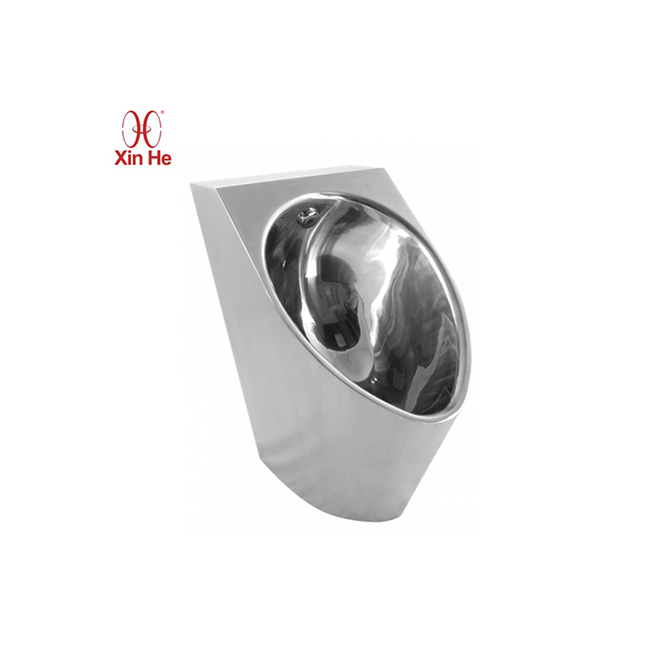

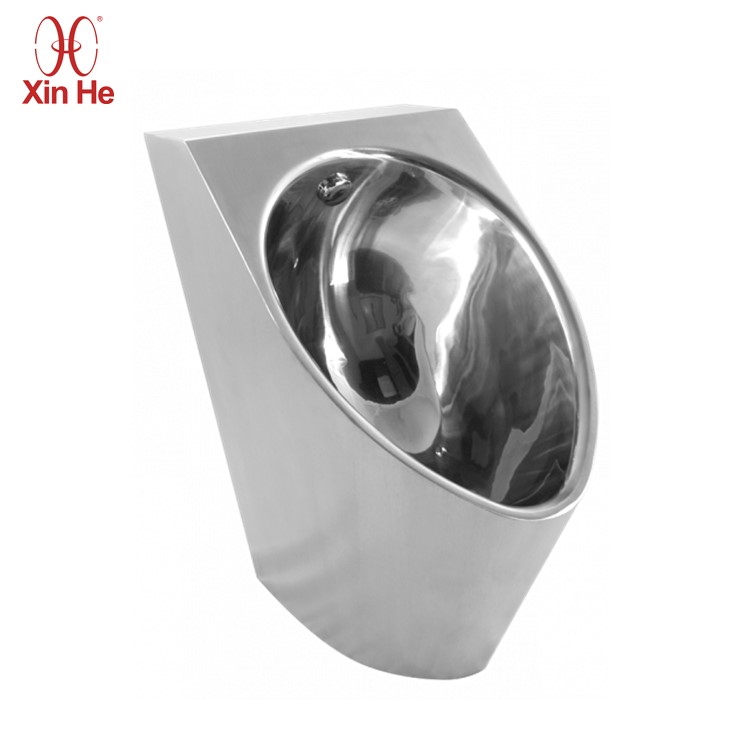

Stainless Steel Urinal Bowl for Commercial Male Toilets

From Bowl Geometry to Restroom Layout: Why a Single-Unit Urinal Bowl Matters

Facility planners laying out a men’s restroom rarely need a single continuous trough for every project — schools, factories, office towers, and mosque ablution areas often call for individually spaced bowl units that give each user a private, walled position while keeping plumbing runs simple. The PQ270 answers that specific brief: a self-contained stainless steel urinal bowl with its own top-spud water inlet, its own P-trap or S-trap outlet, and mounting geometry sized to sit between partition walls rather than along an open trough run. This distinction matters at the tender stage, because specifying a bowl-format urinal changes the partition schedule, the flush-valve count, and the per-unit spacing calculations a mechanical consultant has to submit.

Bowl Profile and Splash Containment

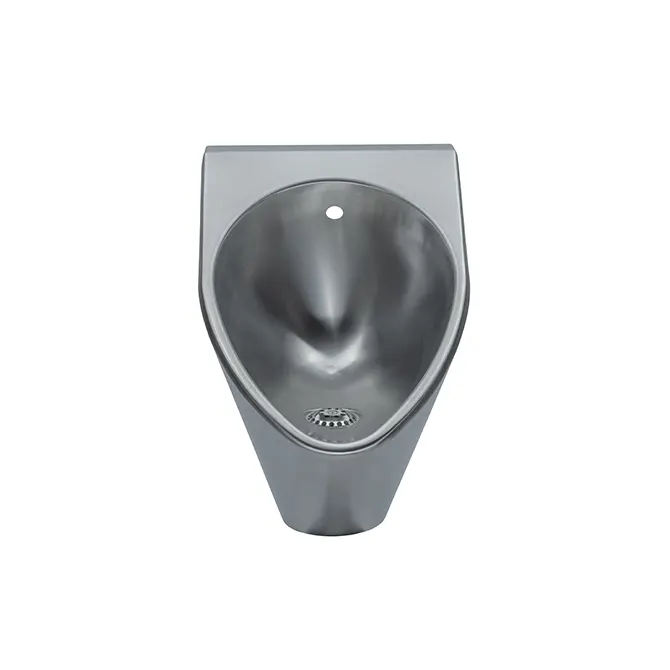

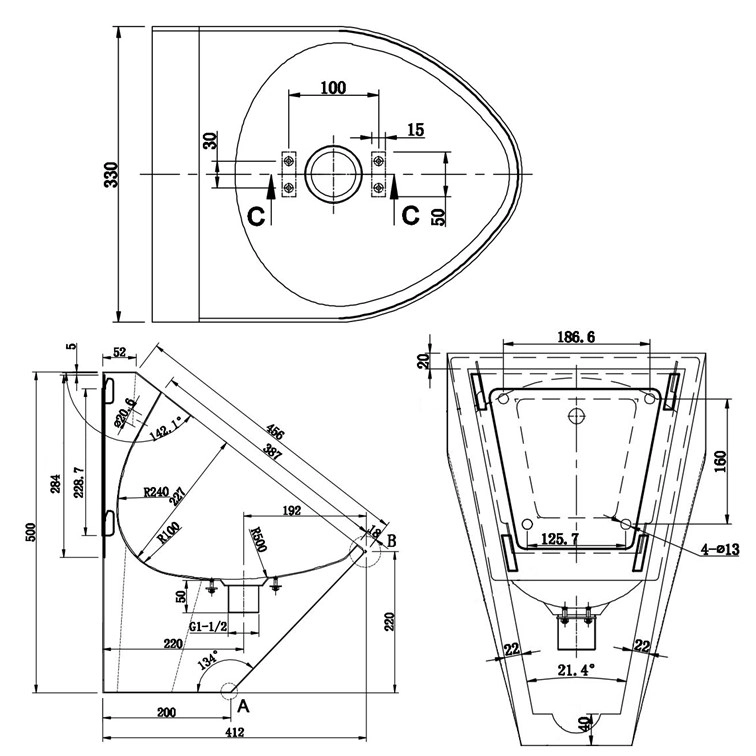

The bowl interior is deep-drawn from a single sheet of stainless steel with a sloped rear wall and a raised front lip designed to reduce splash-back onto the floor and adjacent partitions — a recurring complaint with shallow porcelain bowls in high-traffic facilities. The 497 × 330 × 500mm external footprint keeps the unit compact enough for standard 700–800mm partition bays while still providing enough internal bowl depth for comfortable use by adult male users.

Material Selection: 304 Versus 316 for Restroom Environments

304 Stainless Steel for Standard Commercial Restrooms

304-grade stainless steel is the standard specification for the PQ270 and performs reliably in most indoor commercial restrooms — offices, retail centers, schools, and transit stations — where cleaning relies on standard bathroom disinfectants rather than aggressive chlorine-based agents.

316 Stainless Steel for Coastal, Industrial, and High-Humidity Installations

Projects located in coastal Gulf cities, Southeast Asian port facilities, or industrial plants with airborne chemical exposure benefit from upgrading to 316 stainless steel, which contains molybdenum for improved resistance to chloride pitting. Buyers sourcing for humid or corrosive environments should specify 316 at the quotation stage rather than after installation, since bowl geometry and mounting brackets are identical across both grades.

Flushing, Water Inlet, and Sensor Compatibility

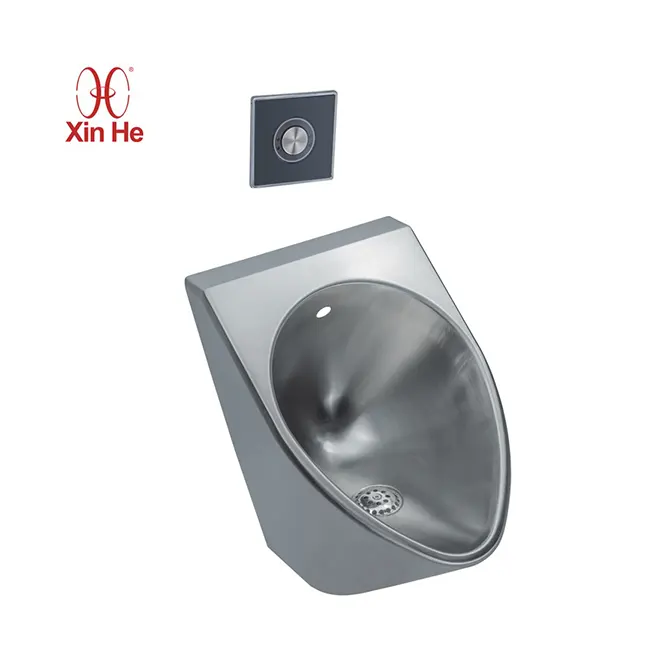

The PQ270 uses a top-spud water inlet with a choice of gravity flushing or siphon flushing, and is compatible with either manual flush valves or automatic sensor-operated valves running on DC or AC power. For high-traffic public facilities — stadium concourses, transit terminals, correctional intake areas — sensor-activated flushing reduces both water consumption and surface-contact points, a specification increasingly requested by facility hygiene managers rather than architects alone.

Retrofitting Existing Restroom Blocks

Because the bowl mounts on a standard wall-hung carrier system, the PQ270 can replace failed or cracked porcelain urinal bowls in existing restroom blocks without altering the rough-in plumbing, provided the flush valve spacing matches. This makes the unit relevant not only for new-build tenders but for renovation contracts where facility managers are phasing out porcelain fixtures prone to chipping and bacterial harborage in grout lines.

Certification and Code Compliance for Cross-Border Projects

Every PQ270 unit ships with documentation covering cUPC certification for the United States and Canada, CE marking for the European Union, WaterMark approval for Australia, and NSF/ANSI 61 compliance for drinking-water-adjacent components, alongside ISO 9001 quality management certification and SGS material verification reports. For procurement teams managing multi-country tenders, having one bowl specification pre-certified across four regulatory frameworks removes a common bottleneck where different country offices would otherwise need separate fixture approvals.

Installation Requirements and Wall Load Considerations

Wall Substrate and Carrier Compatibility

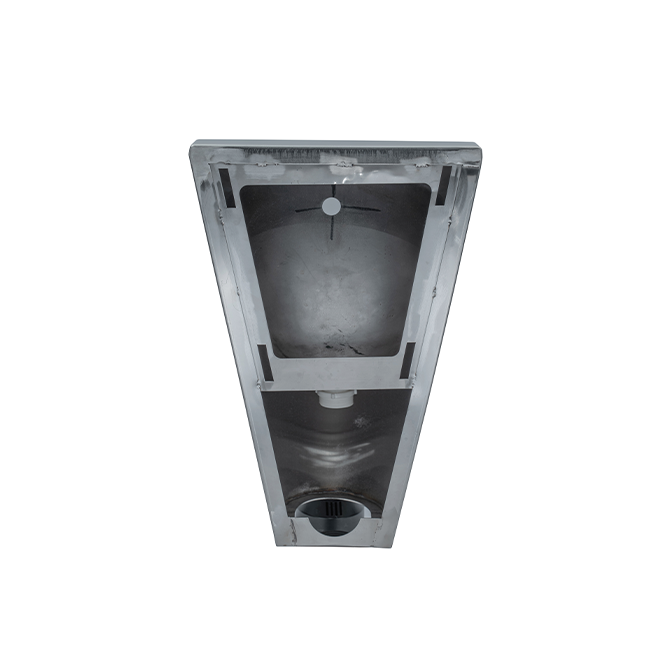

The PQ270 requires a load-bearing wall — concrete, reinforced block, or a properly rated wall-hung carrier system — capable of supporting the bowl weight plus retained water and repeated user-contact loading. Installers should confirm carrier bolt spacing against the bowl’s mounting bracket layout before wall finishing begins, since retrofitting brackets after tiling is complete adds significant labor cost.

Partition and Spacing Coordination

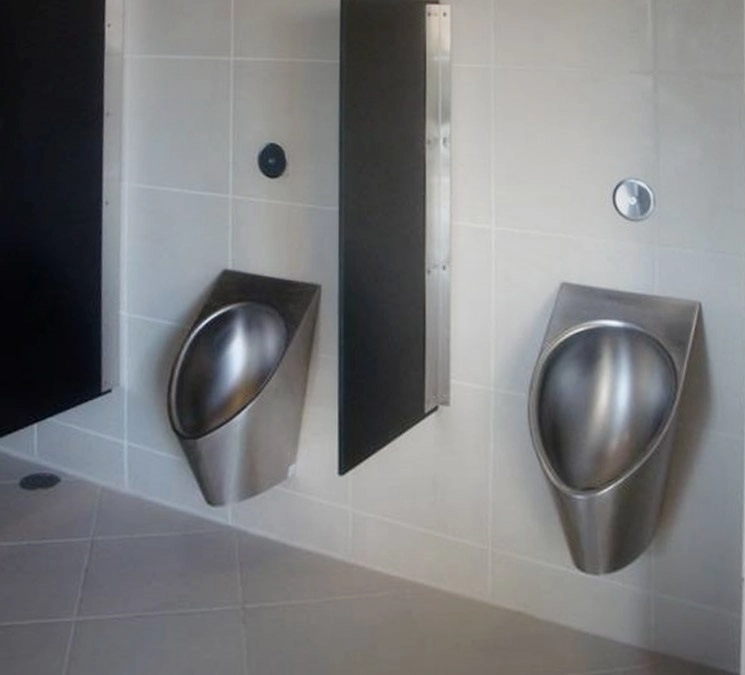

Because the PQ270 is a discrete bowl rather than a continuous trough, restroom designers can set partition centerlines independently for each unit, typically at 700–800mm intervals depending on local accessibility codes, and can mix bowl heights within the same row to accommodate ADA-compliant lower-mounted units alongside standard-height units.

Customization for OEM and Project-Specific Orders

Bowl dimensions, drain position, surface finish (brushed satin or polished), and exterior color — including black, gunmetal, gold, brass, rose gold, or white powder-finished options — can all be adjusted for OEM and private-label orders. Project buyers ordering across multiple restroom blocks within one facility can standardize on a single bowl profile while varying finish colors by building zone, a request common in hospitality and transit-hub renovation contracts.
