Industrial Grade Stainless Steel Anti-Slip Squat Toilet for Public Facilities

Built for Squatting Posture in Public Settings

Why a Squat Pan Instead of a Pedestal Bowl

In many parts of Southeast Asia, the Middle East, China, and Southern Europe, users expect to squat on the toilet rather than sit. A squat toilet matches that expectation directly, with no raised seat to climb onto and no seat cover to replace or vandalise. Facility managers running sites in these regions specify a stainless squat pan because it removes the friction between user habit and fixture design.

Where Sitting Fixtures Fail and Squatting Wins

Pedestal bowls crack under impact, and ceramic seats are a recurring replacement cost in unsupervised toilets. A stainless steel squat toilet has no protruding seat, no hinge, and no lid to remove. The footprint is flush with the floor, so there is nothing to strike, lever off, or smash. For outdoor and remote locations where replacement parts take weeks to arrive, that simplicity is the whole point.

Anti-Slip Surface and Drainage Engineering

Raised Tread Pattern for Wet-Floor Safety

The standing area carries a raised anti-slip pattern pressed into the stainless plate. Wet footwear, soapy water, and high humidity are normal conditions in a public washroom. The tread gives users grip underfoot, which matters most at transit stops, park facilities, and factory floors where the surface is rarely dry.

Deep Bowl and Fast Waste Removal

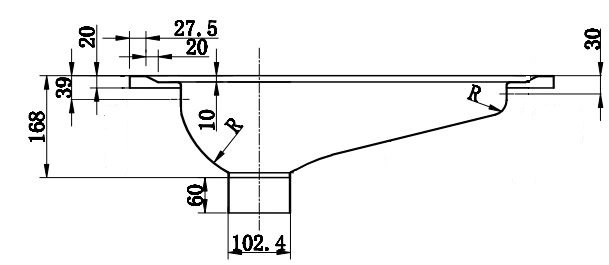

The bowl is drawn deeper than a typical flat squatting slab. Waste drops straight into the pan and clears on the first flush. The outlet accepts a standard 4″ waste pipe, and the internal slope is set so that water carries solids out without pooling. Gravity flush or siphon flush is available depending on local plumbing.

Material, Gauge, and Weather Resistance

Type 304 Stainless as Standard

The body is fabricated from Type 304 stainless steel. This grade holds up against the moisture, urine, and cleaning chemicals found in public toilets. For coastal installations or sites exposed to salt spray, 316 grade is available on order. No coating is applied — the corrosion resistance is in the alloy itself.

No Ceramic, No Glaze, No Paint to Fail

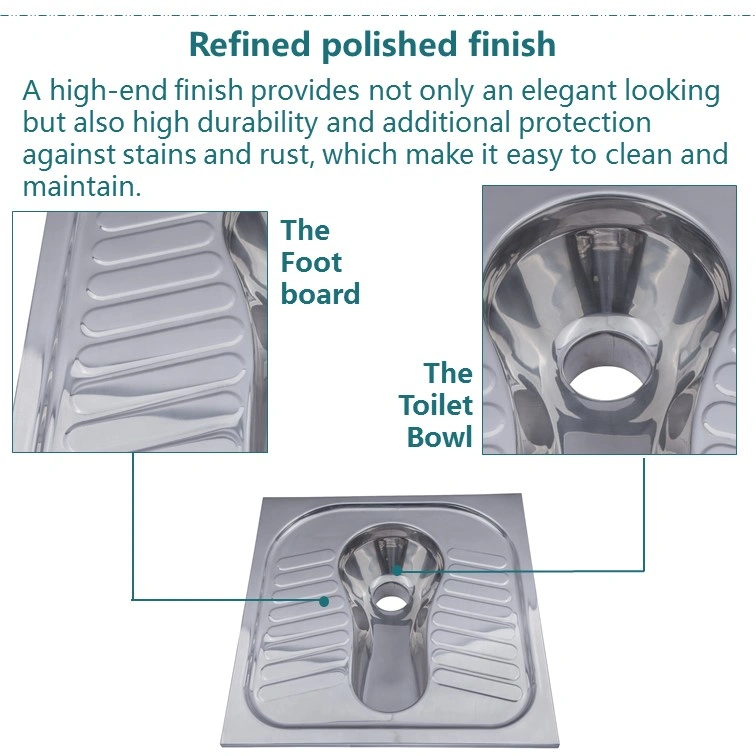

Because the pan is solid stainless, there is no glaze to chip, no paint to scratch off, and no enamel to expose. Scrubbing with hard brushes and industrial disinfectant will not break through a surface layer, because there is no surface layer to break. The satin or polished finish is mechanical, not applied.

Target Projects

Public Infrastructure and Outdoor Facilities

This squat toilet is specified for outdoor public toilets in parks, roadside rest areas, bus and train stations, ferry terminals, and tourist-site comfort stations. These are locations where fixtures run unsupervised, where weather reaches them, and where maintenance teams need a unit they can clean fast and leave.

Industrial and Remote-Site Latrines

Construction camps, mining sites, oil and gas field housing, plantation labour quarters, and factory washrooms are core applications. Procurement managers on these projects need a pan that survives rough handling, rough use, and long gaps between service visits — not a fixture that looks good in a showroom.

Installation and Plumbing Compatibility

Floor-Mount Setup

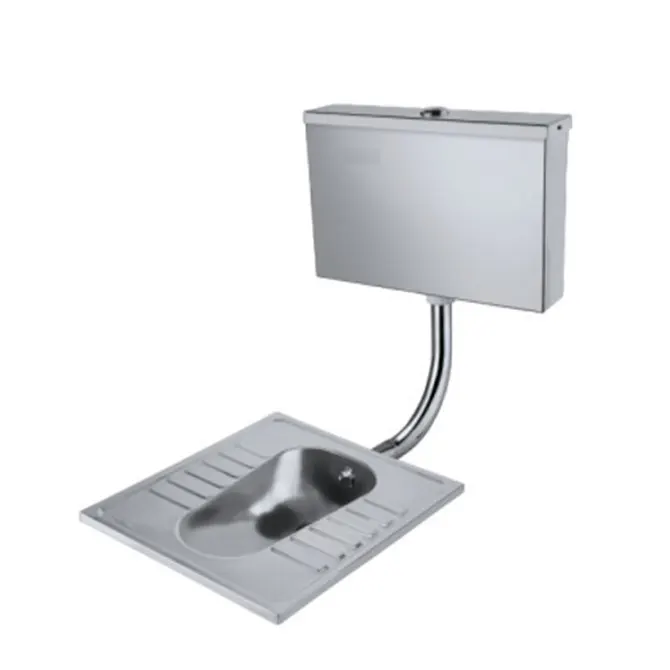

The pan sets flush into a concrete floor slab. The waste outlet connects to a standard 4″ pipe, and the flush connection accepts either a gravity cistern feed or a manual flush valve. Fixings are concealed once installed, leaving no exposed bolts to tamper with.

Retrofitting Ceramic Pits

On renovation projects, contractors often replace a broken ceramic squatting pit with this stainless pan. The footprint and outlet position can be adjusted to match the existing rough-in, so the floor does not need to be re-cut. Send us the dimensions of the unit being replaced and we will confirm fit.

Manufacturing, Certification, and Supply

Two Factories, One Standard

Xinhe produces this squat pan at facilities in Jiangmen, China and Ho Chi Minh City, Vietnam — 52,000 square meters combined. Both plants run the same gauge, the same weld and grind process, and the same inspection routine. The Vietnam line helps reduce landed-cost and tariff exposure for buyers serving ASEAN and Middle East tenders.

Certifications for Project Submittals

Units are supplied with CE documentation. For projects requiring cUPC, WaterMark, NSF/ANSI 61, or ISO 9001 references, supporting paperwork is available for specification review and tender submission. This matters for contractors and distributors who must close out compliance before purchase orders are released.

OEM and Private-Label Supply

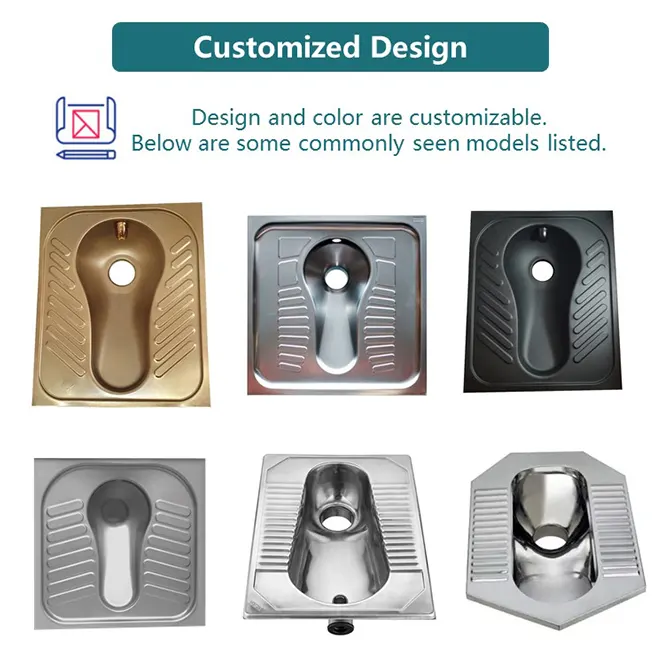

We manufacture squat toilets for Elkay, Franke, Kohler, Bradley Corporation, and Delabie under private label. The same gauge and weld standard applies whether the unit ships under our name or yours. Custom pan depths, outlet positions, and flush configurations are built to your spec on OEM orders.
