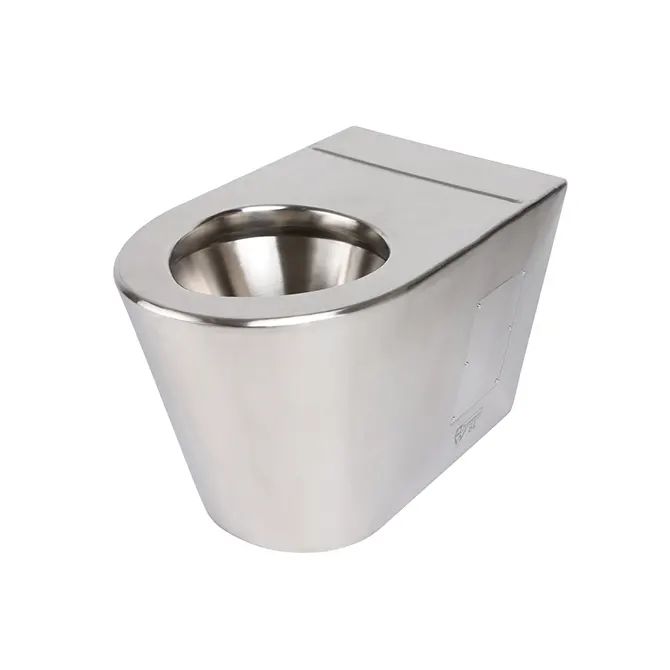

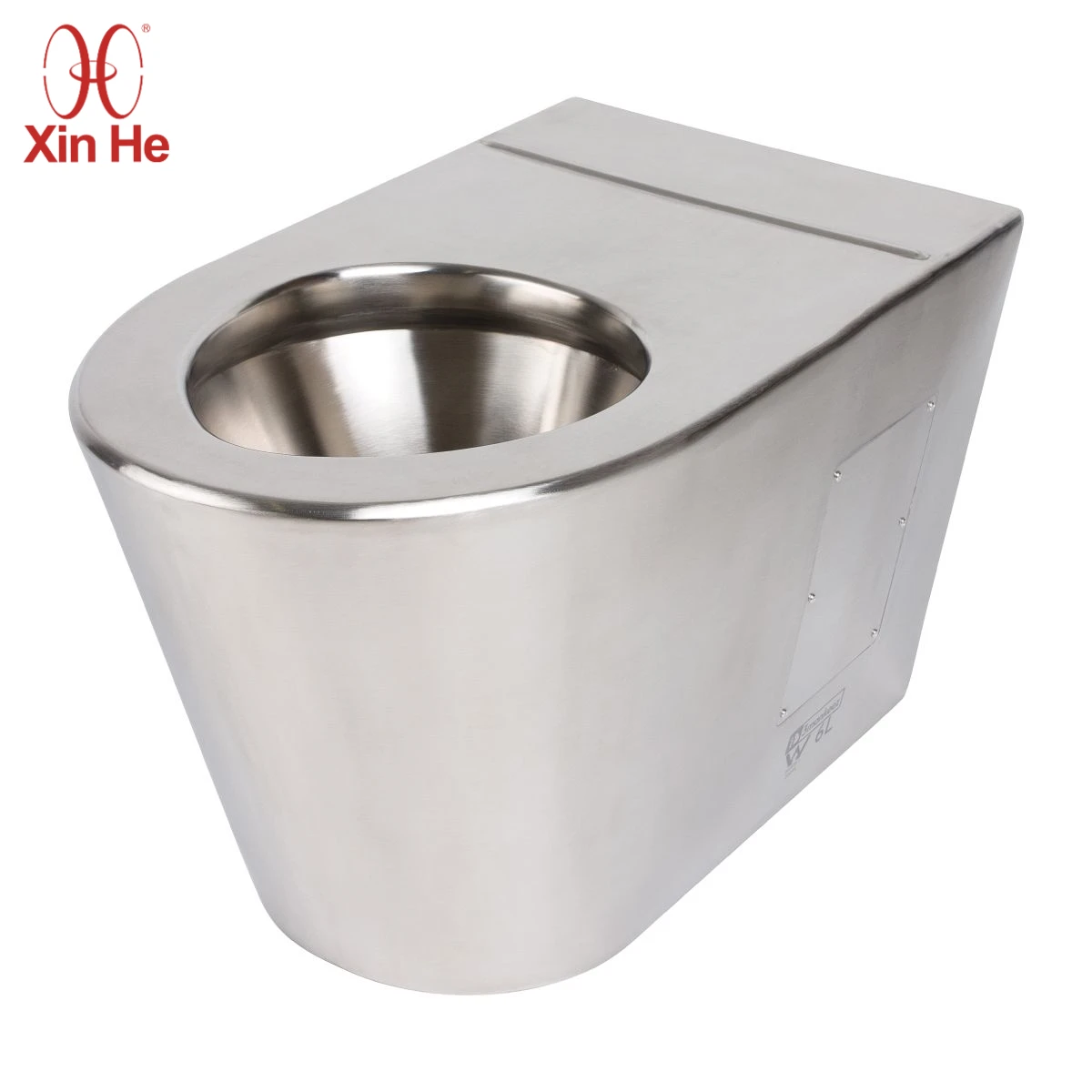

Vandal-Resistant Stainless Steel Public Toilet (Model PQ606)

Built to Survive High-Abuse Public Restrooms

Public toilets in unmonitored or after-hours locations fail for predictable reasons: cracked bowls, snapped flush buttons, pried-off seats, and surfaces permanently stained by marker pens and adhesives. Ceramic fixtures chip on the first hard impact. Even standard commercial stainless units can fail at welded seams when subjected to repeated kicking or prying.

The PQ606 addresses each of these failure modes at the design stage. The bowl is pressed from a single sheet of 1.2 mm Type 304 stainless steel — up to 2.0 mm on request for the most demanding sites — with no welded joints in the water-contact zone. Flush actuation uses a recessed, side-pressing mechanism that sits flush with the body, leaving nothing protruding for a lever or pry bar to catch. The seat and cover anchor from inside the chassis with concealed fasteners, and the trapway is a one-piece molded P-trap or S-trap with no welded seam at the joint.

For facility teams that have replaced the same ceramic toilet three times in two years, the construction logic is straightforward: remove the breakable parts, thicken the steel, and hide the fasteners.

Anti-Vandal Engineering, Inside and Out

Impact-Resistant Bowl Geometry

The bowl wall is drawn at a compound angle that distributes lateral force across the chassis rather than concentrating it at a single point. In drop-weight testing, the PQ606 bowl withstands repeated impact that would fracture vitreous china on the first strike. The 35° internal basin angle serves a dual purpose: it drives waste toward the trapway for a clean gravity or siphon flush, and it prevents standing water from pooling where bacteria and scale build up.

Graffiti-Resistant Surface Finish

The standard finish pairs a polished bowl interior with a brushed satin outer frame. The brushed texture breaks up the surface reflection that makes marker ink and adhesive residue visible on mirror-polished steel. Most graffiti wipes off with a standard non-abrasive stainless cleaner; for sites with chronic tagging, an optional anti-graffiti coating can be specified at the project stage.

Concealed Plumbing and Tamper-Proof Fasteners

Every external fastener on the PQ606 uses a tamper-resistant head, and the spud location is top-set to keep the supply line inside the wall chase where possible. On wall-mounted configurations, the waste outlet routes through the wall, leaving nothing exposed beneath the bowl. This matters in transit stations and park facilities where exposed pipes are routinely used as footholds or pull-up bars.

Where Vandal-Resistant Fixtures Belong

The PQ606 is specified most often in environments where the restroom is open to the general public with limited or no attendant supervision.

Transit and Transportation

Bus depots, metro stations, and highway rest stops see some of the highest abuse rates of any public facility. Fixtures here must survive not only vandalism but constant volume — hundreds of flushes per day, luggage impacts, and cleaning crews working on tight schedules. The vandal proof toilet configuration with a flush-valve-ready spud and concealed waste outlet is a common specification for transit authority procurement contracts.

Parks, Recreation, and Outdoor Public Sites

Public parks, beach access points, and trailhead comfort stations face a different challenge: intermittent heavy use, weather exposure, and long gaps between maintenance visits. The 304 stainless steel body will not rust, fade, or crack in freezing conditions, making it suitable for facilities that may sit unheated through winter.

Stadiums, Arenas, and Entertainment Districts

Event venues concentrate thousands of users into a few hours. Fixtures must flush reliably under peak load and survive the post-event period when supervision drops. The seamless bowl and recessed flush button reduce the parts that can be broken between events, keeping maintenance teams focused on cleaning rather than repairs.

Nightlife and Late-Night Commercial Streets

Bar districts and 24-hour commercial streets see alcohol-fueled misuse that standard fixtures cannot absorb. The PQ606’s impact resistance and graffiti-rejecting finish are the two features most cited by contractors outfitting these locations.

Maintenance That Fits a Cleaner’s Schedule

A vandal-resistant toilet only delivers value if it also reduces the time cleaners spend on each stall. The PQ606 is designed around three maintenance realities.

The non-porous stainless surface accepts the same disinfectant sprays and wipes already stocked in a facility’s cleaning cart — no special cleaners, no re-coating, no re-sealing. The bowl’s polished interior sheds waste and water spots faster than brushed or unpolished steel, so a single pass with a bowl brush and a wipe-down leaves the surface presentation-ready. The 35° basin angle eliminates the standing-water ring where hard-water scale accumulates, which is the single most common reason cleaners resort to acidic descalers that eventually etch the surface.

For maintenance managers tracking labor minutes per stall, the practical result is a fixture that cleans in the same time as ceramic but does not generate the breakage work orders that pull cleaners off their route.

Material, Gauge, and Finish Options

Steel Grade

Standard construction uses Type 304 stainless steel, which performs well in indoor and sheltered outdoor public restrooms. For coastal installations, swimming pool facilities, or sites with aggressive cleaning chemicals, Type 316 stainless steel is available as an upgrade — its molybdenum content resists chloride pitting from salt air and chlorine exposure.

Gauge

The standard 1.2 mm body handles the majority of public restroom applications. For sites with documented high-impact abuse histories, 1.5 mm and 2.0 mm upgrades are available on the bowl and mounting points.

Finish and Color

The default finish is a polished bowl with a brushed satin outer frame in the natural stainless steel color. Custom colors — black, gun metal, gold, brass, rose gold, and white — are available for projects that need to match a design palette or deter the institutional look that some venues want to avoid.

Sourcing for Municipal and Venue Projects

Xinhe manufactures the PQ606 at facilities in Jiangmen, China and Ho Chi Minh City, Vietnam, giving project buyers a choice of origin for tariff and lead-time optimization. The minimum order quantity is 5 units, which accommodates both single-site replacements and multi-venue rollouts.

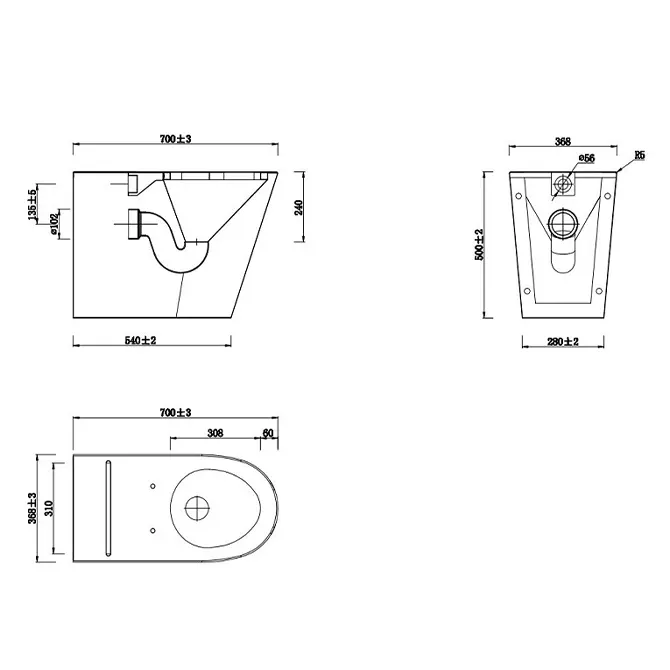

For distributors and procurement teams managing public bids, the PQ606 can be supplied with project-specific documentation: dimensioned drawings, material certificates, flush-performance data, and installation instructions. OEM and ODM customization covers branding, packaging, rough-in dimensions, flush button type, and accessory bundles including cistern, grab bar, seat and cover, flush valve, and faucet.

The model is already specified by transit authorities, municipal public works departments, and stadium facility operators across more than 80 countries, with long-term manufacturing partnerships including Kohler, Elkay, and American Standard.

Compliance and Project Documentation

Every PQ606 unit ships with documentation supporting public project specification reviews. Available certifications include CE for European public procurement, cUPC for U.S. and Canadian plumbing code compliance, WaterMark for Australian and New Zealand installations, NSF/ANSI 61 for potable water system components, and ISO 9001 quality system registration, with SGS material inspection reports available on request.

This documentation set is built for the people who actually review and approve fixtures before a purchase order is issued — architects, specifying engineers, procurement officers, and code officials — not just the installer on site.
