90L Double Sink Laundry Cabinet in 304/316 Stainless Steel for Commercial and Residential Use

Engineered for High-Volume Laundry Operations

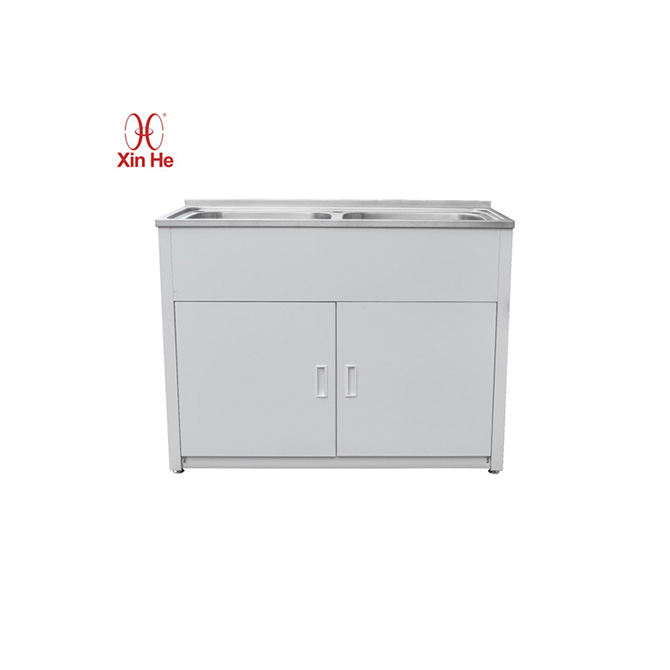

Dual-Basin Workflow Design

Operations that handle continuous laundry throughput need separation between soaking and rinsing stages. The double sink laundry cabinet addresses this with two identical basins measuring 610 × 510 × 250 mm each, giving staff the ability to pre-soak heavily soiled items in one bowl while rinsing and finishing in the other. This parallel-processing approach reduces cycle time in commercial settings where turnaround speed directly affects daily capacity. The 1200 mm overall width accommodates both basins without crowding the working area, and the 870–900 mm adjustable height range lets installers match the counter level to staff ergonomics or adjacent equipment.

For project specifiers evaluating laundry room layouts in multi-family residential buildings or hospitality properties, the dual-basin configuration also supports hygiene protocols that require physical separation between clean and dirty workflows — a consideration in daycare centers, pet grooming facilities, and care homes where cross-contamination is a regulatory concern.

304 vs 316 Stainless Steel Selection

The cabinet is fabricated in Type 304 stainless steel as standard, which handles typical indoor laundry environments including residential utility rooms and standard commercial laundries. For installations exposed to chlorinated cleaning chemicals, saline environments, or persistent humidity — such as coastal hospitality properties or facilities using aggressive sanitizers — Type 316 stainless steel is available as an upgrade. The 316 grade adds molybdenum to the alloy, raising pitting resistance against chloride exposure. Project buyers should specify the grade based on the chemical profile of cleaning agents used on-site; the cabinet structure, basins, and hardware are all available in either grade.

Technical Specifications and Dimensions

Basin and Cabinet Measurements

The overall footprint of 1200 × 510 mm fits standard utility room layouts in multi-unit residential developments, where laundry equipment is typically positioned along a single wall. The 510 mm depth keeps the cabinet clear of standard door swing paths in corridor-adjacent laundry rooms.

Material and Finish Options

Brushed finish is standard across all units, chosen for its ability to conceal water spots and minor surface wear that accumulates in high-traffic laundry environments. Polished finish is available on request for installations where visual consistency with adjacent stainless fixtures takes priority. Color options extend beyond the natural stainless finish to include black, gun metal, gold, brass, rose gold, and white — useful for hospitality projects where the laundry area shares visual language with guest-facing spaces.

Commercial and Multi-Unit Applications

Hospitality and Multi-Family Housing

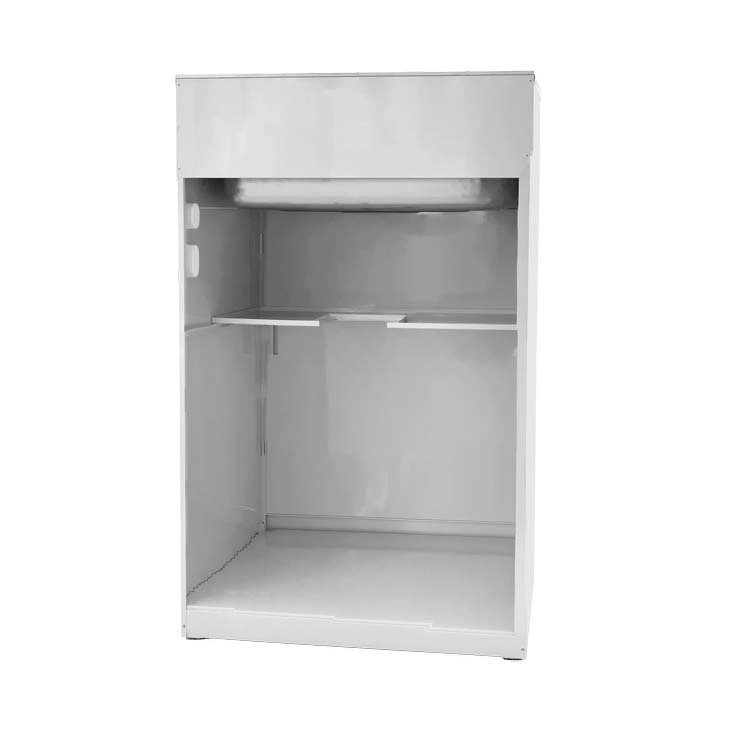

Hotel groups and apartment complex developers specify this dual-basin cabinet when laundry rooms serve multiple units or floors. The two-basin layout lets residents or housekeeping staff run separate wash cycles simultaneously, reducing wait times during peak usage hours. In extended-stay hotels and serviced apartments, the cabinet base provides enclosed storage for detergent, stain removers, and cleaning tools — keeping the shared laundry room organized between uses. The freestanding installation type means the cabinet can be positioned against any wall without requiring cabinetry integration, simplifying placement in retrofitted laundry spaces.

Pet Grooming and Specialty Facilities

Pet grooming salons and animal care facilities use the dual-basin configuration to separate washing and rinsing stations for different animals. The 316 stainless option is particularly relevant here, as grooming environments involve frequent exposure to shampoos, disinfectants, and biological waste that can accelerate corrosion in lower-grade materials. The deep 250 mm basin depth accommodates larger dog breeds, and the brushed finish resists scratching from pet accessories and grooming tools placed in and around the basins.

Installation and Integration

Freestanding Setup with Adjustable Legs

The cabinet ships with adjustable legs that compensate for floor irregularities up to a 30 mm range, which matters in older building retrofits and converted utility spaces where floors may not be perfectly level. Installers position the cabinet, level the legs, and connect plumbing — no wall mounting or cabinetry modification is required. Pre-cut faucet holes align with standard faucet configurations, and drain connections match standard waste pipe sizes, reducing the need for custom plumbing work on-site.

Plumbing Connections

Each basin includes a standard drain opening compatible with basket strainer assemblies. Supply line connections accommodate both single-handle and two-handle faucet configurations. For projects specifying included accessories, strainers, drain pipes, and faucets can be bundled with the cabinet at the OEM level, ensuring all components arrive together and match the basin specifications.

Manufacturing and Quality Assurance

Xinhe Production Capabilities

Xinhe has fabricated stainless steel products since 1990 from two manufacturing facilities totaling 52,000 square meters in Guangdong, China and Vietnam. The company supplies stainless fixtures to Elkay, Franke, Kohler, Bradley Corporation, and Delabie, with installations across more than 80 countries. Production capabilities include stamping, welding, brushing, and polishing in 14-gauge and 12-gauge stainless steel, with OEM/ODM customization for brand-specific requirements.

Certifications and Compliance

The double sink laundry cabinet carries cUPC, CE, WaterMark, NSF/ANSI 61, ISO 9001, and SGS certifications. WaterMark certification covers Australian and New Zealand plumbing code requirements. cUPC certification applies to North American plumbing compliance. CE marking covers European market access. NSF/ANSI 61 addresses drinking water system component health effects, relevant where laundry sinks share supply lines with potable water systems.

OEM and Project Customization

Brand partners and project procurement teams can specify custom basin dimensions, cabinet heights, color finishes, and accessory bundles. OEM services include private-label branding on cabinet panels, custom packaging for direct-to-site delivery, and consolidated shipping across product categories for multi-unit projects. Graphic design support, 3D model generation, and total project solution services are available for specifiers developing complete laundry room fit-outs.
