Handmade Undermount Wet Bar Sink – cUPC Certified Single Bowl

Compact Form, Real Function

Why a Bar Sink, Not a Second Kitchen Sink

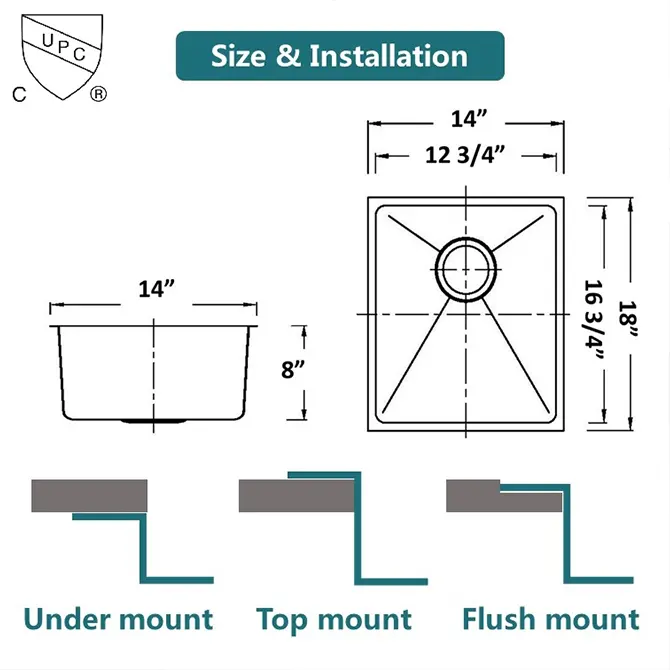

A wet bar sink is not a scaled-down kitchen sink — it serves a different purpose. Installed in a kitchen island, a home bar counter, or a hospitality suite beverage station, it handles glass rinsing, ice dumping, and small-ware cleaning without occupying the footprint of a full-size basin. The HA03646’s 380 × 440 mm exterior fits inside a standard 450 mm cabinet, leaving counter surface on both sides for a beverage faucet, an ice bucket recess, or a cutting board.

Bowl Depth and Practical Use

At 230 mm, the bowl is deeper than most bar sinks in this size class — the category average is 180–200 mm. The extra depth means a tall pint glass can be rinsed without splashing over the rim, and a small stock pot or ice bucket can be set inside without protruding above the counter line. For bartenders and caterers, this depth is the difference between a functional prep sink and a decorative basin that can’t handle real work.

The X-Drainage Geometry

How It Works

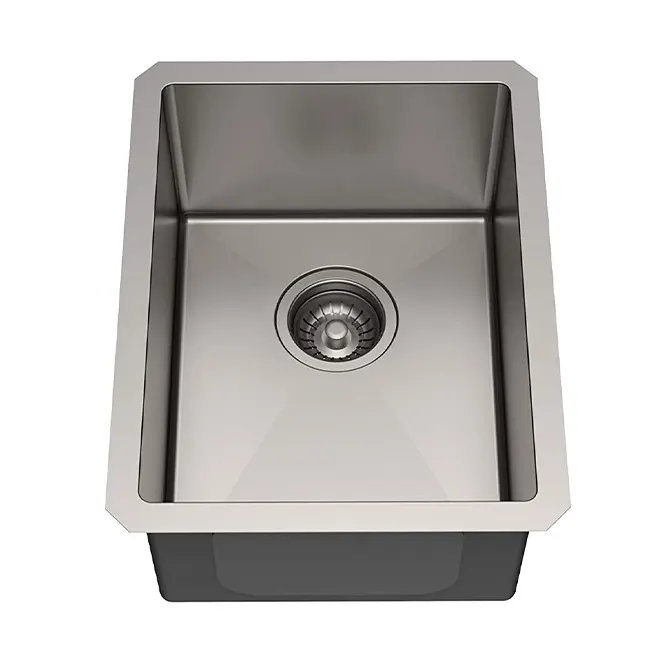

The basin floor is pressed into a four-plane pitch — two ridges crossing at the center, forming an X. Water flows along any of the four slopes toward the drain opening at the intersection point. This design drains a full basin in under 30 seconds, and — critically — leaves no standing water in the corners where bacteria can develop.

Comparison to Flat-Bottom Basins

Flat-bottom bar sinks hold a film of water across the entire basin floor after use. That water evaporates slowly, leaving mineral deposits and soap residue that require wiping after every use. The X-pitch on the HA03646 eliminates this problem: the basin is dry within seconds of the faucet being turned off, and the only surface that needs regular wiping is the basin wall.

Handmade Construction Details

What “Handmade” Means in This Context

Machine-drawn sinks are pressed from a single sheet of stainless steel in one hydraulic operation — fast, consistent, but limited to relatively shallow draws and uniform wall thickness. The HA03646 is handmade: the basin walls are bent by hand from a flat sheet, and the corners are TIG-welded and ground smooth. This process allows for tighter corner radii (R10 versus R25 on drawn sinks), which increases the usable basin volume by approximately 8% in the same external footprint.

Wall Thickness and Rigidity

The 1.2 mm (18-gauge) wall thickness provides rigidity without the weight penalty of 16-gauge material. The sink weighs 4.2 kg — light enough for a single installer to position during undermount installation, but thick enough that the basin walls do not flex when a heavy pot is set down.

Corner Radius Options

While R10 is standard, the handmade process allows custom corner radii: R0 (sharp commercial-style corners), R15, R19, or R25. For bar installations where visual cleanliness matters more than basin volume, R15 or R19 softens the basin geometry for a more integrated look with modern countertop materials.

Sound and Condensation Control

Five Soundproofing Pads

The underside of the HA03646 carries five sound-dampening pads — one on the basin floor and one on each of the four walls. These pads are adhered with a heat-resistant contact adhesive that maintains bond integrity up to 120°C. The pads absorb the vibration of water impact, reducing the hollow metallic report that is the primary acoustic complaint with stainless bar sinks. In a residential kitchen island installation, this means the sink does not broadcast every glass rinse to the adjacent dining or living area.

Anti-Condensation Coating

A sprayed anti-condensation coating covers the entire underside of the basin. In undermount installations, the air gap between the sink and the cabinet bottom can reach dew point when cold water fills the basin — condensation drips onto the cabinet floor, causing swelling in MDF or particleboard cabinetry. The coating absorbs this moisture and releases it through slow evaporation, protecting the cabinet structure.

Mounting Flexibility

Undermount — The Primary Configuration

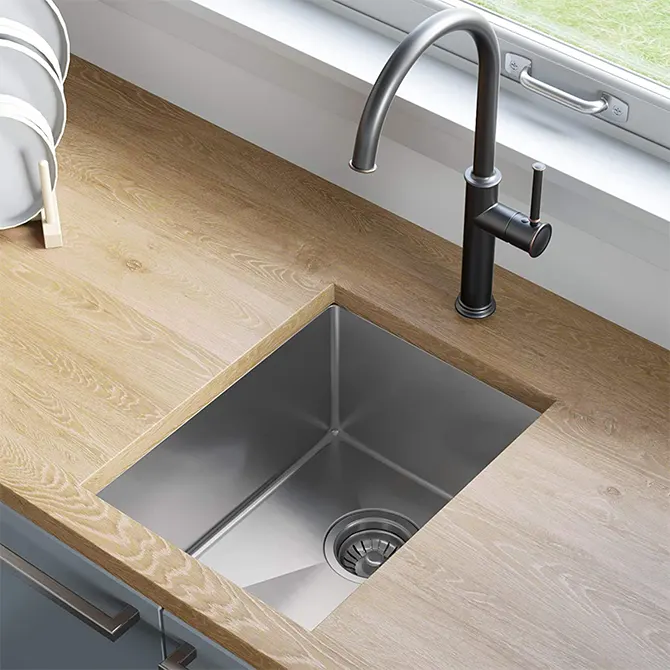

The HA03646 is designed for undermount installation: the sink mounts beneath the countertop cutout, with the counter material (granite, quartz, solid surface, or butcher block) forming the top rim. This configuration maximizes usable counter space — there is no sink rim protruding above the counter — and allows the user to sweep crumbs or liquid directly from the counter into the basin without catching on a lip.

Flush-Mount Compatibility

The sink can also be installed flush-mount (also called tile-in), where the rim sits level with a tiled counter surface. This requires a coordinating trim kit and is most common in commercial bar installations where the counter material is ceramic or porcelain tile. The 1.2 mm rim is machined to a flat profile that supports both mounting methods.

Sizing for Bar and Island Installations

Cabinet Compatibility

The 380 × 440 mm exterior footprint fits inside a standard 450 mm (18-inch) base cabinet — the most common cabinet size specified for bar and beverage sink installations. The minimum cabinet interior width required is 400 mm, allowing 10 mm of clearance on each side for mounting hardware.

Beverage Station Layouts

In typical wet bar configurations, the HA03646 is paired with a beverage faucet (gooseneck or wall-mount style) and positioned adjacent to an undercounter refrigerator or wine cooler. The 230 mm basin depth accommodates standard wine bottles for chilling and rinsing, and the compact footprint leaves sufficient counter surface for a built-in ice maker or a cocktail prep area.

Hospitality Applications

Hotel suites, executive office pantries, and club lounge beverage stations use bar sinks at this scale. The cUPC certification and commercial-grade 304 stainless construction mean the sink can handle both residential use patterns and the higher-frequency use of a hospitality environment without the surface degradation that lighter-gauge residential sinks show after 2–3 years of daily service.

cUPC Certification: What It Means

Plumbing Code Compliance

cUPC (certified Uniform Plumbing Code) certification means the HA03646 has been tested and listed by IAPMO (International Association of Plumbing and Mechanical Officials) for compliance with UPC standards. This covers: drain fitting dimensions (3.5-inch basket strainer compatible), overflow protection (if specified), material safety (no lead or contaminants leaching into water), and structural integrity under normal installation loads.

Why It Matters for Installation

In many U.S. and Canadian jurisdictions, a plumbing fixture without cUPC certification cannot pass rough-in inspection. For contractors and builders, specifying a cUPC-certified sink avoids the situation where a building inspector requires the fixture to be removed and replaced. For distributors and showrooms, cUPC listing is a sellable specification point that simplifies the sales conversation with contractors who need code-compliant product.
