Underbar Sink for Bars, Cafés, and Beverage Stations

Behind almost every cocktail bar, coffee counter, or juice stall sits a low-profile stainless fixture nobody notices until it’s missing: the underbar sink. Unlike a back-of-house kitchen sink, this unit is sized to slide beneath a standing bar top, between beer coolers and speed rails, giving bartenders a legal three-compartment wash-rinse-sanitize sequence in a footprint most kitchens would consider undersized on purpose.

Bar Compliance: Why Three Compartments Matter to Health Inspectors

Most municipal food codes in the US, EU, and Gulf states require a documented wash-rinse-sanitize sequence for any surface touching a customer’s glass or utensil. A single bowl fails that requirement outright; a two-bowl unit forces staff to combine steps inspectors expect separated. Ordering the 3-compartment underbar configuration from the outset avoids a mid-build compliance rejection that has stalled more than one bar opening we’ve supplied.

Compact Footprint Engineering

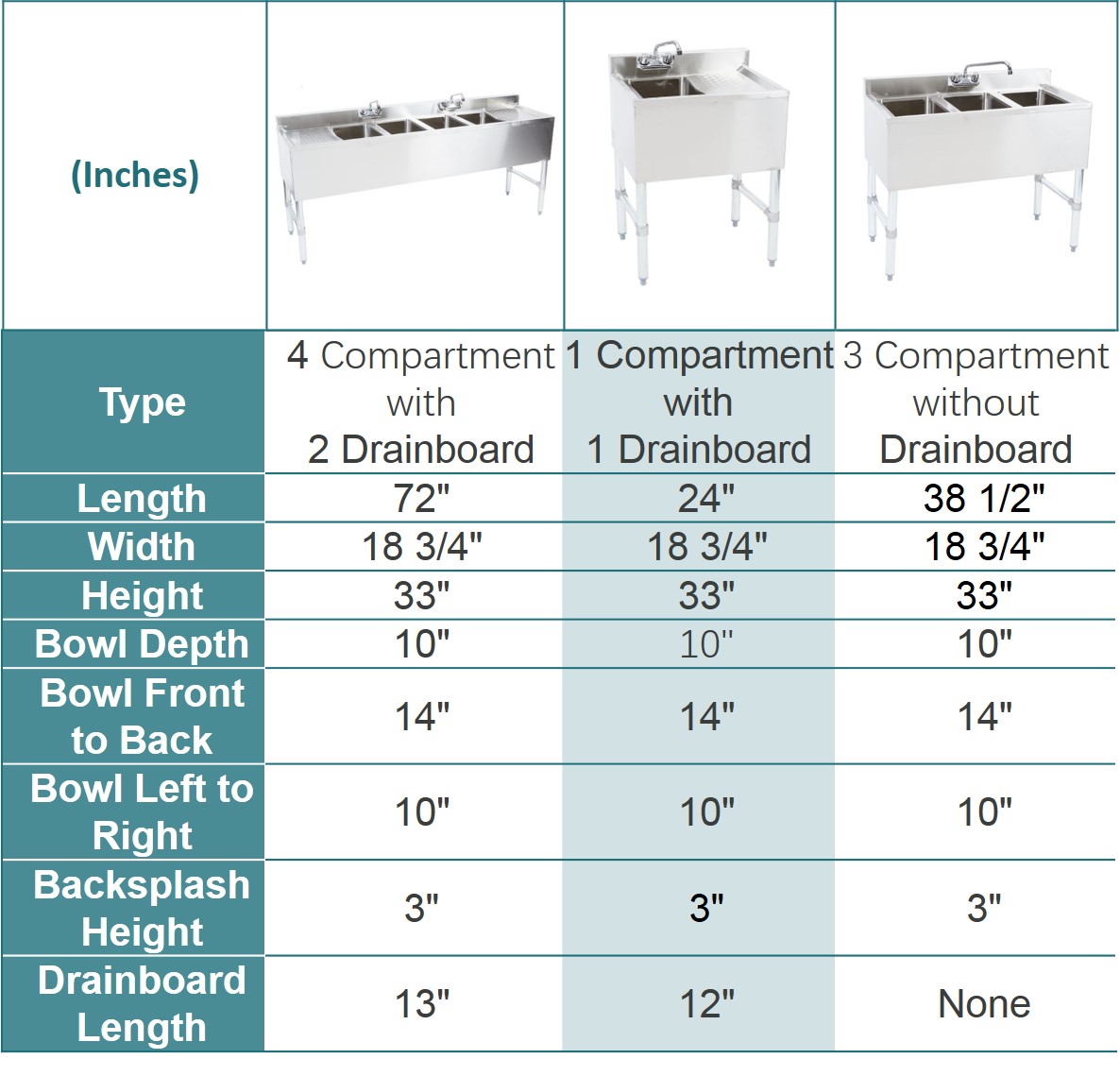

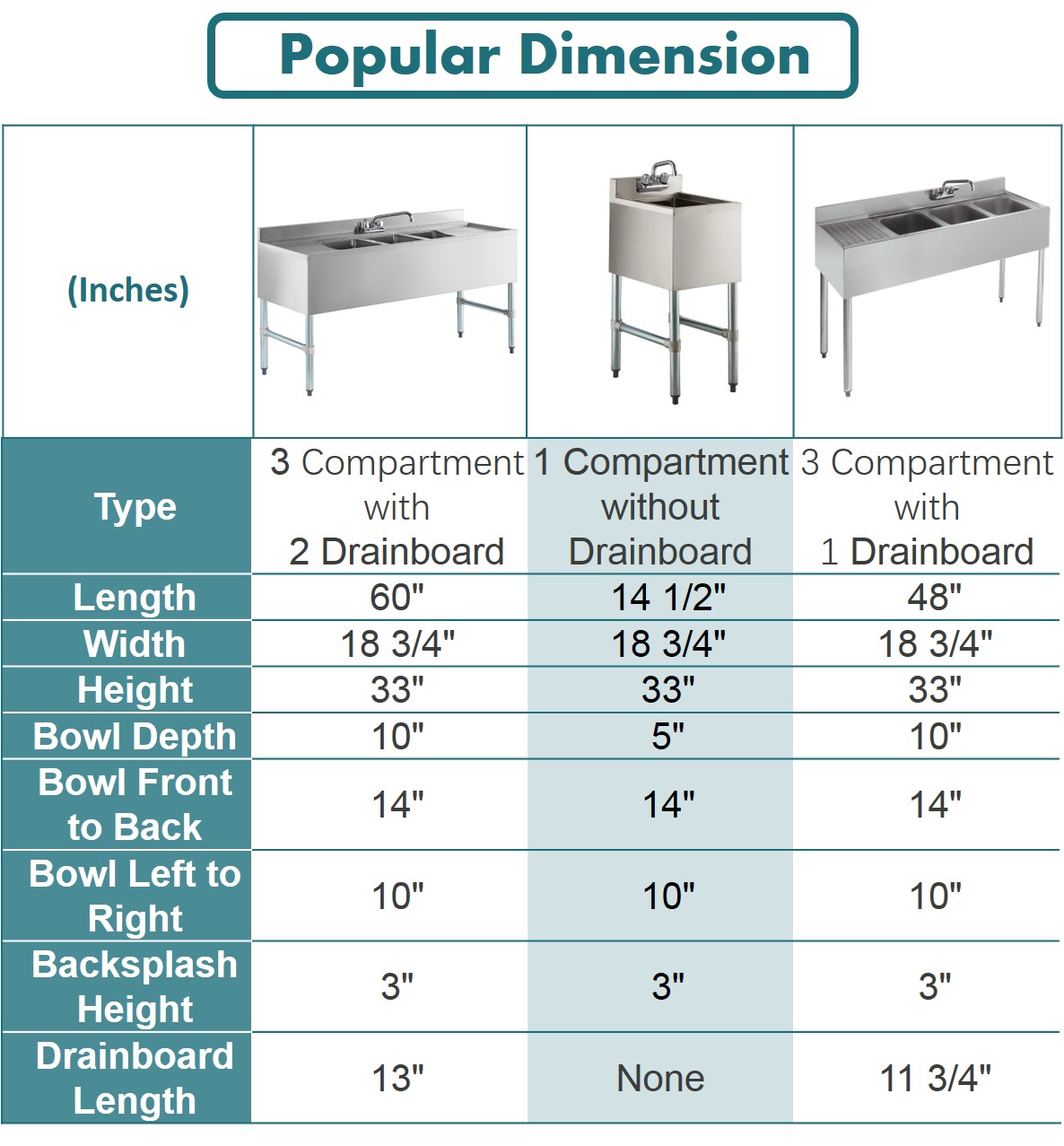

Standard underbar dimensions run around 60″×18¾″×33″, deliberately shallower and lower than a floor kitchen sink so it tucks beneath standard 42-inch bar counters with clearance for ice bins and glass racks above. Bowl depth stays at 300mm — deep enough for tall glassware, shallow enough that the unit doesn’t protrude past the counter edge into walkway space.

Bowl and Drainboard Configuration Options

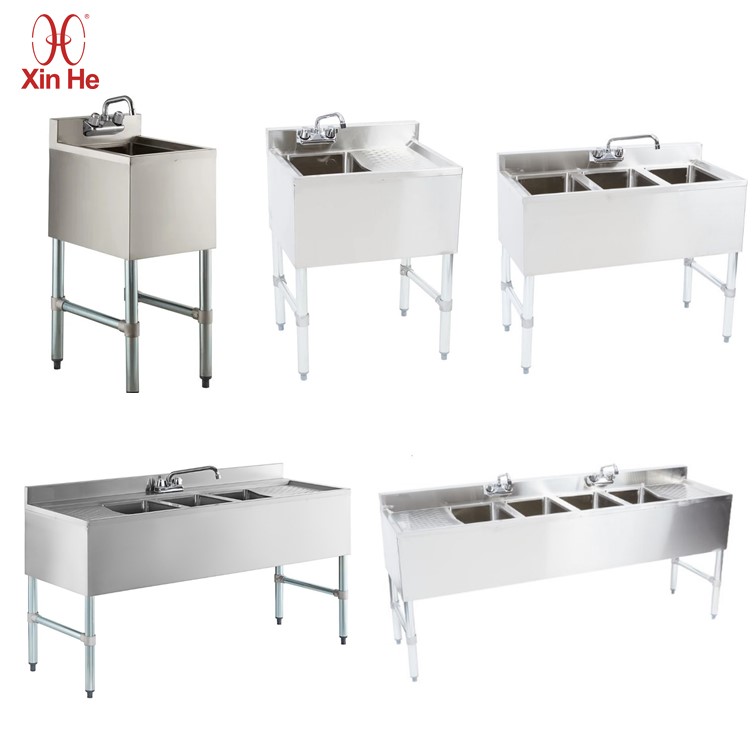

Single, Double, and Triple Bowl Layouts

Coffee shops and small juice bars typically specify a single or double-bowl underbar sink for basic rinse duty; full-service cocktail bars order the 3-compartment version to meet code and separate glass wash from ice-tool cleaning.

Drainboard Placement

A single left- or right-side drainboard, or dual drainboards flanking a center bowl bank, keeps clean glassware off the working surface during rush service — a detail bar contractors specify early because retrofitting drainboards after installation isn’t practical in a fixed run of underbar units.

Material Grade and Corrosion Resistance

We fabricate every underbar sink from 1.0–1.5mm 304-grade stainless steel with a reinforced bottom pan, standing up to constant citrus acid exposure, ice-melt moisture, and daily bleach sanitizing without pitting — a failure point common in thinner 201-grade underbar units sold by generic equipment resellers.

Accessory and Faucet Integration

Pre-rinse faucets (hot/cold), soap dispensers, and drain assemblies mount directly during fabrication rather than as field add-ons, and buyers can choose bullet feet for fixed installs or stem casters with side-brake for bars that reconfigure their back-bar layout seasonally.

Project Sourcing for Bar Contractors and Fit-Out Firms

Bar equipment contractors and hospitality fit-out firms across the Middle East, Southeast Asia, and Europe typically source underbar sinks as part of a full back-bar package alongside ice bins and speed rails. We support this with full-dimension customization — send your bar-run drawing and we manufacture the underbar sink, ice bin, and glass rack to align lengths, rather than forcing your contractor to shim mismatched stock units.

Lead Time and Order Volume

Standard underbar configurations ship in roughly 20–30 business days; fully custom lengths or non-standard bowl counts run 30–60 days. MOQ starts at 5 units, suited to both single-location bar builds and multi-unit hospitality group rollouts.
