Double Bowl Kitchen Sink with Integrated Drying Tray in 304 SS

Integrated Drying Tray Design

Drainage Slope Engineering

The drying tray surface is set at a 2-3 degree slope toward the basin, creating a gravity-driven path for water to flow from washed dishes back into the sink rather than pooling on the tray or running onto the countertop. The slope is engineered into the metal during fabrication, not added as an afterthought, which means the drainage angle is consistent across the entire tray surface and does not flatten under load when heavy cookware is placed on it.

A shallow channel runs along the tray-to-basin junction, collecting water and directing it into the nearest basin drain. This channel is recessed below the tray surface, preventing water from spilling over the sink rim onto adjacent countertops. For kitchen designers specifying this kitchen sink with tray in compact layouts, the integrated drainage eliminates the need for a separate drainboard or countertop drainage area.

Tray and Bowl Connection

The drying tray is fabricated as a continuous extension of the sink body, not a separate component bolted or welded onto a standard double-bowl unit. This one-piece construction means there are no seams between the tray and basin, no joint where corrosion can initiate, and no structural weakness where the connection could fail under load. The tray surface matches the basin’s brushed finish, providing visual continuity across the entire sink unit.

Double Bowl Configuration

Wash and Prep Separation

The two basins allow separation of tasks: one bowl for washing with detergent, the other for rinsing or food preparation. The divider between basins extends to the full 230mm depth, preventing water cross-over between bowls. Each basin has its own drain assembly with strainer, allowing independent drainage control.

For catering commissaries and food truck kitchens where the sink with drying tray serves as the primary cleaning station, the dual-bowl format supports the wash-rinse separation required by health inspectors without occupying the footprint of a three-compartment sink.

Bowl Depth and Capacity

Each basin provides 230mm of usable depth from rim to drain, accommodating standard cookware including saucepans, frying pans, and mixing bowls. The basin floor uses an X-pattern design with four sloped planes converging at the drain opening, which directs water and food particles toward the strainer rather than allowing pooling in basin corners. This X-drainage pattern reduces the residual water left in the basin after draining, minimizing standing water that can harbor bacteria.

X-Drainage System

The X-pattern basin floor is formed by pressing four angled planes into the basin bottom during fabrication, creating a low point at the drain location. Water flows along these planes toward the drain, carrying food particles and debris with it. Compared to flat-bottom basins where water pools until the drain is opened, the X-drainage system empties the basin surface more completely, which reduces drying time and bacterial growth on the basin floor.

For buyers in markets with strict food safety inspection regimes, the self-draining basin floor is a functional feature that supports compliance with health code requirements for proper drainage in food preparation sinks.

Handmade 304 SS Build

The HDB10544 is hand-welded from 1.2mm Type 304 stainless steel. The handmade process allows the integrated drying tray to be fabricated at custom widths, as the tray dimension is determined during bending rather than fixed by a stamping die. The 304 grade provides corrosion resistance against acidic food residues and chlorinated cleaning agents, verified through material test certificates supplied with each shipment.

The brushed satin finish is applied uniformly across basins, drying tray, and sink rim, creating a continuous surface appearance. The finish resists scratching from cookware placed on the drying tray and does not require periodic resealing or coating maintenance.

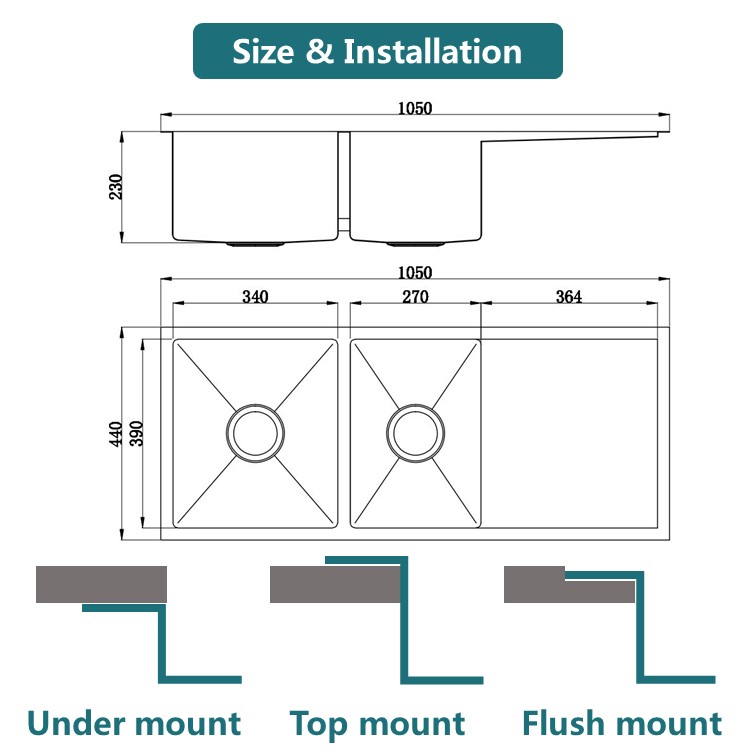

Installation Flexibility

Undermount

The HDB10544 can be installed as an undermount unit, mounting beneath a solid surface countertop (granite, quartz, stainless steel) with the rim hidden below the counter edge. This installation creates a continuous surface from countertop to drying tray, which is specified in kitchen designs where visual continuity is a priority.

Flush Mount

Flush mount installation sets the sink rim level with the countertop surface, creating a seamless transition that is easy to wipe down. This method requires a countertop with a routed edge profile and is common in European kitchen installations where minimal rim exposure is preferred. The HDB10544 can also be top-mounted (drop-in) for laminate and tile countertop compatibility.

Accessory Integration

The drying tray reduces the need for separate accessories, as washed items air-dry directly on the integrated surface. For items that require elevated drying, a stainless steel draining rack can be placed on the tray surface, with the rack feet positioned on the tray’s raised ridges to maintain airflow beneath dishes. Additional accessories include basin grids, basket strainers, colanders, and cutting boards sized to the basin dimensions.

For project procurement, the reduced accessory requirement simplifies sourcing and inventory management. The integrated drying tray replaces the separate dish rack, drainboard mat, and countertop drying area that a standard double-bowl sink configuration would require.

Application Scenarios

This kitchen sink with tray is specified in compact residential kitchens where counter space does not accommodate a separate dish rack, galley kitchens in boats and recreational vehicles where every centimeter of surface area is functional, food truck and mobile catering kitchens where the sink unit serves as the complete cleaning station, and small café and bakery prep areas where the integrated drying surface supports workflow efficiency.

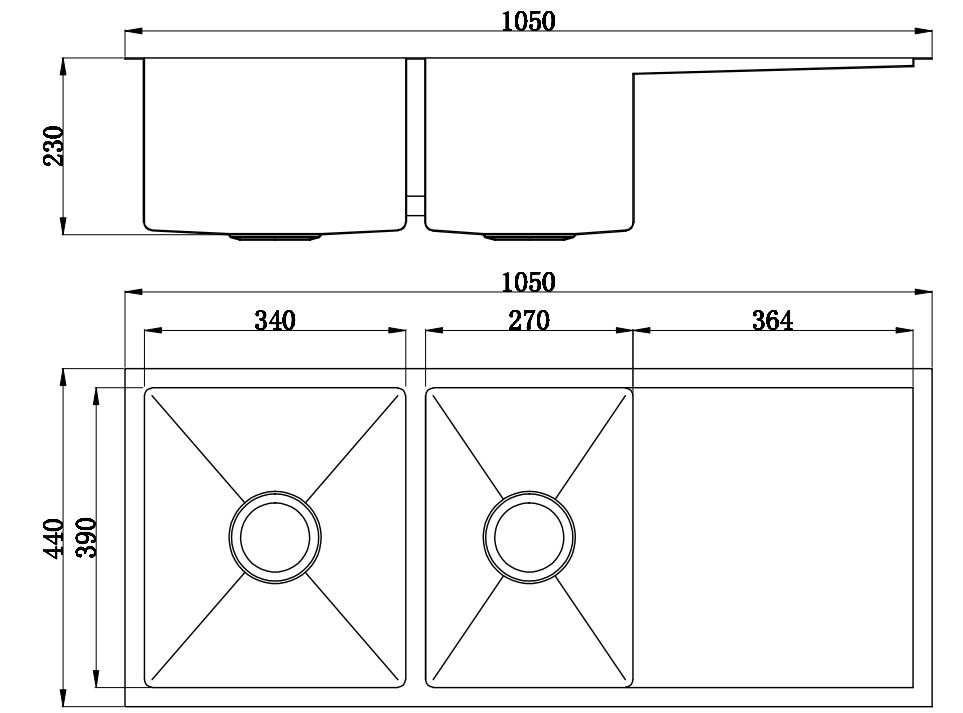

For kitchen outfitters and fit-out contractors serving the urban apartment market in European and Southeast Asian cities, the HDB10544’s integrated design reduces the total footprint required for dish washing and drying, allowing more counter space to be allocated to food preparation. The unit’s 1050mm width fits standard 1050mm cabinet openings, and custom widths are available for non-standard cabinet layouts.
