Undermount Triple Bowl Kitchen Sink for Multi-Station Workflows

Three-Zone Workflow Configuration

Wash, Rinse, and Sanitize Stations

Health department protocols in commercial food service require separation of washing, rinsing, and sanitizing steps. This triple bowl kitchen sink addresses that requirement structurally rather than through sequencing. The left basin handles detergent washing, the center bowl serves as a rinse station, and the right basin holds sanitizing solution. Each zone drains independently through its own strainer assembly, preventing residue migration between stations.

For procurement managers evaluating sinks against local health codes, the three-basin layout maps directly to the three-compartment sink requirement mandated by most U.S. and European food safety regulations. The cUPC certification documentation confirms compliance with Uniform Plumbing Code standards, which project buyers can reference in bid packages and specification sheets.

Asymmetric Bowl Sizing

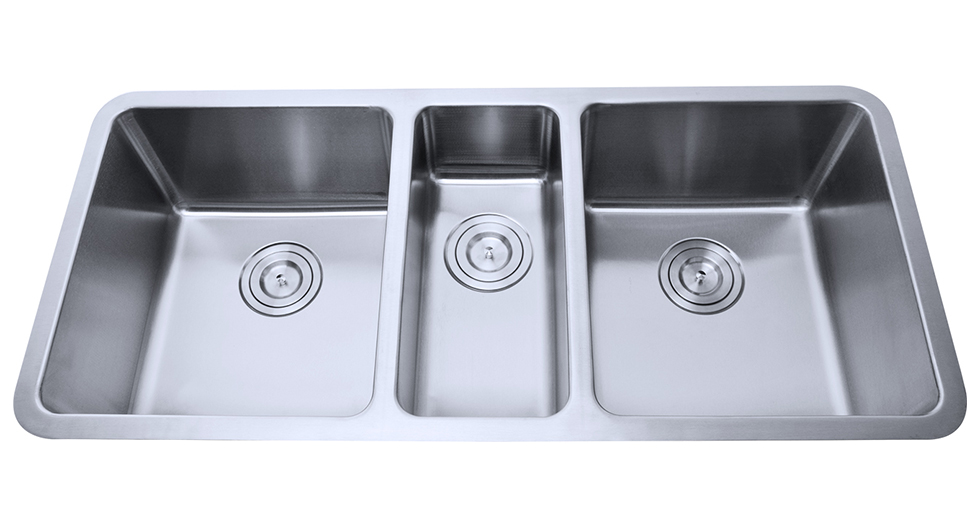

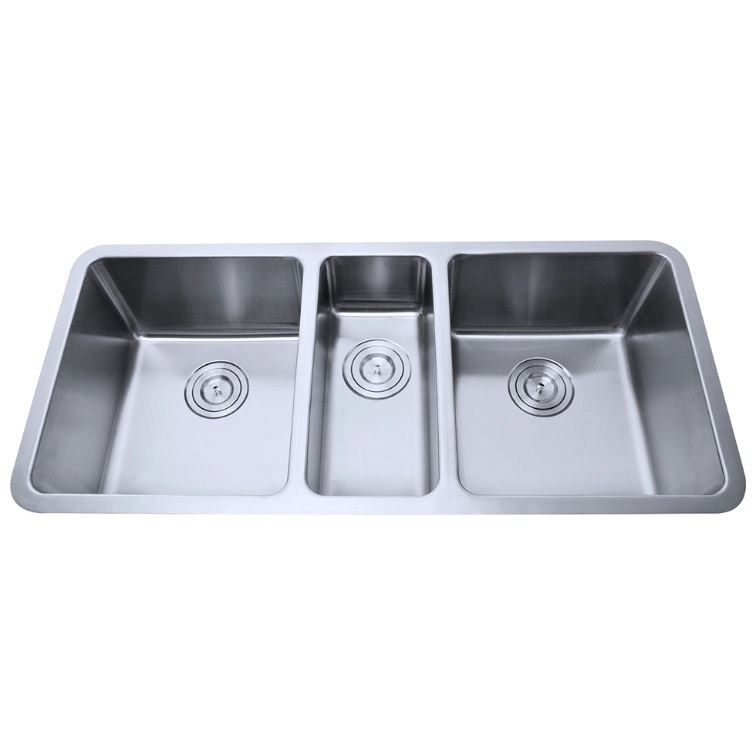

Unlike equal-bowl triple sinks, the LT49-09946 uses an asymmetric layout: two 356×406mm basins for full-size pots and pans, and a narrower 178×406mm center bowl optimized for rinsing utensils or filling sanitizer containers. This configuration reduces water consumption in the center zone while maintaining full-depth capacity (228mm) across all three bowls. The asymmetric design also means the sink fits within a standard 991mm cabinet opening, making it viable for kitchen renovations where counter width is constrained.

304 Stainless Steel Construction

Material Grade and Gauge

The sink body is fabricated from Type 304 austenitic stainless steel, containing 18% chromium and 8% nickel. This composition provides corrosion resistance against acidic food residues, chlorinated sanitizers, and hard water deposits. The material is sourced as cold-rolled coil with a 2B finish before brushing, ensuring consistent surface quality across production runs.

For buyers comparing quotes from multiple manufacturers, the 304 grade designation is verifiable through material test certificates (MTC) provided with each shipment. Xinhe supplies MTC documentation per batch, along with SGS inspection reports when requested for project compliance files.

Corrosion and Heat Resistance

Type 304 stainless steel maintains structural integrity up to 870°C in intermittent service. In kitchen environments, this means the sink withstands contact with hot cookware, boiling water discharge, and steam without warping or surface degradation. The chromium oxide passive layer self-repairs when scratched, providing ongoing corrosion protection without additional coating or treatment.

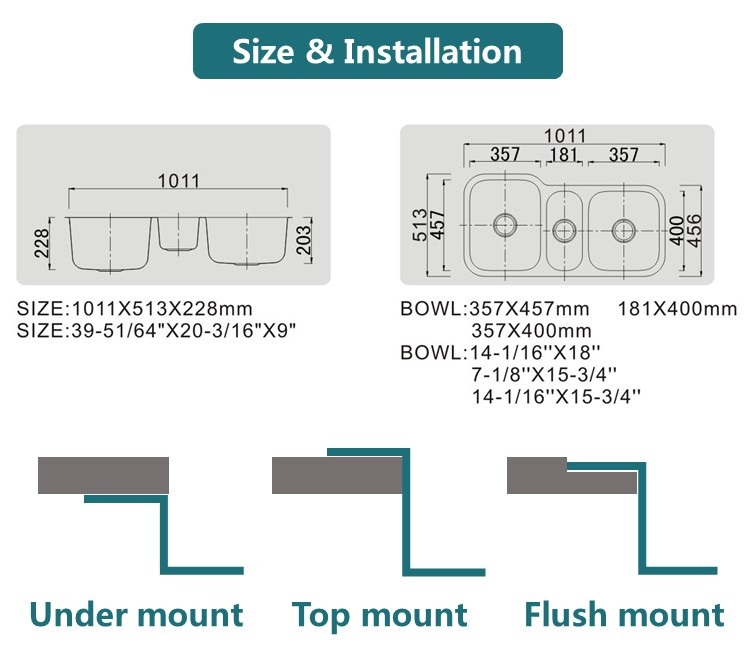

Undermount Installation Profile

Countertop Integration

The undermount configuration mounts beneath the countertop, creating a continuous surface from counter to basin edge. This installation eliminates the rim lip where food debris accumulates in topmount sinks, supporting sanitation requirements in commercial kitchens. The sink edge is finished with a 90-degree return for solid surface countertops (granite, quartz, stainless steel) and can be specified with a beveled edge for composite materials.

Cabinet Compatibility

Installation requires a base cabinet with minimum 1050mm internal width to accommodate the 991mm external sink dimension plus mounting hardware clearance. Cabinet depth should be 480mm or greater. For project procurement teams specifying kitchen layouts, Xinhe provides CAD drawings and 3D models compatible with standard cabinet design software, streamlining the specification and approval process.

Sound and Condensation Engineering

Commercial kitchen environments generate significant noise from water impact, dishware contact, and garbage disposal units. The LT49-09946 addresses this with five sound-dampening pads adhered to the basin underside, positioned at high-impact zones. The pads reduce resonance by absorbing vibration before it transfers through the sink body to the cabinet structure.

A spray-applied undercoating on the exterior surfaces manages condensation. When cold water fills the basin in a warm, humid kitchen, the temperature differential causes moisture to form on the sink bottom. The undercoating absorbs this condensation, preventing water from dripping onto cabinet bases and subflooring. This protection extends cabinet service life in high-humidity climates such as Southeast Asia and the Middle East, where ambient humidity accelerates cabinet deterioration.

Customization for Project Requirements

Size and Bowl Configuration

While the standard LT49-09946 dimensions suit most commercial applications, Xinhe offers custom sizing for projects with non-standard cabinet layouts. Bowl widths can be adjusted to accommodate specific workflow requirements, such as a larger wash basin for bakery applications or a deeper center bowl for high-volume rinsing. Custom drawings are produced from project specifications within 5-7 business days.

Accessory Integration

Optional accessories include stainless steel grid systems sized to each basin, basket strainers with removable debris cups, cutting boards fitted to basin rims, colanders, and drain pipe connectors. For project procurement, accessories can be bundled into a single SKU to simplify receiving and inventory management across multiple installation sites.

Applications Across Project Types

This three-basin configuration is specified in restaurant kitchens where health code requires a three-compartment washing station, hotel banquet back-of-house areas handling high-volume dishware turnover, university and corporate cafeteria kitchens, catering commissaries, and institutional food service facilities. Residential applications include luxury estate kitchens where the homeowner requires commercial-grade food preparation capability.

For distributors and kitchen equipment suppliers serving the hospitality sector, the LT49-09946 fills the product gap between standard double-bowl residential sinks and full commercial three-compartment units. Its undermount profile and brushed finish allow it to integrate into visible kitchen designs while meeting commercial workflow requirements.

Certifications and Code Compliance

Each triple bowl kitchen sink carries cUPC certification, confirming compliance with the Canadian and U.S. Uniform Plumbing Code. This certification is a prerequisite for commercial kitchen installations in most North American jurisdictions. For European projects, CE documentation is available. Australian buyers can request WaterMark certification data. NSF/ANSI 61 compliance documentation is supplied upon request for institutional projects requiring drinking water system component certification.

Project buyers writing this sink into specifications can reference the cUPC listing number in bid documents. Xinhe provides certification copies with commercial shipments, not as marketing claims but as compliance documentation required for inspection sign-off.
