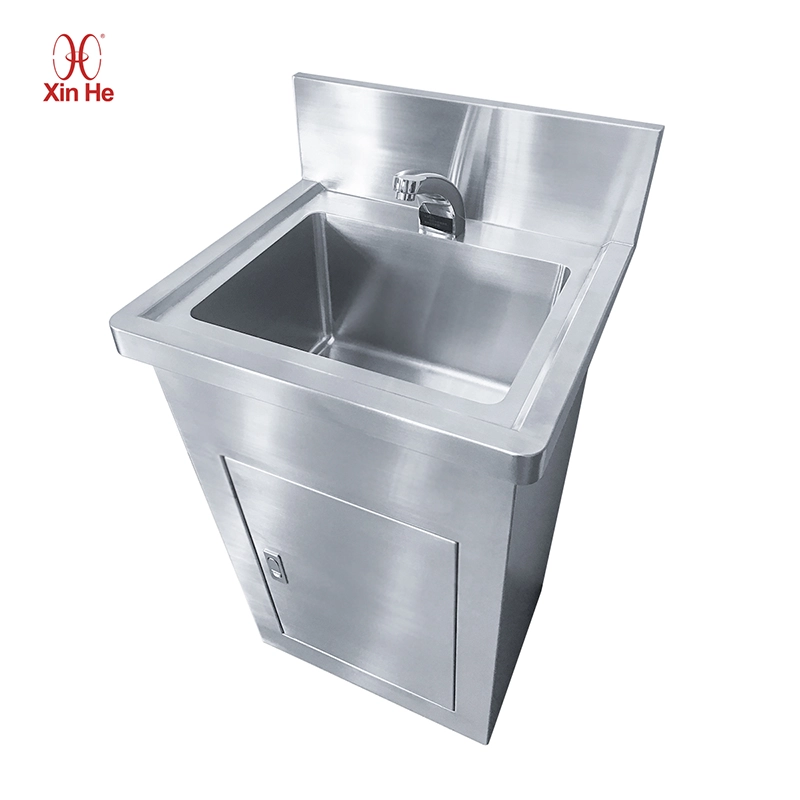

304 Stainless Steel Pedestal Hand Wash Sink with Sensor Faucet

A Freestanding Alternative to Wall-Mounted Hand Wash Stations

Not every handwashing installation can rely on a wall to carry the sink. In retrofit projects, modular building interiors, container clinics, and facilities with partition walls that lack structural backing, a wall-hung basin is either impossible or requires costly reinforcement. The PDS01 solves this by moving the structural support to the floor: a square stainless steel pedestal carries the basin weight, conceals the plumbing, and provides an internal cabinet space — all without requiring a single wall anchor.

This freestanding configuration also changes how the sink is positioned in a room. Because it does not depend on wall plumbing rough-ins, the PDS01 can be placed against a partition, in the center of a handwashing zone, or in a row with other pedestal units — connected via floor-mounted supply and drainage lines. For project planners working with flexible or temporary layouts, this placement freedom is a practical advantage over fixed wall-mounted basins.

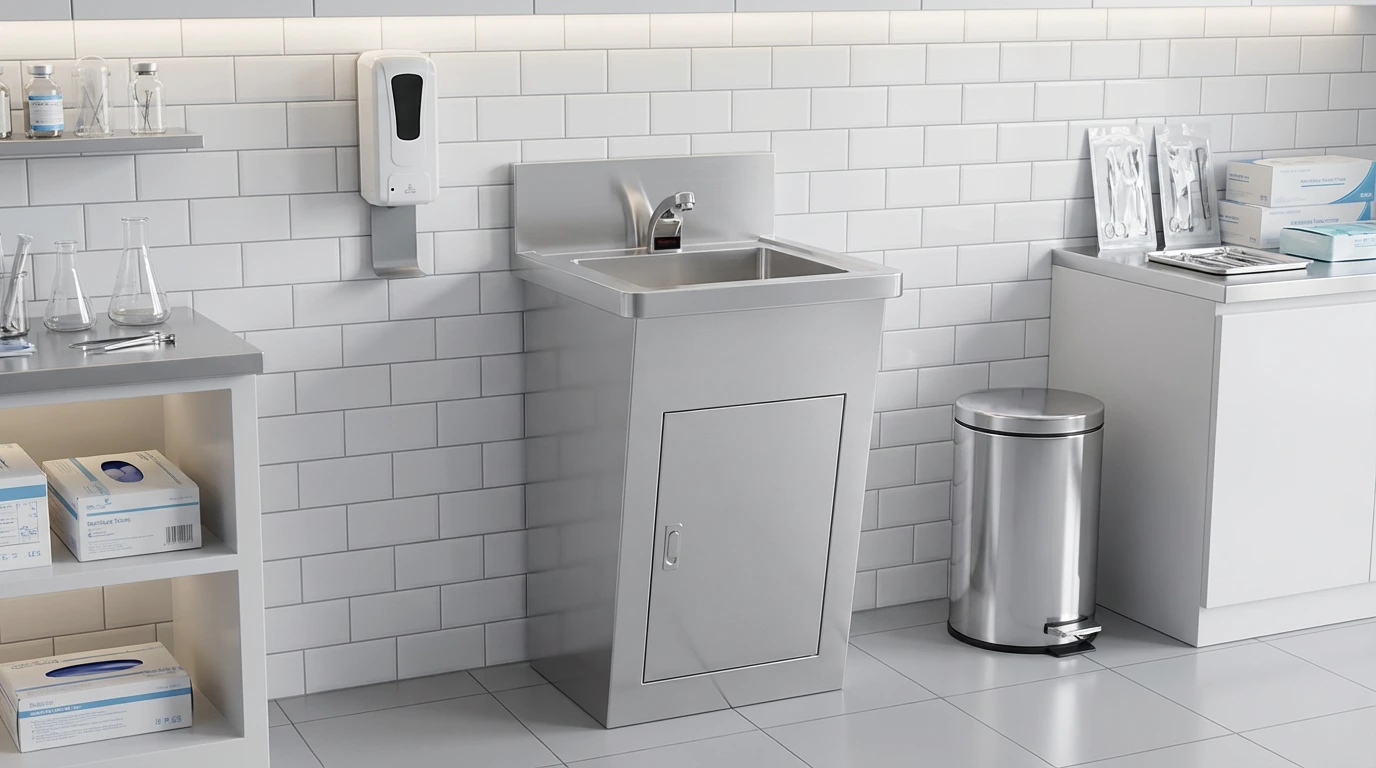

Touch-Free Sensor Faucet System

AC and Dual-Mode Power Options

The sensor faucet operates on infrared activation, starting water flow when hands enter the sensing zone and stopping when they leave. Two power configurations are available: a standard AC-powered version for facilities with reliable mains power, and a dual-mode version that combines AC power with a battery backup. The dual-mode option is specified for hospitals and laboratories in regions where power interruptions are common — the battery maintains faucet operation during outages, ensuring that handwashing is never interrupted by a grid failure.

Cross-Contamination Reduction in Shared Handwashing Areas

The touch-free activation eliminates the faucet handle as a contact surface. In shared handwashing stations — where multiple staff members, patients, or visitors use the same basin throughout the day — the sensor faucet removes one of the most frequently touched surfaces in the handwashing workflow. This is particularly relevant in hospital entrances, food-processing changing rooms, and laboratory entry zones where the sink serves as a hygiene checkpoint rather than a surgical scrub station.

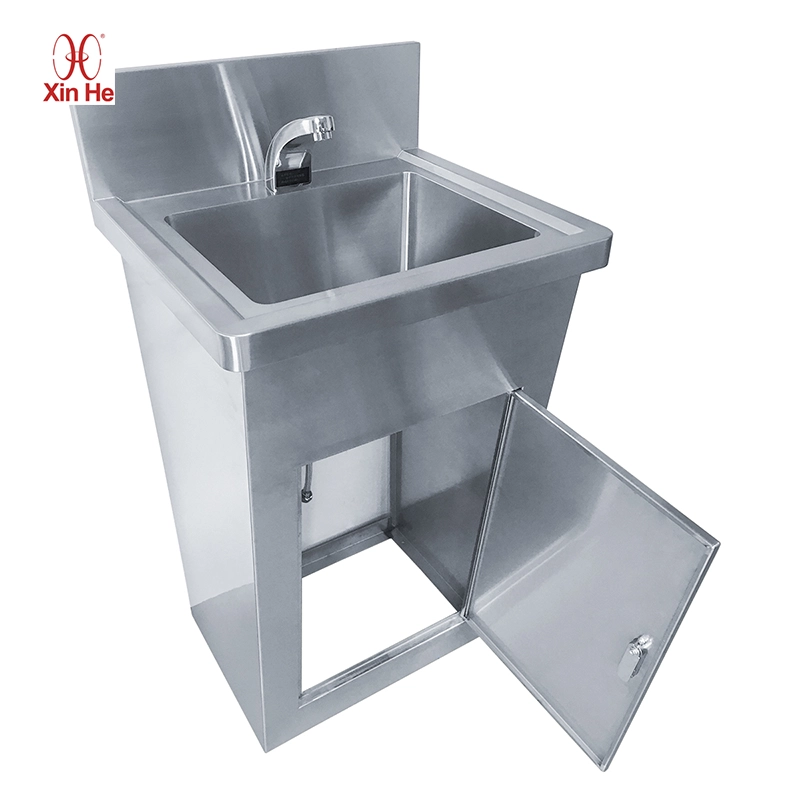

Pedestal Cabinet and Access Door Functionality

Plumbing Maintenance Access

The pedestal body includes an openable front door that provides direct access to the supply lines, drain, and faucet control module. In wall-mounted sinks, plumbing access typically requires removing the basin or cutting into the wall — both disruptive and time-consuming. The PDS01’s access door allows a maintenance technician to reach all plumbing connections by simply opening the cabinet, performing repairs or replacements, and closing the door. This design reduces maintenance downtime and eliminates the need for wall demolition during routine service.

Internal Storage for Cleaning Supplies

Beyond plumbing access, the cabinet interior provides enclosed space for storing cleaning supplies, spare parts, or hygiene consumables. In facilities where storage space is limited — particularly in compact clinic rooms, laboratory entry zones, and public restroom areas — this integrated storage reduces the need for separate supply cabinets near the handwashing station. The cabinet door is fitted with a discreet pull handle and can be specified with a locking option for securing stored items in public-access environments.

Where This Sink Belongs — Application Mapping

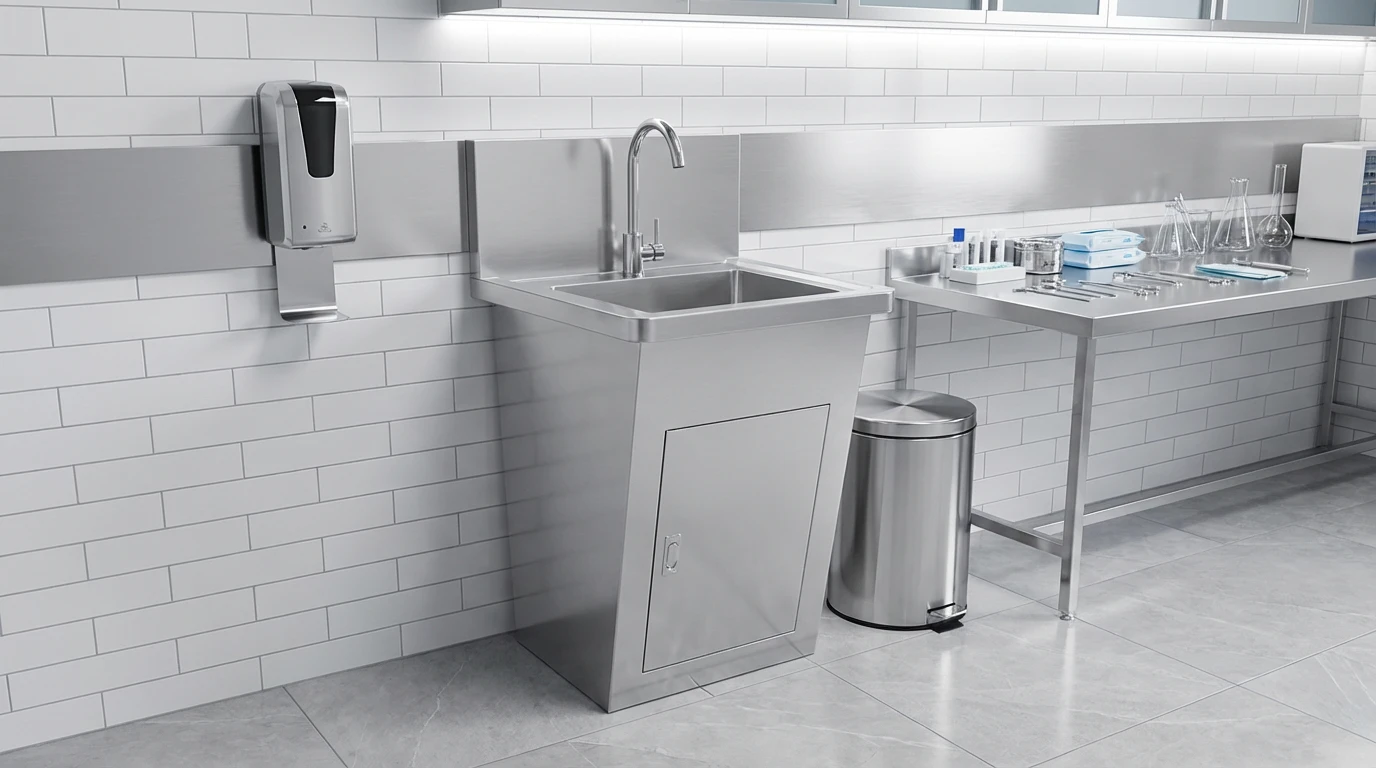

Medical and Laboratory Handwashing

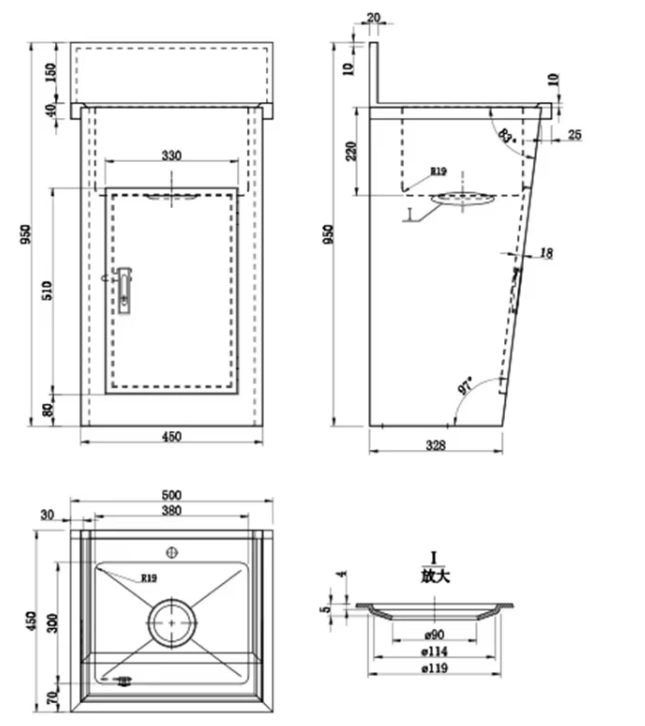

The PDS01 is configured for handwashing in medical and laboratory settings where the requirement is thorough hand hygiene rather than full surgical scrubbing. Hospital ward entrances, outpatient clinic handwashing points, laboratory gowning areas, pharmaceutical cleanroom entry zones, and food-processing handwash stations are all appropriate placements. The 950 × 500 × 450mm footprint fits into spaces where a full scrub sink would be oversized, while the sensor faucet and stainless steel construction meet the hygiene standards expected in these environments.

Public and Commercial Facility Placement

Beyond medical facilities, the PDS01 serves public and commercial handwashing needs. Airport restrooms, hotel public areas, office building wash zones, school hygiene stations, and park facilities all benefit from a freestanding stainless steel unit with touch-free operation. The pedestal design is vandal-resistant — there are no exposed pipes to damage, and the all-stainless construction withstands heavy public use. For buyers outfitting public facilities in the Middle East and Southeast Asia, where both durability and hygiene are procurement priorities, this model addresses both concerns in a single unit.

304 Stainless Steel Construction and Hygiene Surface

Full 304 Stainless Steel Body

The basin, pedestal, cabinet door, and internal frame are all fabricated from 304 stainless steel. Unlike units that use stainless steel for the basin but mild steel or coated materials for the pedestal body, the PDS01 maintains material consistency throughout — meaning the entire unit offers the same corrosion resistance, cleanability, and non-porous surface. This matters in environments where the pedestal exterior is exposed to splashes, cleaning chemicals, and physical contact. The 304 grade is standard; 316 is available for coastal or high-chloride environments.

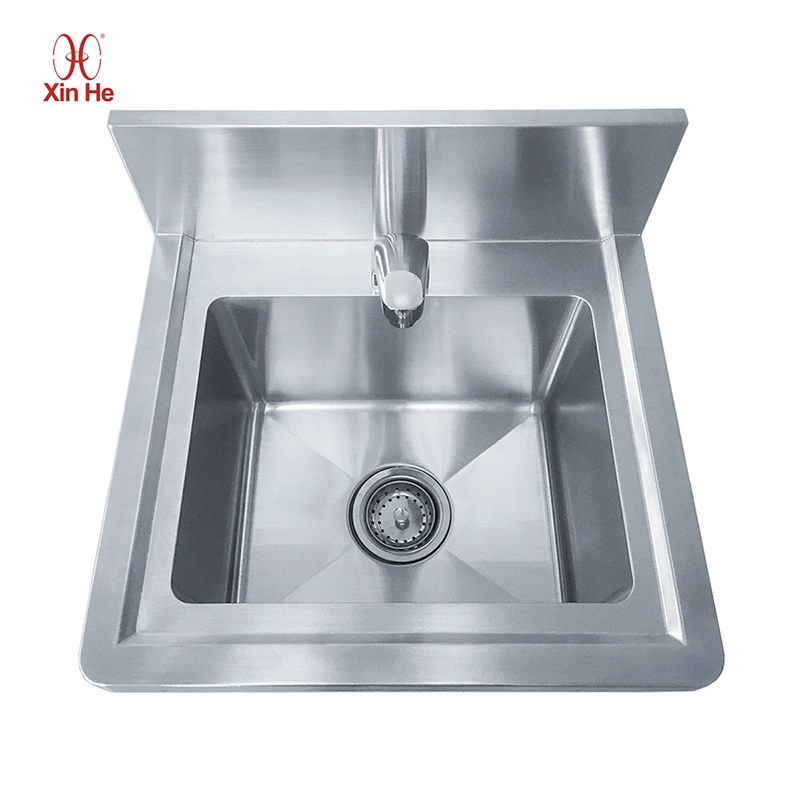

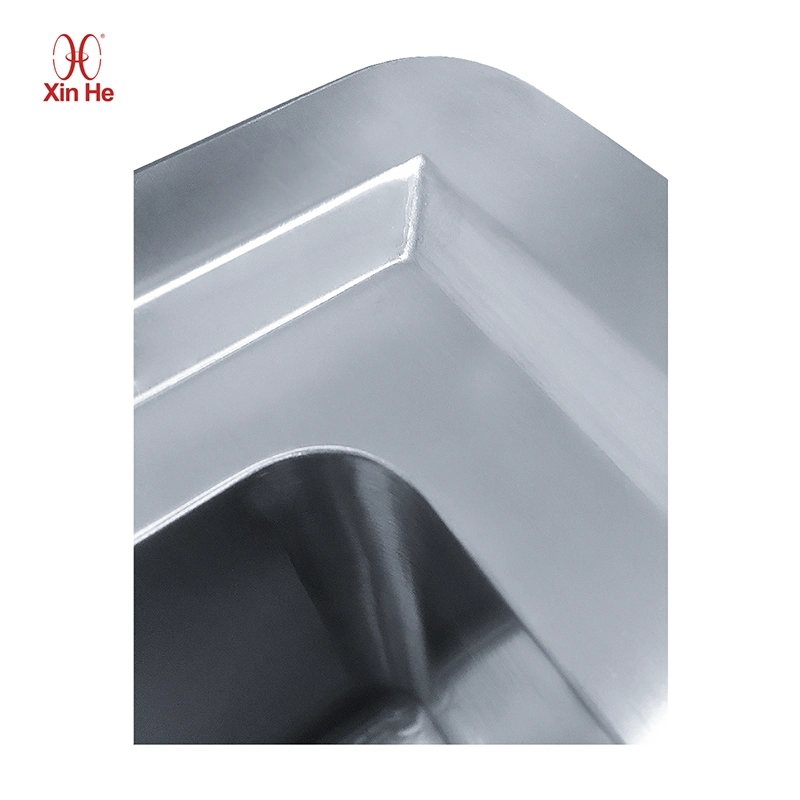

Rounded Basin Corners and Cleaning Protocol

The basin interior features rounded corners at all transitions — a fabrication detail that directly affects daily cleaning efficiency. Sharp internal corners trap organic residue and require scrubbing with brushes to clean thoroughly. Rounded corners allow the surface to be wiped clean with a cloth and disinfectant in a single pass, reducing cleaning time per basin and improving the consistency of hygiene outcomes across multiple units. The smooth brushed surface does not retain water spots as readily as mirror-polished alternatives, maintaining appearance between cleaning cycles.

Buyer and Regional Market Focus

Procurement Managers and Facility Planners

Procurement managers responsible for facility outfitting — particularly in hospital networks, public infrastructure projects, and commercial building developments — are the primary audience for the PDS01. These buyers need a handwashing unit that can be specified across multiple facility types without requiring different installation methods. The freestanding design simplifies procurement: the same model can be used in a hospital ward, a laboratory entry, and a public restroom within the same project, reducing the number of unique SKUs in the purchase order.

Regional Market Considerations

The PDS01 is supplied to buyers across Europe, the United States, ASEAN, the Middle East, and Southeast Asia. In European markets, the 304 stainless steel construction and touch-free operation align with hygiene directives for medical and food-handling facilities. In Middle East and Southeast Asian markets, the freestanding design is valued for its independence from wall structural quality — a practical concern in both new construction and building renovation projects where wall conditions vary. For US buyers, the unit’s compact footprint and sensor faucet configuration fit within ADA-compliant handwashing station designs when specified with appropriate clearances.

Customization Options

The PDS01 supports customization across several parameters to meet project-specific requirements:

• Basin dimensions: The standard 950 × 500 × 450mm can be adjusted in length, width, and depth. Deeper basins are available for facilities that need greater splash containment.

• Cabinet configuration: The access door can be specified on the front (standard) or side. Locking hardware can be added for public-access installations.

• Sensor faucet type: Infrared sensor faucets with adjustable sensing range, flow rate, and timeout duration. AC, battery, or dual-mode power.

• Surface finish: Brushed (standard) or polished. Black and other PVD coatings are available for architectural coordination.

• Plumbing configuration: Supply line entry and drain position can be configured for floor-mounted or wall-connected plumbing.

• Material upgrade: 316 stainless steel for coastal or high-corrosion environments.

OEM and ODM orders are accepted with a minimum order quantity of 5 units. Custom branding, packaging, and documentation are available for distributor programs.
