Weather-Resistant Wall-Mounted Drinking Fountain for Public Exteriors
Model Number: PF01-363229
-

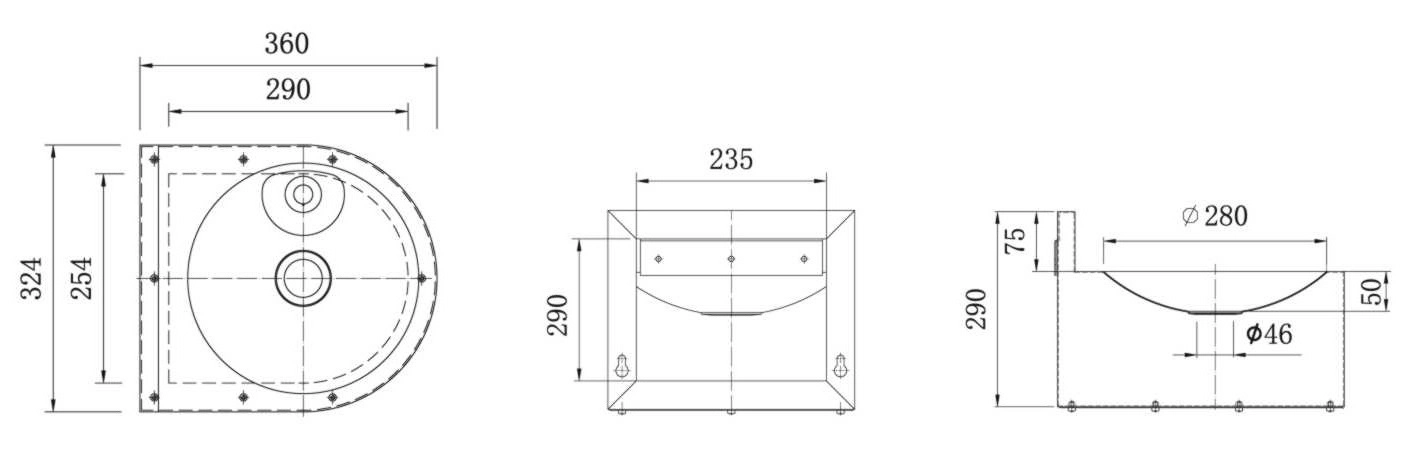

External Dimensions: 360*320*290mm 14.2*12.8*11.4 inch
-
size: Customizable
-
Pelvic gall: φ280*50
-
Material: 304 stainless steel
-
color: primary color

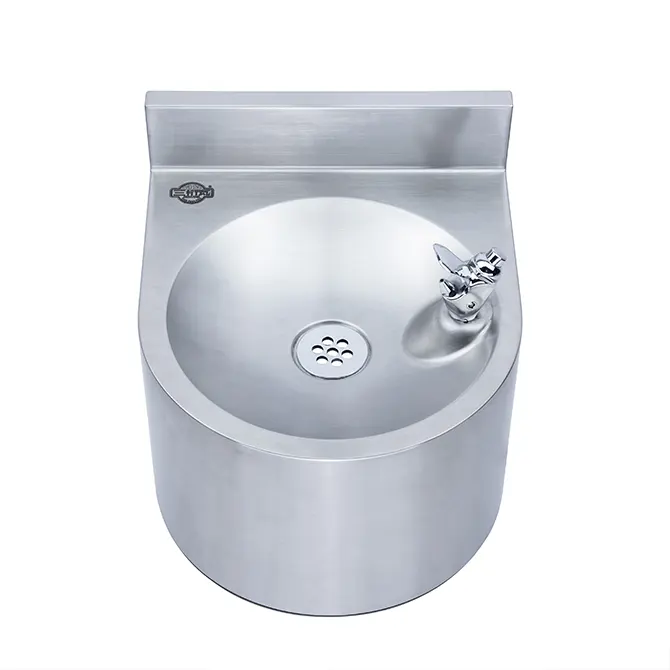

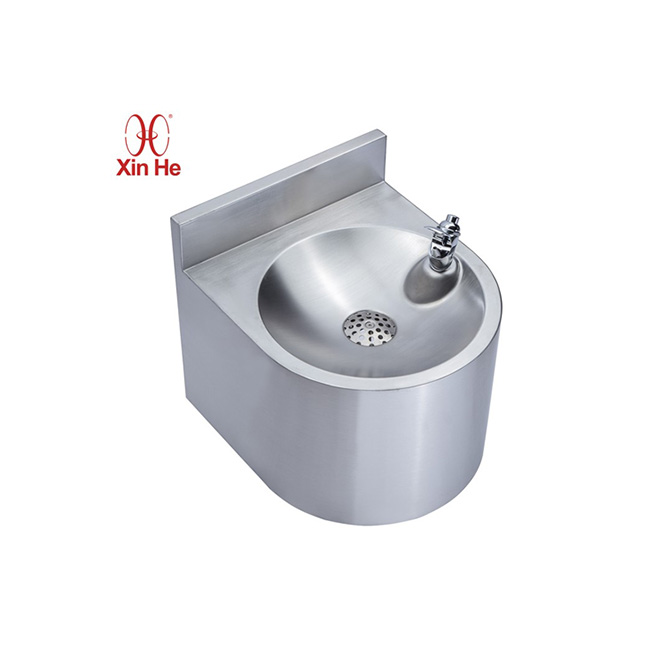

Exterior walls take punishment. Sun, frost, wind-borne grit, and the occasional impact from maintenance equipment all test the durability of public fixtures. This wall-mounted drinking fountain is built for that reality. Its semi-circular body projects only 320 mm from the wall, keeping it clear of pedestrian flow while providing a robust water point for parks, schoolyards, transit stations, and municipal buildings.
Durable
Waterproof
Eco-friendly
Fire Retardant
Pet Friendly
Easy-to-install
Note： Due to contractual agreements, we are unable to sell or ship this product to any country within the European Union (EU), the United Kingdom (UK), or other European regions. Please contact support if you have questions.
The high back splash panel is integral to the bowl, formed from a single sheet rather than welded components. This removes seam failure points where water could seep into the wall cavity. The front edge is rolled and deburred, preventing injury if a child or runner brushes against it at speed.
Outdoor-Grade Materials and Finishes
The standard material is 304 stainless steel with a brushed satin finish. This texture scatters reflected light, reducing glare in bright sunlight and making the unit less visually intrusive against concrete or brick backgrounds. For coastal installations within 5 km of salt water, 316 stainless steel is specified to prevent surface pitting.

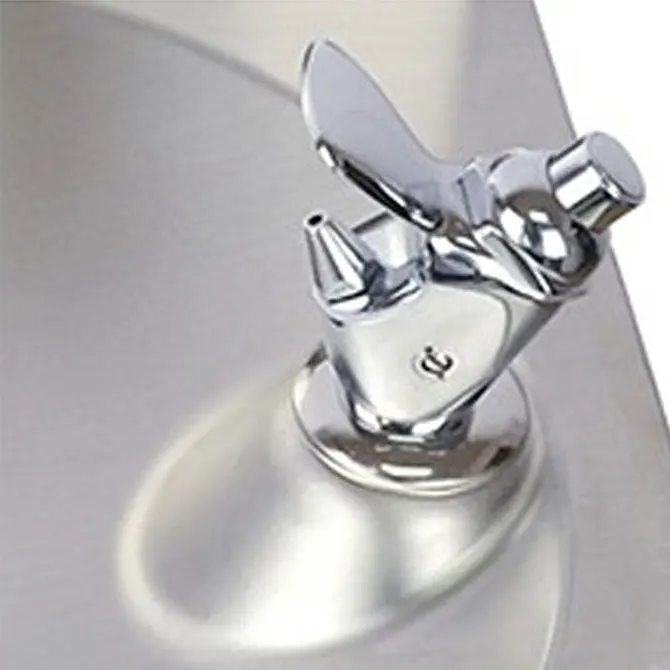

The bubbler valve is a vandal-resistant push-button design with a stainless steel shroud. The button return spring is rated for 500,000 cycles. The water orifice includes a laminar flow insert that produces a smooth, non-splashing stream even at supply pressures up to 0.6 MPa. An internal flow regulator limits output to 1.9 L/min, conserving water without frustrating users.
Mounting and Plumbing Integration

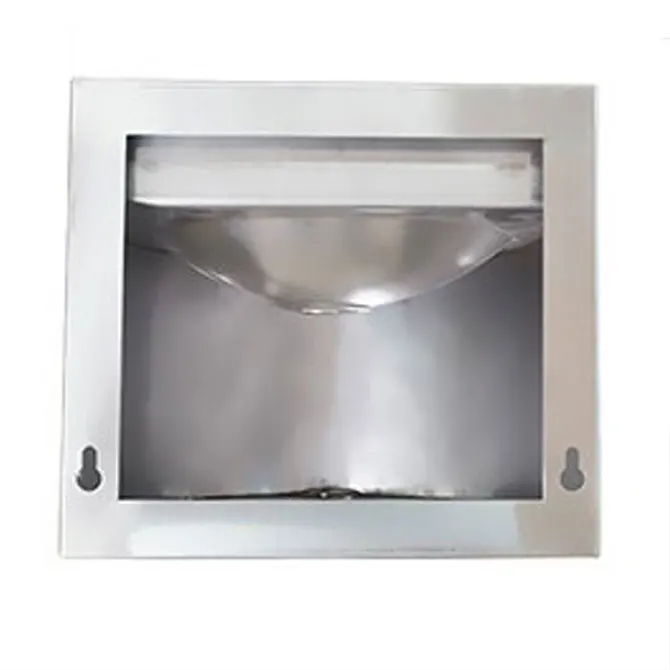

The fountain arrives with a galvanized steel mounting bracket that bolts to the wall through four M10 expansion anchors. The bracket is slotted vertically, allowing ±15 mm adjustment to align the unit after wall surface irregularities. Water supply and drain connections are concealed behind the back panel, with no exposed pipes.
For retrofit projects, the compact dimensions (360 × 320 × 290 mm) allow installation between existing features such as signage, lighting fixtures, or window openings. The minimum recommended mounting height is 850 mm to the bubbler center, matching ADA accessibility standards. In schools with younger children, the unit can be lowered to 750 mm upon request.
Drainage and Winterization
The bowl drain connects to a 32 mm waste pipe with a removable strainer basket. The basket captures leaves, grit, and debris before they enter the plumbing system. Facilities staff can lift it out for cleaning without tools.
This wall-mounted fountain is specified for:
-
Public park restrooms and trailheads
-
School building exteriors and playground perimeters
-
Transit shelter waiting areas
-
Stadium and arena concourse walls
-
Municipal service center exteriors
-
Factory and warehouse break areas
 |
 |
 |
 |
 |
 |
|
Product Name
|
Stainless Steel Drinking Fountain
|
|
Model Number
|
PF01-363229
|
|
Brand Name
|
XINHE
|
|
Place of Origin
|
Guangdong, China
|
|
Application Scenario
|
Outdoor, Office, Park, Hospital, School, Playground, Airport, Station
|
|
Accessories
|
(Optional)mounting clip/faucet/drainer/drain pipes
|
|
Warranty Service
|
5 years
|
|
After-sales Service
|
Online technical support, Return and Replacement, Other
|
|
Material
|
304 stainless steel (201 and 316 stainless steel are also available)
|
|
Size
|
As the sample / Customized
|
|
Color
|
Stainless steel orginal/Black/Gun metal/Gold/Brass/Rose gold/White or as required
|
|
Surface Treatment
|
Polished bowl, Brushed outer frame / Satin
|
|
Installation Type
|
Available In Floor Mounted / Wall Mounted Or Freestanding
|
|
Customization
|
OEM ODM Accecptable
|
|
Certificates
|
CE
|
|
Project Solution Capability
|
Graphic Design, 3d Model Design, Total Solution For Projects, Cross Categories Consolidation, Others
|
|
MOQ
|
5
|
Wall-mounted fountains eliminate ground contact, preventing water pooling around the base and reducing vandalism opportunities (they cannot be tipped or moved). They also require no concrete pad or footing, reducing installation cost and time. However, they need a suitable structural wall and are less flexible if future site reconfiguration is planned.
What is the vandal resistance level of the bubbler valve?
The push-button assembly is encased in a stainless steel shroud that is riveted to the fountain body. The button itself is 12 mm diameter stainless steel with a trapped spring that cannot be removed without tools. The water path is internal, so there is no external spout to bend or break. Field testing has shown the valve withstands repeated hammer blows and levering attempts with common tools.
Can the fountain be powder-coated to match a school’s color scheme?
Yes. We offer polyester powder coating in standard colors (black, white, gray, dark green) and custom RAL matching for orders of 10 units or more. The coating is applied over a zinc-phosphate conversion layer and baked at 200 °C, achieving a pencil hardness of 2H and salt-spray resistance exceeding 1,000 hours.
What is the recommended cleaning protocol for outdoor installations?
Weekly cleaning with mild detergent and water is sufficient in most environments. In coastal or industrial areas with airborne salt or particulates, a monthly rinse with fresh water prevents surface buildup. Avoid chlorine-based cleaners or abrasive pads, as these can damage the passive oxide layer on stainless steel. The strainer basket should be emptied weekly.
Is lead-free certification available for North American projects?
Yes. The stainless steel materials and brass valve components comply with NSF/ANSI 61 and AB 1953 (low-lead) requirements. We provide material certificates and third-party test reports for project documentation. Our manufacturing facility is ISO 9001 certified, and we maintain traceability records for all raw material batches.
What is the lead time for bulk orders?
Key Features:
Material: SUS 304 brushed stainless steel – corrosion-resistant & easy to clean
Design: High-back splash panel with vandal-resistant bottle filler
Functionality: Dual water dispensing – bubbler and bottle filler
Installation: Wall mount with concealed plumbing and drainage
Cooling System: Built-in ventilation for optional refrigeration (if integrated)
Applications: Ideal for schools, gyms, offices, hospitals, parks, and airports
Optional Features:
Touchless sensor operation
Filtered or chilled water
ADA compliant design
Why Choose This Fountain:
This commercial-grade bottle filler drinking fountain offers both convenience and sustainability, encouraging reusable bottle use and
reducing single-use plastic waste in high-traffic public environments.
