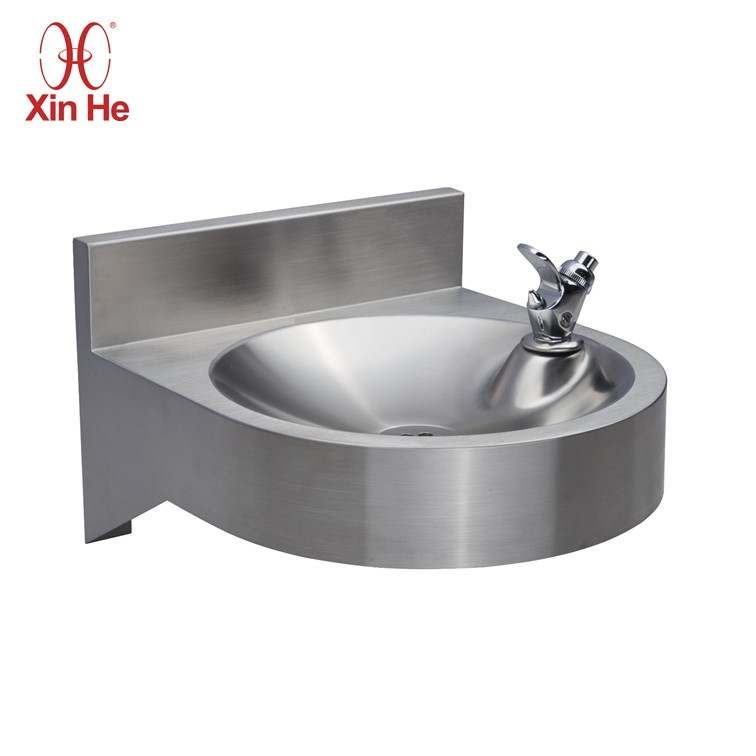

Commercial Drinking Fountain in 304 Stainless Steel Wall Mounted

Note：Due to contractual agreements, we are unable to sell or ship this product to any country within the European Union (EU), the United Kingdom (UK), or other European regions. Please contact support if you have questions.

A Compact Fountain Built to Commercial Plumbing Codes

Meeting UPC and IPC Requirements

Plumbing inspectors in North America reference the Uniform Plumbing Code and International Plumbing Code when approving drinking fountain installations in commercial buildings. This unit is fabricated to satisfy those code expectations: the bubbler arc clears the bowl rim, the push-button operates with less than five pounds of force, and the drain configuration accepts standard trap plumbing. Specifiers submitting this fountain on commercial projects receive submittal documentation that aligns with code-review checklists.

Bowl Geometry and Water Containment

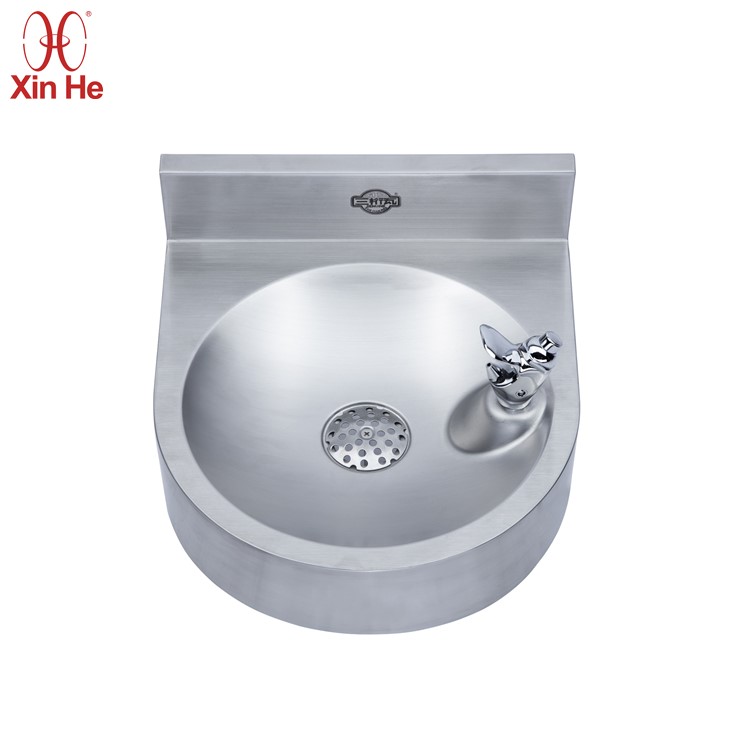

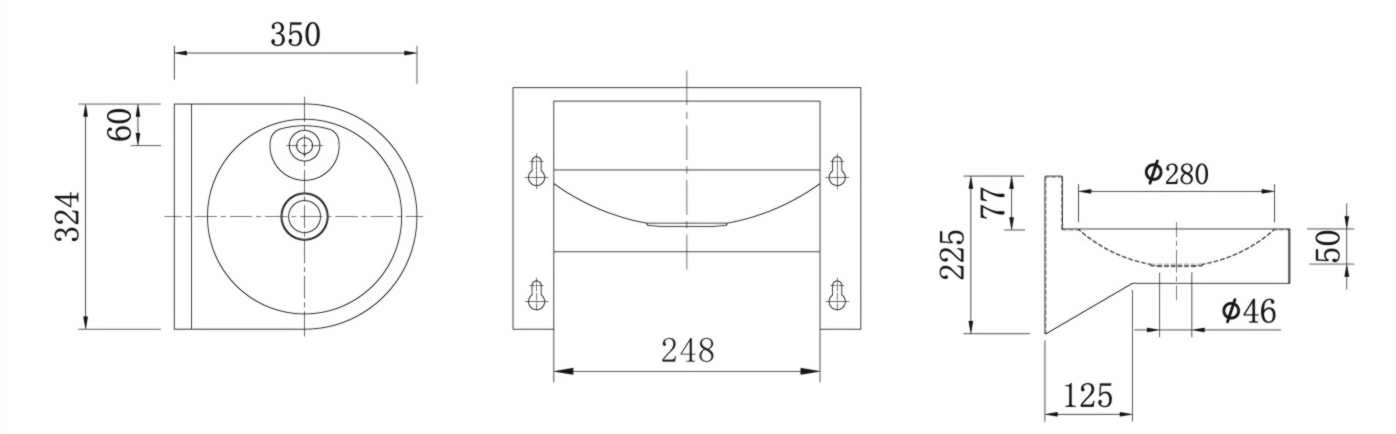

The polished bowl basin measures 280 mm in diameter with a 50 mm depth — dimensions sized to contain the bubbler splash arc and catch runoff without overflowing onto the floor. The bowl’s polished interior surface sheds water quickly and resists the mineral scaling that builds up in hard-water regions. A drain strainer sits flush with the bowl floor, preventing bottle caps and debris from entering the waste line.

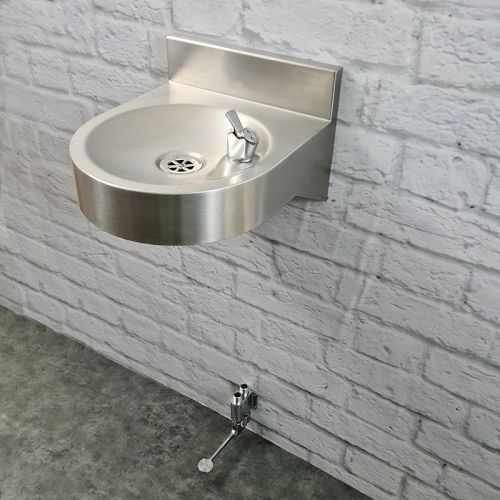

Push-Button Bubbler Mechanics and Hygiene

Activation Force and Valve Design

The push-button valve requires less than five pounds of activation force, a threshold that aligns with accessibility standards for operable parts in public buildings. The valve body uses a stainless-steel stem and a replaceable cartridge that maintenance staff can swap without removing the fountain from the wall. This keeps service downtime to minutes rather than hours in buildings where a single fountain may serve an entire floor.

Bubbler Head and Stream Arc

The bubbler head is machined from stainless steel — not plastic — and produces a laminar stream that arcs above the bowl rim. The stream height is set at the factory but can be adjusted through the valve’s flow regulator during commissioning. A non-squirt design prevents the sideways spray that cheap plastic bubblers produce when water pressure fluctuates, which is a common complaint from facility managers in older buildings with variable supply pressure.

Where Specifiers Deploy This Unit

School and Educational Facilities

School districts specify wall-mounted drinking fountains in corridors, gymnasium entrances, and cafeteria common areas. The compact footprint of this model — 360 mm wide by 324 mm tall — fits in hallway alcoves where larger bi-level units would obstruct traffic. Push-button activation is preferred in elementary and middle school settings where sensor-activated units can confuse younger students.

Office and Institutional Buildings

Corporate facilities teams install this fountain in break rooms, lobby corridors, and near restroom banks where building codes require potable water access within a certain travel distance. The brushed stainless finish integrates with modern commercial interiors without the institutional appearance of older enameled-steel fountains. Hospital facilities departments use this configuration in staff corridors and visitor areas where hygiene and cleanability are daily priorities.

Stainless Steel Grade Selection: 304 vs 316

When 304 Is Sufficient

Type 304 stainless steel is the standard grade for indoor commercial drinking fountains. It resists corrosion from chlorinated municipal water, withstands routine cleaning with standard stainless-safe detergents, and maintains its brushed finish across years of daily contact. For the majority of school, office, and hospital installations, 304 grade delivers the service life that facility budgets require.

When to Specify 316

Type 316 stainless contains molybdenum, which adds resistance to chloride-induced pitting. Specifiers select 316 grade for fountains installed in indoor pool natatoriums, buildings within salt-air coastal zones, or facilities that use aggressive chloride-based cleaning protocols. The upgrade cost is modest relative to the extended service life in these environments, and Xinhe fabricates this model in either grade on request.

Retrofitting and Replacement Scenarios

Swapping Out Aging Fountains

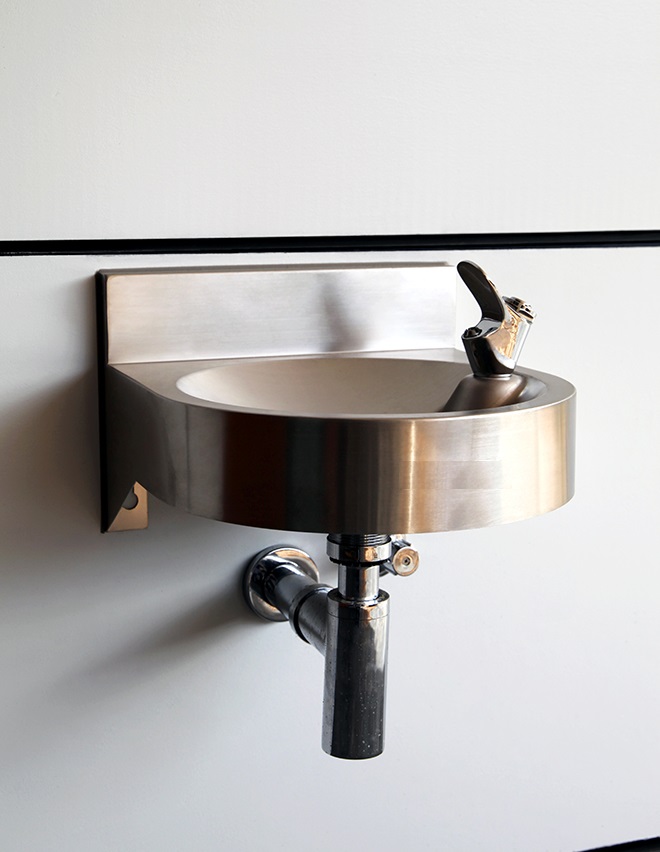

Many commercial building renovations involve replacing drinking fountains that have reached the end of their service life — units with cracked enameled bowls, corroded bubbler heads, or valves that no longer hold pressure. This model’s compact dimensions and standard rough-in spacing allow it to replace older wall-mounted units without reworking the supply and drain locations in most cases. Plumbers disconnect the old unit, mount the new fountain to the existing anchor points, and reconnect to the existing supply and drain stubs.

Rough-In Compatibility

The supply connection accepts a half-inch flexible or rigid supply line, and the drain outlet aligns with standard two-inch waste connections. For projects where the existing rough-in does not match the new unit’s dimensions, Xinhe can adjust the fabrication to match the as-built plumbing layout, eliminating the need for wall demolition and re-piping during fountain replacements.

Compliance Documentation for Project Submittals

What Specifiers Receive

Each order ships with a submittal package containing the model specification sheet, certification documents, and installation instructions. The specification sheet lists dimensions, material grade, valve specifications, and mounting requirements in a format that plumbing engineers can drop directly into project specification sections. Certification documents cover CE compliance and lead-free material verification for potable water pathways.

Warranty and After-Sales Support

Xinhe backs this commercial drinking fountain with a five-year warranty covering manufacturing defects in the stainless fabrication and valve assembly. Replacement valve cartridges, bubbler heads, and drain strainers are stocked and available for order beyond the warranty period. Technical support is available online for maintenance teams troubleshooting valve performance or drain flow issues.

Manufacturing Lead Times and Order Flexibility

Made-to-Order Production

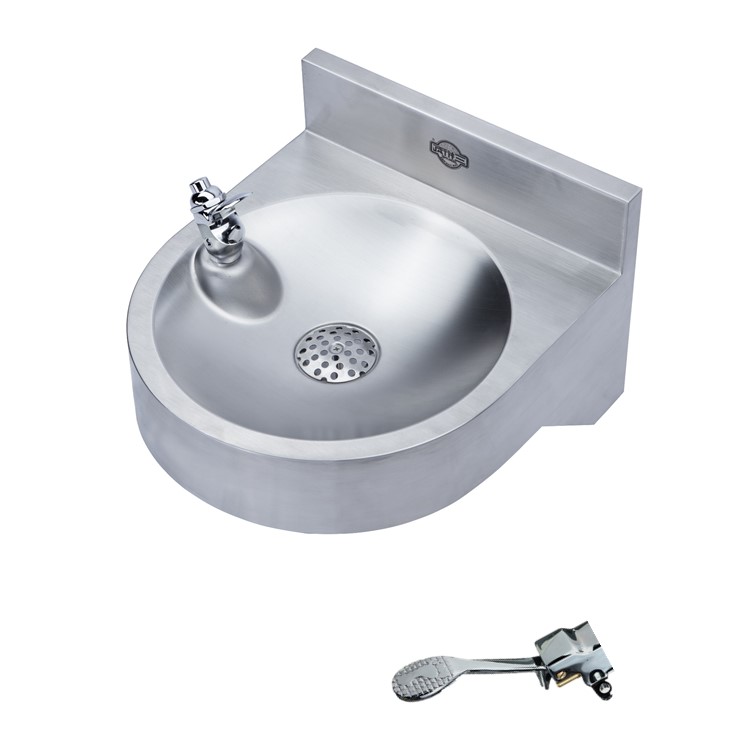

Each fountain is fabricated to order in Xinhe’s Jiangmen, China or Ho Chi Minh City, Vietnam facility. Standard configurations ship within the published lead time, while custom modifications — alternate bowl depths, sensor activation, or 316-grade upgrades — add a brief engineering review period. There is no minimum order quantity for modifications, so a single custom unit for a pilot installation costs the same engineering attention as a thousand-unit project.

Project Consolidation and Shipping

For distributors and project procurement teams ordering multiple fountain models alongside other stainless products — sinks, work tables, or public sanitary ware — Xinhe consolidates shipments to reduce freight costs and simplify customs clearance. Consolidated orders ship from a single origin, arrive together, and carry unified documentation for the entire package.
