ADA Compliant Outdoor Drinking Fountain with Dual Head and Pet Bowl

Serving Three Users From One Pedestal

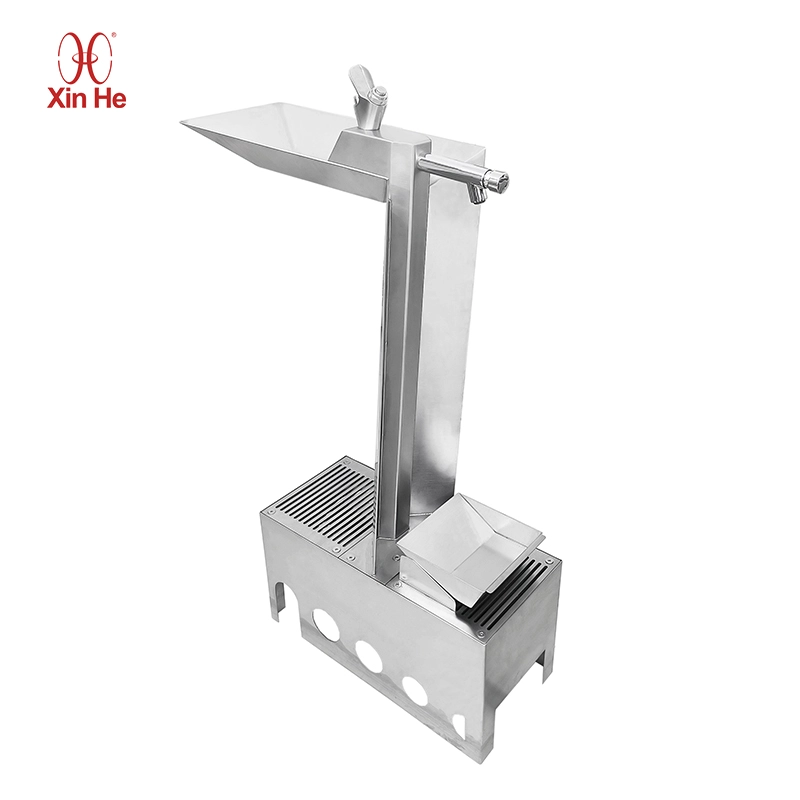

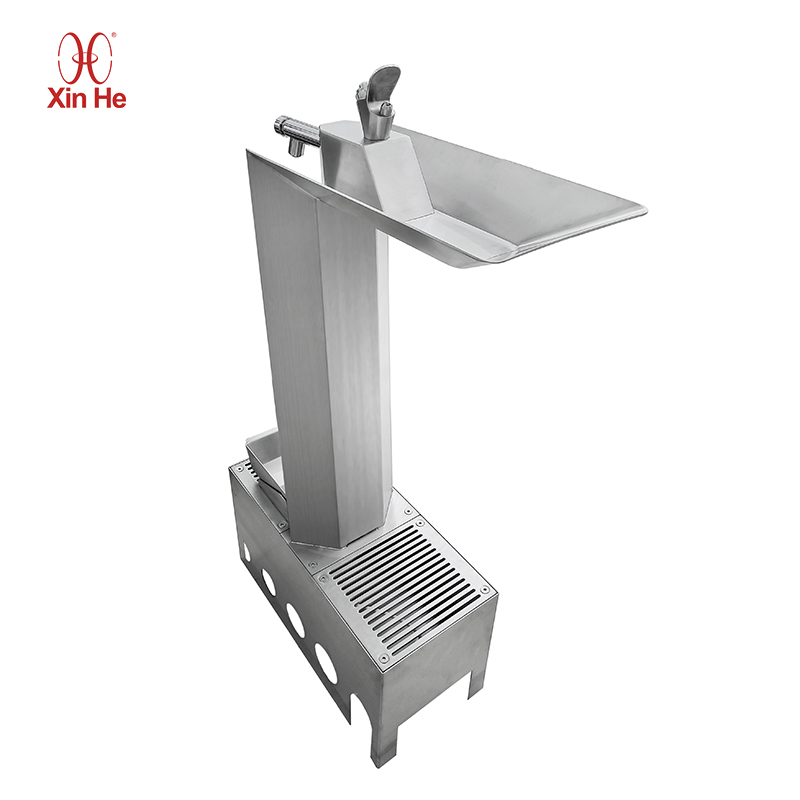

Most outdoor fountains force a choice: install one for adults, one for wheelchair users, or one for pets. The dual head drinking fountain removes that choice. Two spouts sit at different heights on a single brushed-satin column, and a removable pet basin anchors the base. A wheelchair user, a standing adult and a leashed dog can drink within the same footprint, which matters in parks and plazas where installing multiple units is not practical.

The design also reduces ground clutter. Landscape architects working on tight municipal budgets often specify one multi-user pedestal where two or three single-spout units would otherwise be needed. That means fewer plumbing connections, fewer drain lines and fewer points of vandalism to maintain.

ADA Compliance and Dual-Height Accessibility

Wheelchair-Height Spout Specifications

The lower spout is set so the water arc lands within the reach range defined for forward-approach wheelchair access. When the unit is mounted to grade, the lower bubbler meets the spout-height and knee-clearance expectations that ADA compliance drinking fountain standards describe. This makes the pedestal suitable for civic projects in the United States where ADA compliance is a tender requirement, and for European and ASEAN projects that reference EN 301549 or equivalent accessibility guidance.

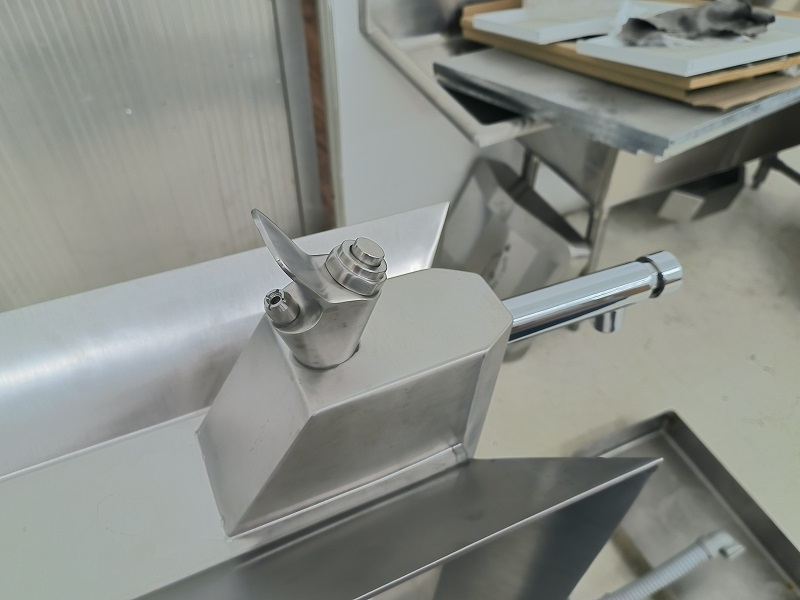

Standing-Adult Bubbler Position

The upper spout serves ambulatory users at a conventional drinking height. Separating the two spouts vertically — rather than angling one spout to serve everyone — keeps the water stream clean for each user and avoids the splash-back that single-angled spouts produce when a taller person leans down.

The Integrated Pet Bowl Design

Tilt-and-Drain Cleaning

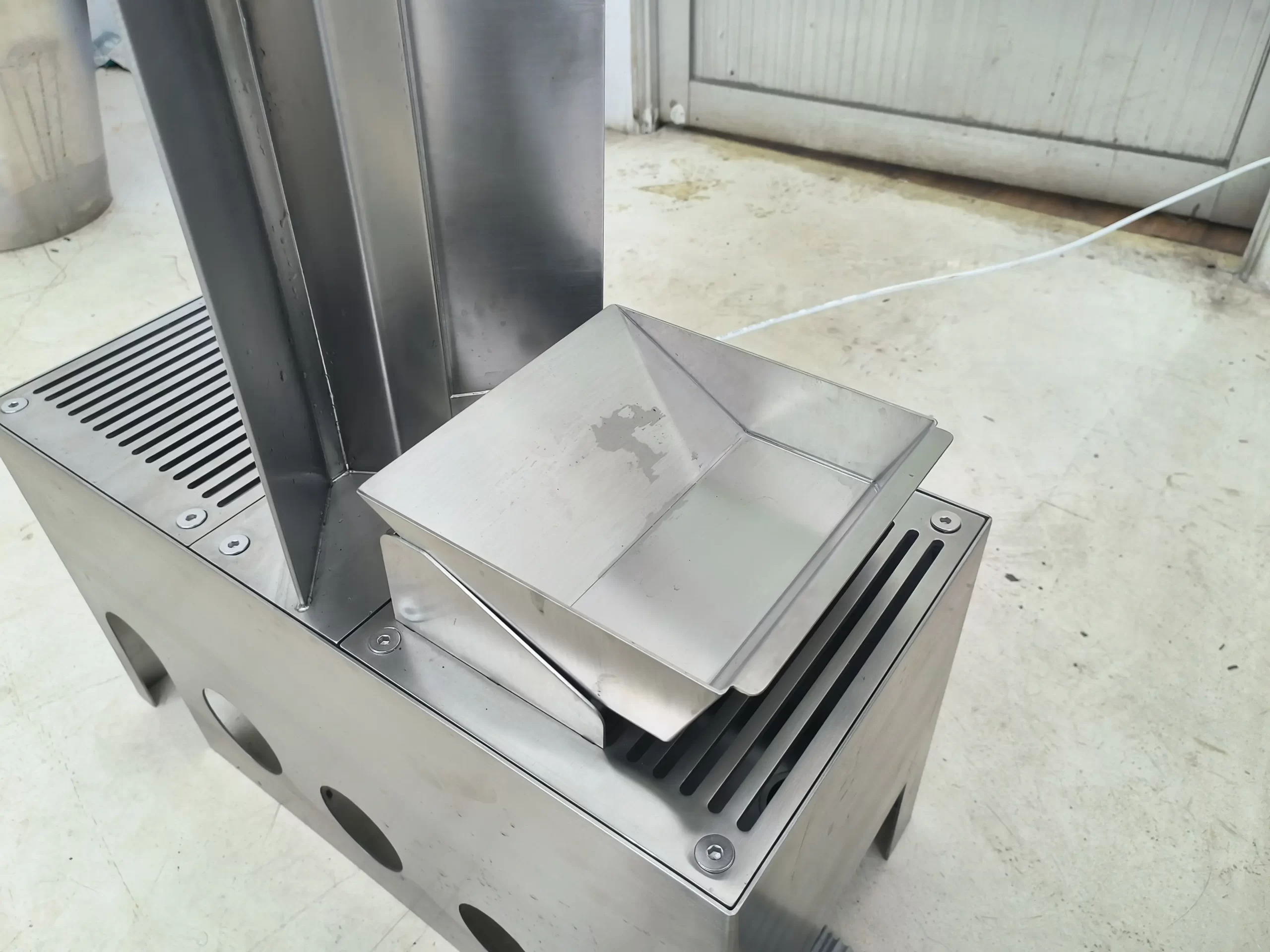

The pet basin at the base lifts out and tilts forward so grounds staff can empty standing water and debris in seconds instead of scooping. A drain port at the low point carries overflow straight to the waste line, preventing the stagnant puddle that collects in fixed pet bowls and becomes a mosquito breeding site in warm-climate markets.

Placement in Dog Parks and Trailheads

The bowl height is set for medium and large dogs. For projects in Southeast Asia and the Middle East where stray or community dog populations use public fountains, the separate pet basin keeps the human spouts free of contamination. Specifiers commonly place this unit at trailheads, dog-park entries and the perimeter of recreation fields.

316 Stainless Steel for Coastal and High-Traffic Sites

Why 316 Over 304 for Outdoor Public Use

The column, basin and pet bowl are fabricated in 316 stainless steel. The added molybdenum in 316 resists the chloride attack that pits 304 within a few seasons on coastal promenades, near swimming pools, or where de-icing salt is used. For inland park projects with milder exposure, a 304 build is available on request to align with tighter budgets.

Surface Finish and Vandal Resistance

A brushed satin finish on the outer frame hides the minor scratches and water spots that accumulate in unsupervised public settings, while the bowl interior is polished for easy wipe-down. The column is anchored through the base rather than bolted on the surface, so the unit resists levering and impact typical of high-footfall civic sites.

Installation and Plumbing for Municipal Projects

Anchoring and Freeze-Protected Connections

The pedestal bolts to a prepared concrete pad with four anchor points. Supply and waste lines enter through the base, keeping plumbing concealed and protected. For buyers in regions with winter freeze cycles, the internal routing supports a drain-down configuration so the line can be cleared before the cold season.

Working With Landscape Architects and Contractors

We supply CAD blocks, STEP models and a one-page specification sheet for tender submission. Contractors receive an installation guide covering pad dimensions, cold-water supply pressure range and drain connection size, so the unit can be sequenced into hardscape work without rework.

Customization for Distributors and OEM Programs

Distributors and private-label buyers can configure the finish (brushed satin, mirror polish, or powder-coat in standard RAL colors), add a laser-etched logo to the column, and choose push-button or optional sensor activation. OEM orders support custom spout counts and heights for clients that need a three-spout variant for family parks. Minimum order quantity for standard configurations starts at one piece; custom finishes and branding carry a higher MOQ.

Target Applications and Project Types

• Public parks and urban plazas requiring ADA-compliant hydration

• Dog parks and pet-friendly trail systems

• School campuses and university grounds

• Municipal recreation centers and sports fields

• Transit plazas and waterfront promenades

• Community centers in coastal and high-humidity regions
