Compact Wall-Mounted Drinking Fountain with Stainless Steel Bubbler

Note： Due to contractual agreements, we are unable to sell or ship this product to any country within the European Union (EU), the United Kingdom (UK), or other European regions. Please contact support if you have questions.

Minimalist Design for Space-Constrained Environments

150mm Wall Projection

The entire fountain body extends only 150 millimeters (approximately 6 inches) from the finished wall surface. This dimension is critical in corridors, stairwell landings, and narrow passages where building codes or practical circulation requirements limit how far a fixture can project into the walkway. For reference, a standard wall-mounted water cooler typically projects 300-400mm, meaning this compact unit reduces projection by more than half.

The shallow depth is achieved through a basin design that integrates the drain, valve, and supply connections within the wall cavity rather than behind a deep cabinet. The visible stainless steel face plate, basin, and bubbler head constitute the only components extending into the room.

Footprint Optimization

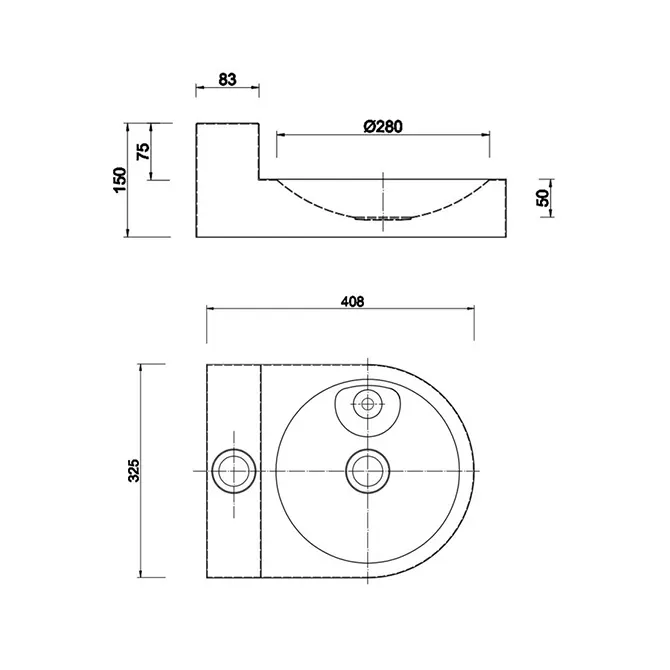

The overall dimensions of 408mm width by 325mm height by 150mm depth mean the fountain occupies less than 0.06 square meters of wall area. In facilities where wall space is at a premium—such as school corridors lined with fire extinguishers, emergency exits, and signage—this compact footprint allows installation without displacing other required wall-mounted equipment.

Bubbler Engineering and Water Delivery

Anti-Squirt Bubbler Head

The bubbler head is machined from solid stainless steel with a precision-drilled orifice that produces a vertical arched stream. The orifice geometry includes an anti-squirt feature that prevents the stream from deflecting sideways when water pressure fluctuates, which is common in buildings with variable-pressure supply systems or multiple simultaneous fixture demands. The stream height is sufficient for comfortable drinking without splashing onto the user’s face or clothing.

Stream Height Adjustment

An adjustable stream regulator is accessible from the front of the unit, allowing maintenance staff to set the water arc height without removing the fountain from the wall or accessing the wall cavity. This adjustment accommodates variations in supply water pressure between installation sites and compensates for pressure changes that occur as building plumbing systems age.

Material and Surface Treatment

The basin is fabricated from a single drawn piece of 304 stainless steel, eliminating the welded bottom seam that is a common failure point in fabricated basins. The outer frame is brushed to a satin finish that conceals minor scratches from daily use and resists fingerprint visibility. The bowl interior is polished to facilitate cleaning and prevent bacterial adhesion to surface micro-textures.

Type 316 stainless steel is available for installations in environments with elevated humidity or chemical exposure, such as swimming pool facilities, laboratory corridors, or food processing plant common areas. The material thickness of 1.2-1.5mm provides structural rigidity without excessive weight, allowing the unit to be mounted on standard wall construction without special reinforcement.

Indoor Installation Applications

School Corridors and Classrooms

School facilities require drinking water access in corridors, gymnasium hallways, and classroom wings. The compact projection prevents the fountain from becoming an obstruction in corridors that must maintain minimum clear widths for student circulation and emergency egress. The vandal-resistant bubbler head and push-button activation withstand daily use by student populations.

Office Building Hallways

Corporate office buildings install drinking fountains in elevator lobbies, corridor intersections, and break room approaches. The brushed satin finish complements modern office interior design standards, and the compact size allows installation alongside other building services without crowding the wall surface. The optional bottle filler attachment supports corporate sustainability programs targeting single-use plastic reduction.

Healthcare Facility Common Areas

Hospitals and clinics require hygienic drinking water access in waiting areas, corridor junctions, and staff break rooms. The smooth stainless steel surfaces are compatible with institutional cleaning protocols using hospital-grade disinfectants. The absence of seams and crevices in the basin design eliminates accumulation points where contaminants could persist between cleaning cycles.

Installation and Plumbing Integration

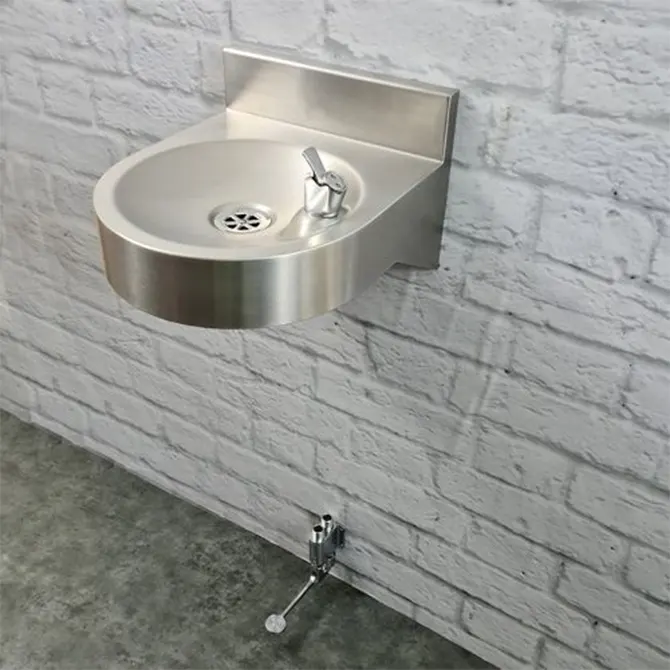

The fountain mounts to the wall using a mounting plate that distributes the load across the wall surface. For drywall partitions, the mounting plate attaches to studs at standard 16-inch or 400mm centers. For masonry walls, anchor bolts secure the plate directly to the substrate. The water supply connection (1/2-inch) and drain connection (1-1/4-inch) enter through the wall behind the unit, concealed within the wall cavity.

A P-trap is included with the drain assembly, preventing sewer gas from entering the building through the fountain waste line. The P-trap is accessible through a removable panel on the underside of the unit, allowing maintenance personnel to clear blockages without removing the fountain from the wall.
