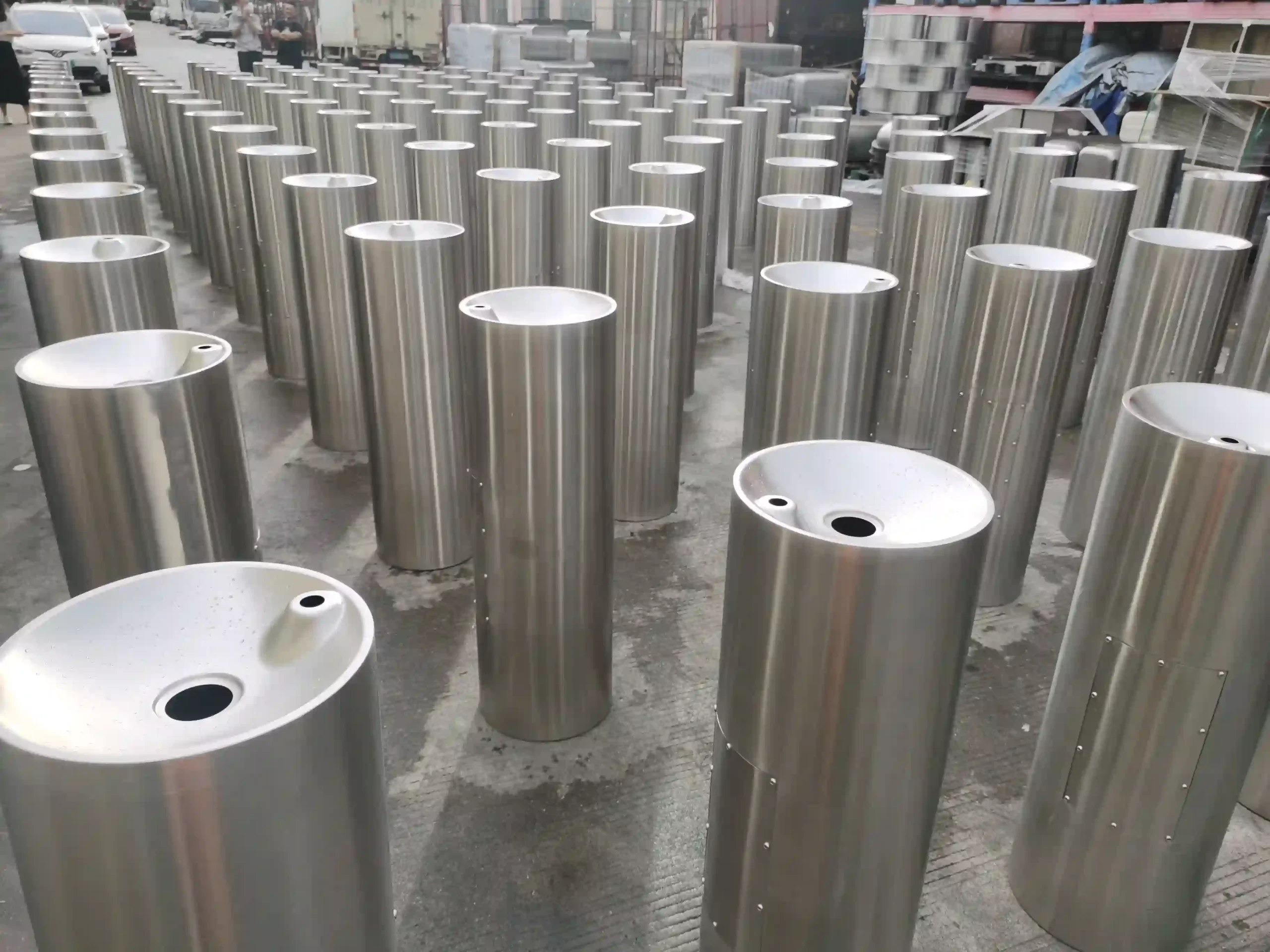

Freestanding Cylindrical Chilled Water Drinking Fountain in 304/316 Stainless Steel

Note： Due to contractual agreements, we are unable to sell or ship this product to any country within the European Union (EU), the United Kingdom (UK), or other European regions. Please contact support if you have questions.

Refrigeration-Ready Design

Integrated Cooling System Architecture

This fountain is engineered to accommodate an internal refrigeration unit that chills the potable water supply before dispensing. The cooling system uses a compressor-based refrigeration cycle with a capacity rated in gallons per hour (GPH) of chilled water output. When the refrigeration option is specified, the fountain delivers water at approximately 50°F (10°C), even when ambient temperatures reach 100°F (38°C) or higher.

For projects that do not require chilled water, the fountain can be specified without the refrigeration unit, operating as a non-refrigerated ambient-temperature dispenser. This flexibility allows the same physical unit to serve different climate zones and project budgets.

Ventilation and Thermal Management

The cylindrical column body incorporates ventilation louvers that allow heat exchange from the refrigeration condenser to the surrounding air. The ventilation design prevents heat buildup inside the column, which would reduce cooling efficiency and compressor lifespan. Air intake and exhaust paths are separated to avoid recirculation of heated air. The louvers are screened with stainless steel mesh to prevent insect intrusion and debris accumulation.

Cylindrical Freestanding Form Factor

Floor-Mounted Installation

The fountain mounts directly to a concrete pad or structural slab using a floor flange with anchor bolts. The cylindrical column design distributes lateral loads evenly around the base, providing stability against wind, accidental impact, and user pressure. All plumbing supply, waste, and electrical connections (for refrigerated models) route through the base, concealed within the column interior.

Space Efficiency in High-Traffic Areas

The cylindrical footprint occupies less ground area than rectangular pedestal designs, making it suitable for installation in constrained spaces such as transit platform edges, narrow sidewalk extensions, and building entrance plazas. The vertical column profile also maintains sightlines in landscape settings, allowing the fountain to provide hydration without becoming a visual obstruction.

Material Engineering for Outdoor Exposure

The column body, basin, and all external components are fabricated from Type 304 stainless steel as standard, with Type 316 available for coastal and high-chloride environments. The brushed satin finish resists fingerprint visibility and simplifies cleaning. Welded seams are continuous and ground smooth, eliminating crevices where moisture and contaminants could accumulate. The basin is drawn from a single sheet of stainless steel with no welded bottom seam, preventing leakage at the basin-to-column junction.

For Middle Eastern and tropical installations where UV exposure is intense, the stainless steel surface reflects solar radiation effectively, preventing the metal surface from reaching unsafe contact temperatures. Powder coating in light colors is available for additional solar heat reflection where required.

Commercial Applications

Transit Stations and Airports

Transportation hubs require reliable hydration access for passengers who may not carry water bottles through security checkpoints. A chilled water fountain at a transit platform provides immediate relief during summer months when passengers are transitioning between air-conditioned interiors and outdoor waiting areas. The freestanding design allows placement on platforms where wall-mounted options are unavailable.

Sports Facilities and Stadiums

Outdoor sports complexes, running tracks, and stadium concourses benefit from chilled water dispensing, particularly in warm-climate regions. Athletes and spectators require cool water for thermal regulation during physical activity. The vandal-resistant construction withstands the heavy use and occasional misuse characteristic of sports venue environments.

Corporate Campuses and Office Parks

Corporate facilities with outdoor courtyards, walking paths, and break areas install chilled water fountains to support employee wellness programs. The bottle filler option (available as an accessory) allows employees to refill personal containers, supporting corporate sustainability initiatives that target single-use plastic reduction.

Installation and Placement Guidelines

The fountain ships fully assembled. Installation requires only a cold water supply, a 40 mm drain connection, and — if cooling is specified — a grounded electrical outlet. The base includes four leveling feet for uneven floors and pre-drilled anchor holes for seismic restraint in earthquake-prone regions.

Recommended clearances:

• Front: 915 mm minimum for wheelchair access (ADA compliance)

• Sides: 150 mm for cleaning access

• Rear: 100 mm for service panel swing

In outdoor covered areas, the unit should be positioned under an overhang or canopy to prevent direct rain on the electronics. For fully exposed sites, the non-cooled version is recommended.

Customization for Project Specifications
