Heavy Duty Outdoor Drinking Fountain — 316 Stainless Steel Standalone with Pet Bowl

Built for Sites Without Walls

Standalone Design for Open Terrain

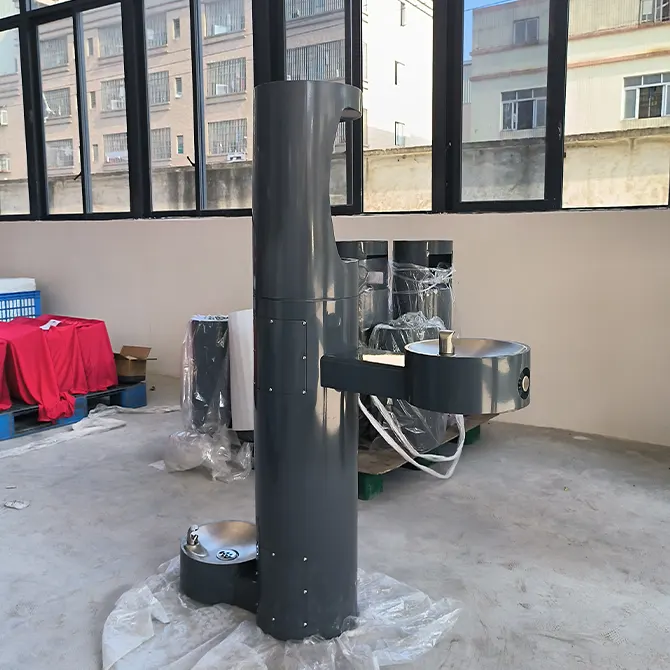

Not every location that needs drinking water has a wall to mount against. Trailheads, dog parks, open lawns, and beachfront promenades require a fountain that stands on its own foundation. This heavy duty drinking fountain is engineered as a self-supporting pedestal — the cylindrical body anchors to a concrete pad through a heavy-gauge base plate, and all plumbing connections route below grade. No wall, no bracket, no structural dependency on adjacent construction.

Why Heavy Duty Matters in Unsupervised Spaces

Public parks and trail systems are unsupervised for most of their operating hours. Fountains in these locations absorb impacts from maintenance equipment, bicycles leaned against them, and occasional deliberate abuse. The heavy-gauge stainless construction — thicker than standard commercial indoor fountains — resists denting, bending, and joint failure under these conditions. The base plate and anchor system are sized to prevent the fountain from being tipped or rocked loose, a failure mode that lighter pedestal fountains suffer in high-misuse environments.

Dual-Level Hydration: Adults, Children, and Pets

Three Users, One Fixture

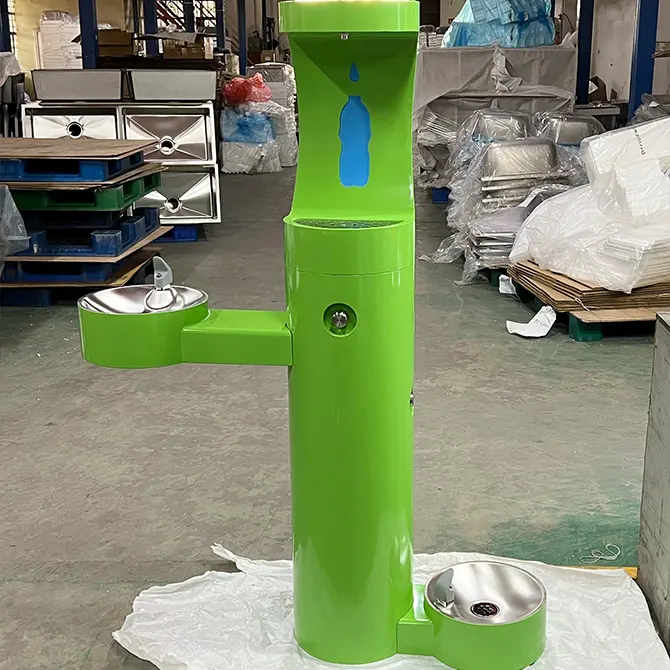

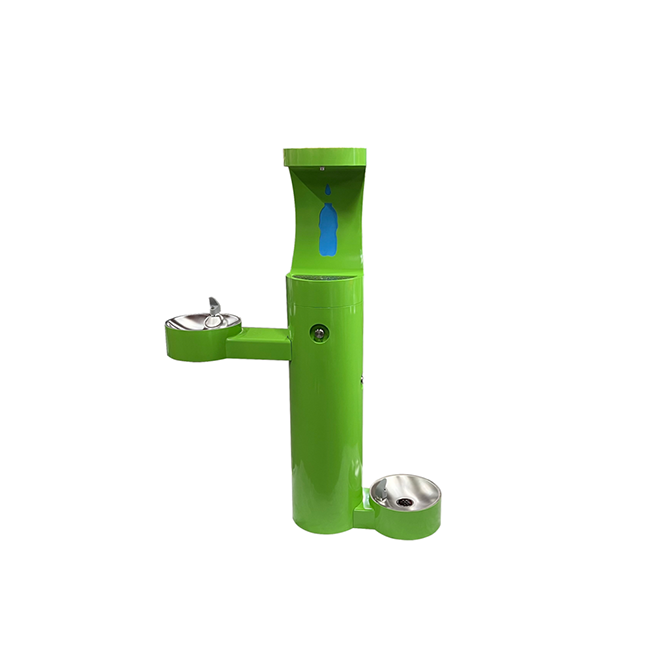

The fountain serves three distinct user groups from a single installation. An upper bubbler is positioned at adult standing height. A lower bubbler is set at a height accessible to children and seated users. At the base, a stainless pet bowl delivers water to dogs and other animals at ground level. This three-tier configuration eliminates the need for separate human and pet fixtures, reducing installation cost, plumbing complexity, and site footprint.

Independent Water Delivery

Each station draws from the same supply line but operates independently. A child drinking from the lower bubbler does not interrupt an adult using the upper spout, and the pet bowl fills through a separate valve that a pet owner activates with a push-button or foot pedal. The pet bowl drains after use rather than holding standing water, which prevents mosquito breeding and bacterial growth in outdoor installations.

Heavy-Gauge Construction and Impact Resistance

Material Thickness and Weld Integrity

Xinhe fabricates this heavy duty drinking fountain from 12-gauge stainless sheet — a thickness that resists deformation under impact and provides the structural mass needed for a freestanding pedestal. Welds at the base plate, body seams, and bubbler arm mounts are full-penetration welds ground smooth, eliminating stress concentrations that could propagate cracks under repeated loading. The result is a fountain that maintains structural integrity across decades of public contact.

Bubbler and Valve Protection

The bubbler heads are recessed within protective shrouds or positioned to minimize leverage exposure, reducing the risk of bending or breakage when the fountain is struck by equipment or subjected to deliberate force. Valve assemblies are housed inside the sealed body, accessible only through a secured access panel. This internal placement protects the plumbing components from environmental exposure and tampering.

316 Stainless for Coastal and Marine Environments

Chloride Resistance for Waterside Installations

Type 316 stainless steel contains molybdenum, which significantly improves resistance to chloride-induced pitting and crevice corrosion. For drinking fountains installed within salt-air zones — beachfront parks, marina promenades, coastal trail systems — 316 grade is the specification that prevents the surface rusting and structural degradation that 304 grade suffers in these environments. Xinhe fabricates this model in either 304 or 316 grade, and project teams should specify 316 for any installation within one kilometer of a marine coastline.

De-Icing Salt Exposure

Inland installations are not immune to chloride exposure. Roadway and pathway de-icing salts create chloride-rich runoff that contacts fountain bases and lower body sections during winter months. In regions with heavy salt application — northern North America, northern Europe, and mountain recreation areas — 316 grade extends the service life of the pet bowl and lower body sections that are most exposed to salt-laden splash and runoff.

Pet Bowl Integration and Animal Welfare Design

Bowl Geometry and Drainage

The pet bowl is formed from the same stainless grade as the fountain body, with a shallow basin that allows dogs to lap comfortably while preventing deep water accumulation. The bowl drains through a dedicated waste connection, so water does not stagnate between uses. This drainage design addresses a common complaint from park maintenance teams — standing water in pet bowls becomes a hygiene liability, breeding bacteria and attracting insects in warm-weather months.

Height and Access for Different Animals

The pet bowl is positioned at ground level, accessible to dogs of all sizes and to other animals that may use public water sources. The bowl’s rim height is set low enough for small breeds and short enough that large dogs do not need to stretch uncomfortably. For installations serving equestrian trails or agricultural-adjacent recreation areas, the bowl height can be adjusted during fabrication to accommodate larger animals.

Foundation and Anchoring Requirements

Concrete Pad Specification

The standalone fountain requires a reinforced concrete pad sized to the base plate footprint, with embedded supply and drain sleeves positioned per the submittal drawing. The pad must be thick enough to resist frost heave in cold climates and dense enough to anchor the fountain against wind loading and lateral impact. A level, cured pad is essential — an out-of-level foundation causes the fountain to lean, stressing the base plate welds and creating an uneven appearance that reflects poorly on the installation.

Below-Grade Plumbing

Supply and drain lines run below the concrete pad to a frost-protected depth determined by the installation climate. In frost zones, the supply line must include a drain-back or freeze-resistant valve configuration so that water does not remain in the above-grade portion of the supply line during freezing conditions. The drain line connects to the site’s storm or sanitary waste system per local code, and the pet bowl drain ties into the same waste routing.

Anti-Vandal Features for Unsupervised Locations

Tamper-Resistant Hardware

All access panels and service connections use tamper-resistant fasteners that require specialized bits to remove. This prevents casual disassembly by members of the public while allowing maintenance teams to service the valve and supply connections with standard tool kits. The bubbler heads are machined stainless, not plastic, so they cannot be broken off or melted by cigarette contact — a common failure mode for plastic bubbler caps in unsupervised parks.

Valve Protection and Flow Control

The push-button valves are recessed within the fountain body, accessible only through the secured panel. This protects the valve stems from being jammed with foreign objects — a vandalism tactic that disables exposed push-button fountains. Flow restrictors inside the valve body prevent the fountain from being locked on, which would waste water and potentially flood the site if left running overnight.

Project Specification and Sourcing

Submittal and Documentation

Each heavy duty drinking fountain ships with a full submittal package: specification sheet with dimensions and material grades, foundation drawing with pad and sleeve requirements, certification documents, and installation instructions. The fountain carries CE certification and is manufactured under ISO 9001 quality management. Project teams bidding municipal contracts, park department procurements, or commercial development packages can request these documents in advance for specification sections and bid packages.

Customization for Project Identity

The fountain accepts powder-coat finishes in standard RAL colors for projects that require visual identity — park system colors, school district branding, or municipal wayfinding schemes. Logo etching and custom model numbering are available for distributor private-label programs. Xinhe’s engineering team reviews project drawings and produces fabrication drawings for approval, ensuring that each unit matches the site’s plumbing layout, foundation design, and aesthetic requirements before production begins.
