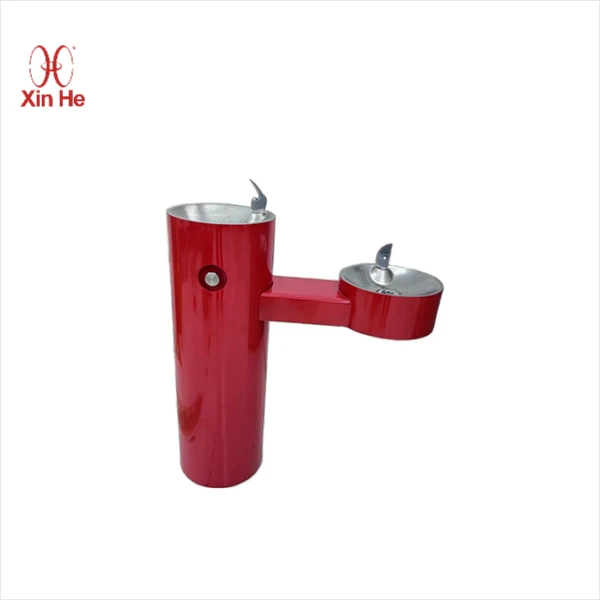

Outdoor Drinking Water Fountain — Red 304 Stainless Steel Dual Bubbler

Why Red? Visibility and Wayfinding in Public Spaces

Color as a Functional Specification

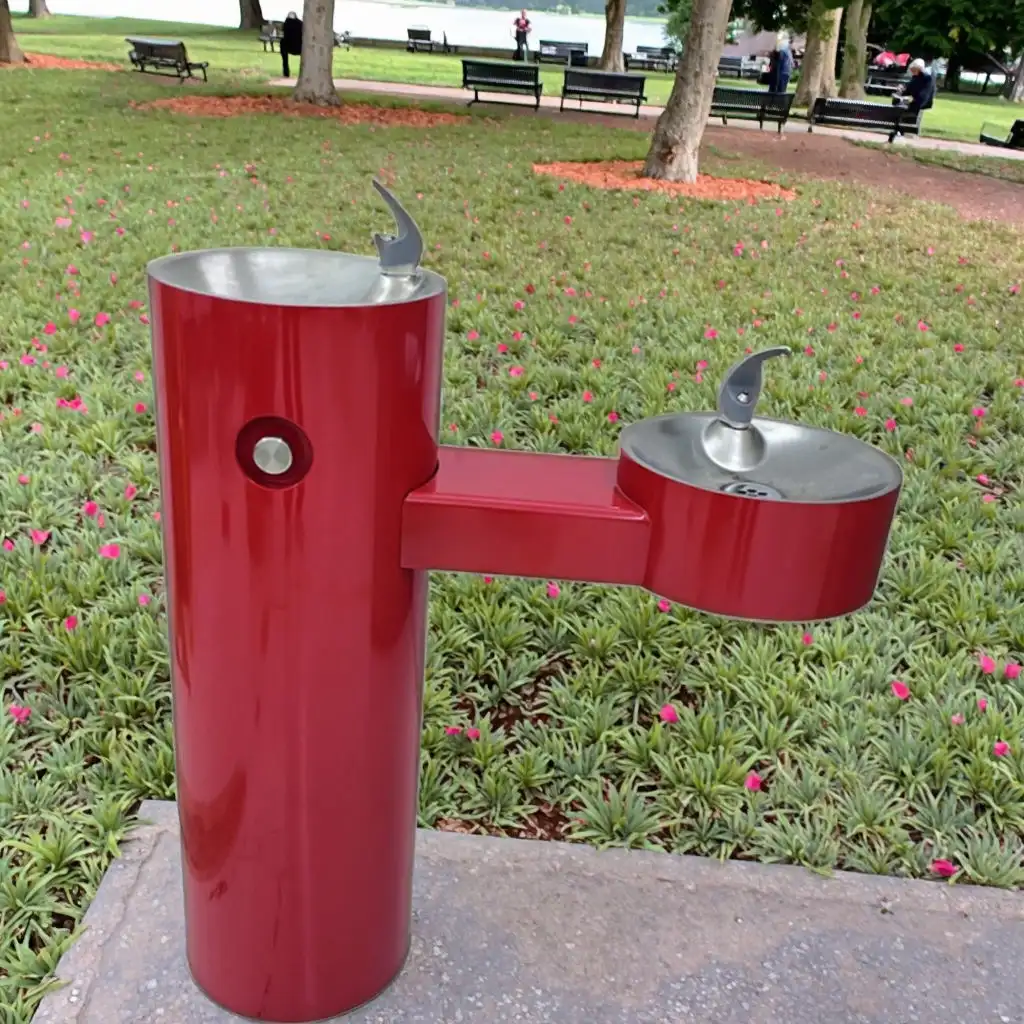

Municipal planners and landscape architects specify red drinking fountains not for aesthetics alone but for wayfinding. In large parks, sports complexes, and transit plazas, a red fixture stands out against green foliage, concrete paths, and neutral-toned site furniture. Visitors locate water access from a distance, reducing the aimless wandering that frustrates park users on hot days. Trail systems benefit particularly — a red fountain at a trailhead or junction serves as a visual landmark that hikers and runners can spot from the path.

Powder-Coat Application Over Stainless

The red finish is a powder coating applied over the 304 stainless steel substrate. Unlike wet paint, powder coating is electrostatically bonded and oven-cured, producing a finish that resists chipping, fading, and UV degradation far better than liquid paint systems. The underlying stainless remains structurally intact even if the coating is scratched, so corrosion protection is never compromised by surface wear.

Single-Arm Dual Bubbler Configuration

Two Spouts, One Support Arm

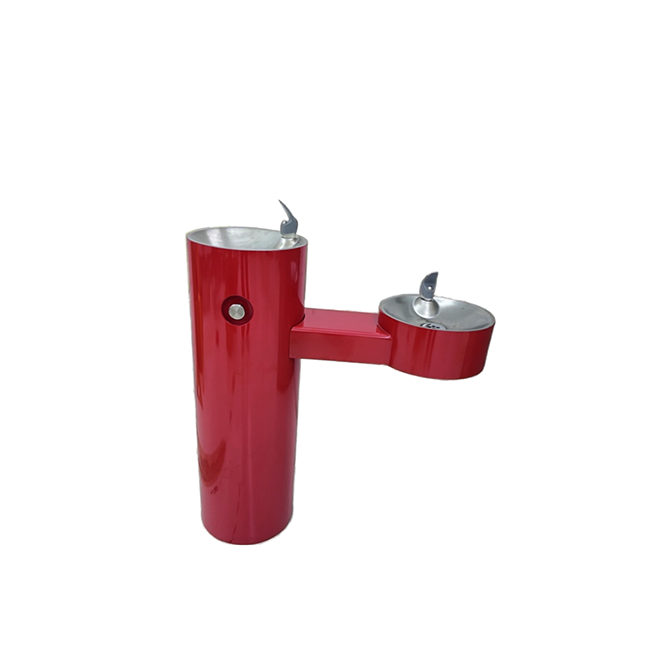

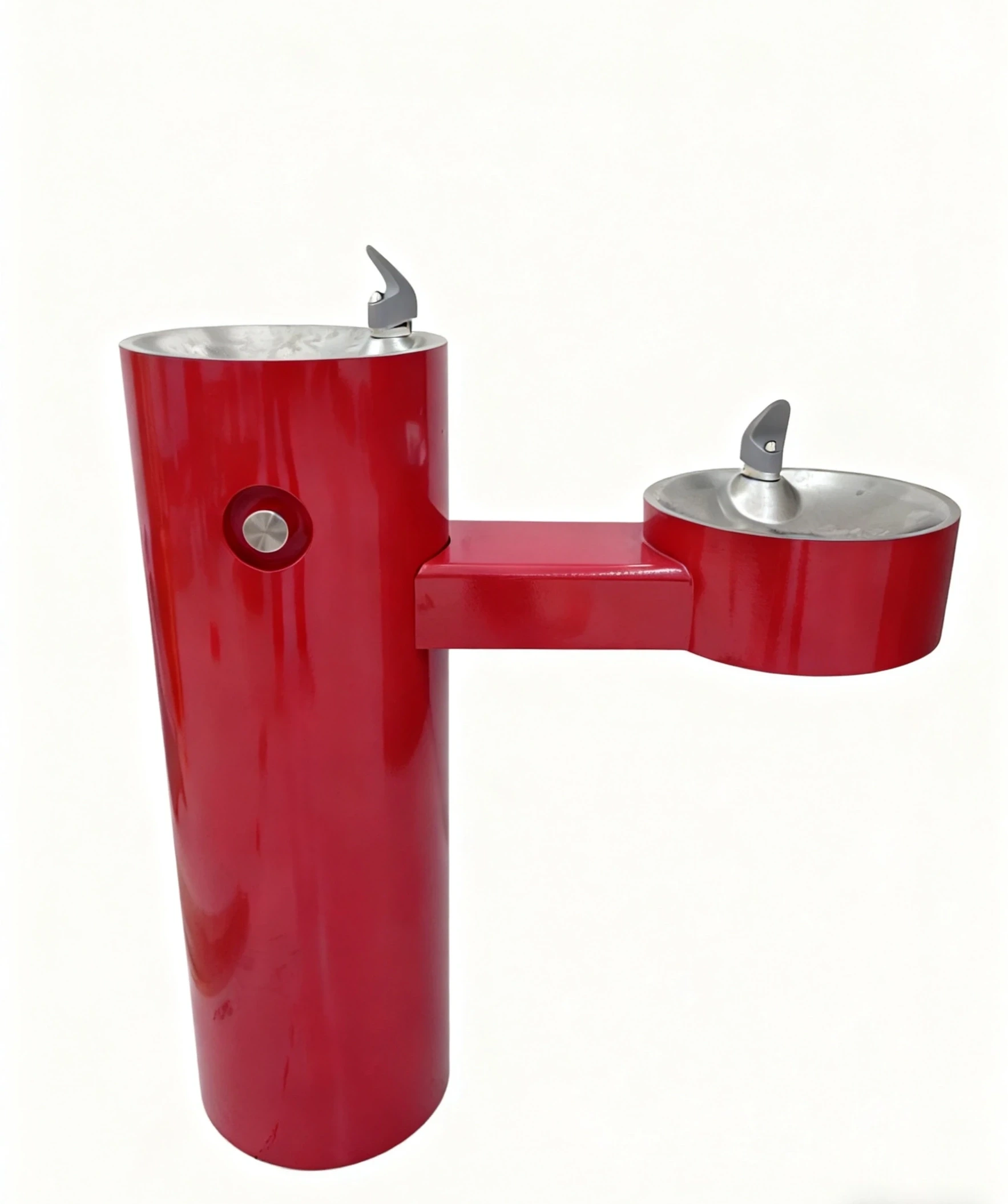

The fountain extends a single horizontal arm from the cylindrical body, mounting two bubbler spouts at the arm’s end. This configuration allows two users to drink simultaneously — a practical advantage at sports facilities, concert venues, and park entrances where demand spikes during event transitions or halftime breaks. The single-arm design is more compact than dual-post configurations, reducing the fountain’s footprint on crowded pathways.

Stream Height and Bowl Drainage

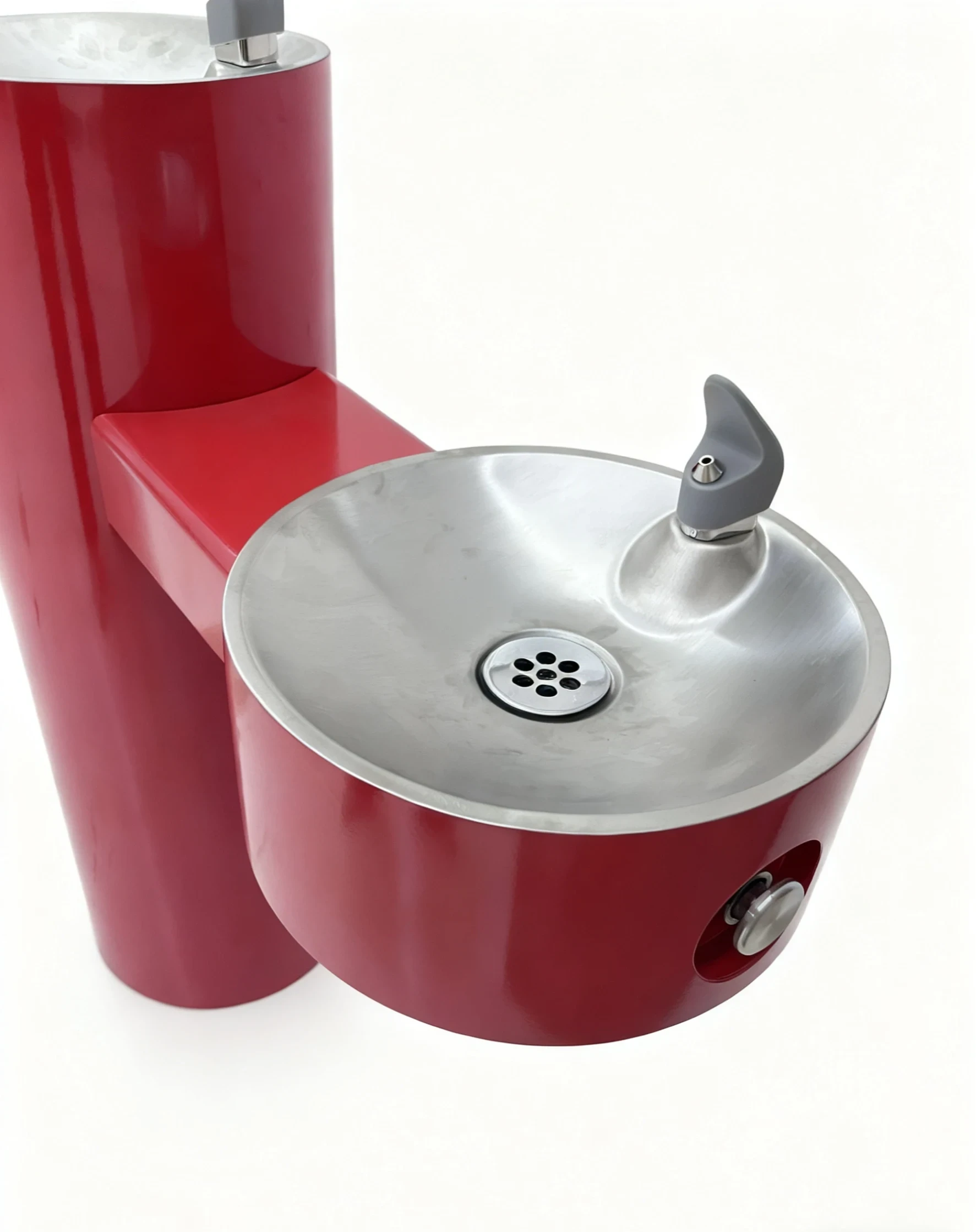

Each bubbler produces an independent stream, so one user’s activation does not interrupt the other’s flow. The bowl beneath each spout drains independently, preventing cross-contamination between the two stations. Drain strainers catch leaves, grass clippings, and debris that outdoor fountains inevitably collect, keeping the waste line clear between maintenance visits.

Weatherproofing and Corrosion Strategy

Sealed Components for Uncovered Sites

This outdoor drinking water fountain is engineered for installation without overhead shelter. The valve body and supply connections are sealed against rain intrusion, and the bubbler heads are designed to drain completely between uses so that standing water does not pool in the waterway. In climates where freeze protection is required, the unit can be specified with a freeze-resistant valve configuration that drains the supply line below frost depth after each activation.

304 Stainless in Outdoor Service

Type 304 stainless steel performs well in most outdoor environments — it resists the corrosion that carbon steel and painted finishes suffer when exposed to rain, humidity, and temperature cycling. For installations within salt-air coastal zones or regions where de-icing salts are used heavily on adjacent pathways, upgrading to 316 grade extends service life by adding resistance to chloride pitting. The powder-coat finish provides an additional barrier layer between the stainless surface and environmental chlorides.

Mounting Options for Uncovered Sites

Pedestal and Surface-Mount Configurations

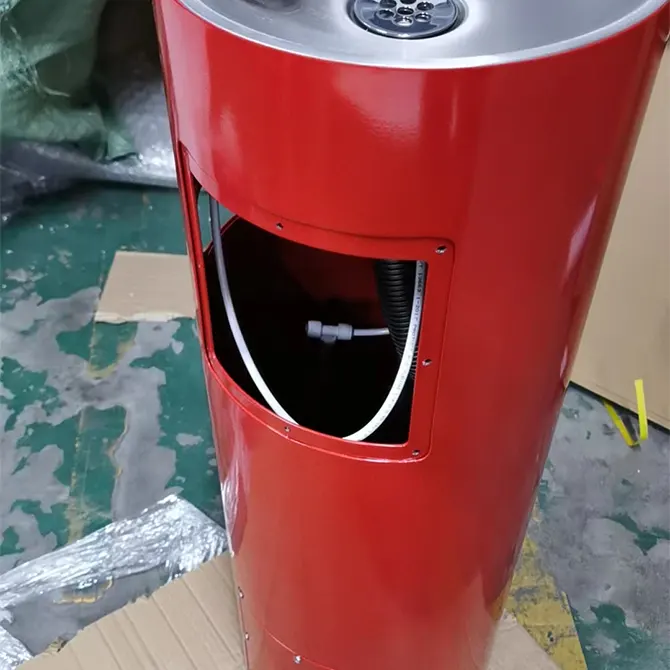

The cylindrical body of this fountain is designed for pedestal-style installation — the unit stands on a base that anchors to a concrete pad or engineered foundation. This configuration works for open park lawns, plaza corners, and trailside installations where no wall is available. The base conceals the supply and drain connections, routing plumbing below grade to the fountain’s internal valve assembly.

Foundation Preparation

Site preparation requires a concrete pad with embedded supply and drain sleeves sized to the fountain’s base footprint. The pad must be level and cured before the fountain is set and anchored. For installations in frost-zone climates, the supply line must be trenched below frost depth with a proper drain-back configuration to prevent freeze damage during winter months when the fountain may be decommissioned seasonally.

Climate Adaptation Across Global Markets

Performance in Tropical and Arid Regions

In Southeast Asian and Middle Eastern markets, outdoor drinking fountains face intense UV exposure, high ambient temperatures, and monsoon-season humidity. The powder-coat finish is formulated to resist UV fading, and the stainless substrate tolerates the thermal expansion cycles that plastic and composite fountains cannot. The bubbler valve is rated for the supply pressures common in municipal water systems across ASEAN and Gulf Cooperation Council countries.

Cold-Climate Considerations

For North American and European projects in frost zones, the fountain can be ordered with freeze-resistant internals that allow year-round operation. Alternatively, the unit can be specified as a seasonal-use fountain with a drain-down procedure for winterization. Project teams should confirm the climate classification of the installation site so the correct valve and plumbing configuration is fabricated.

Powder-Coat Finish Performance

Color Options and Customization

While red is the standard finish for this model, the powder-coat system accepts a range of RAL colors for projects that require brand matching, school colors, or municipal identity. Common requests include blue for waterfront installations, green for forested park settings, and yellow for high-visibility trailhead placements. Custom colors are specified at quotation and applied during fabrication.

Finish Maintenance and Repair

Powder-coat finishes require minimal maintenance — periodic washing with mild soap and water removes environmental soiling. If the coating is scratched or chipped by impact, touch-up paint matched to the RAL color can be applied to prevent corrosion at the damaged site. The underlying stainless provides a secondary corrosion barrier, so a coating breach does not immediately compromise the fountain’s structural integrity.

Accessibility and User Height Considerations

Bubbler Height for Standing Users

The dual bubbler arm is positioned at a height that serves standing adults and older children. For projects requiring wheelchair-accessible installation, the fountain can be specified at a reduced mounting height or ordered in a bi-level configuration with one spout at standing height and one at seated-user height. Specifiers should confirm the accessibility code applicable to the project site, as height and reach-range requirements vary by jurisdiction.

Clear Floor Space

The pedestal design provides clear floor space around the fountain on all sides, allowing wheelchair users to approach from the front or side. Unlike wall-mounted units that may be constrained by adjacent walls or alcoves, a standalone outdoor fountain in an open plaza offers the maneuvering room that accessibility standards require.

Procurement for Municipal and Commercial Projects

Bidding and Specification Support

Municipal procurement teams and commercial contractors can request detailed specification sheets, CAD drawings, and certification documents for bid packages. The fountain carries CE certification and is fabricated under ISO 9001 quality management, satisfying the documentation requirements common in public works bidding. Lead times for standard configurations are published for project scheduling, and custom finishes or grade upgrades are quoted with confirmed production timelines.

Volume Orders and Distributor Programs

Distributors supplying park departments, school districts, and commercial developers can order this outdoor drinking water fountain in volume with consolidated shipping. Xinhe supports private-label programs for distributors who require branded product under their own catalog identity. OEM modifications — custom colors, logo etching, or alternate bubbler configurations — are available with flexible minimum order quantities.
