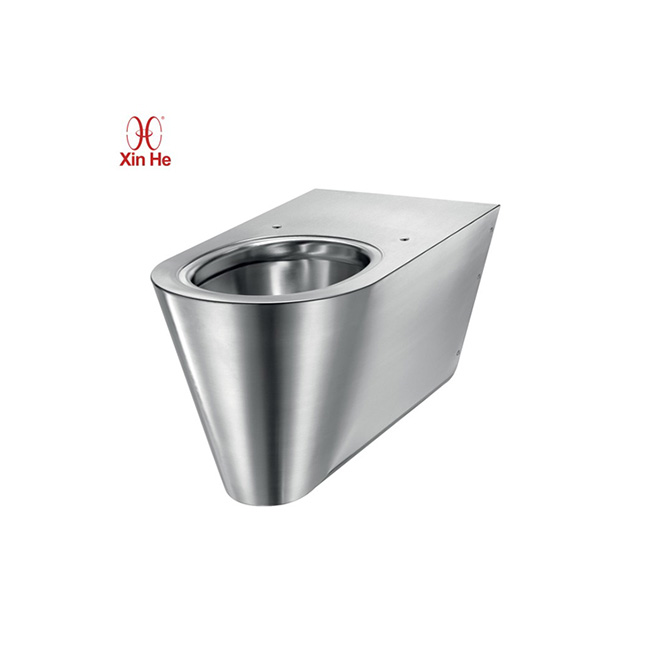

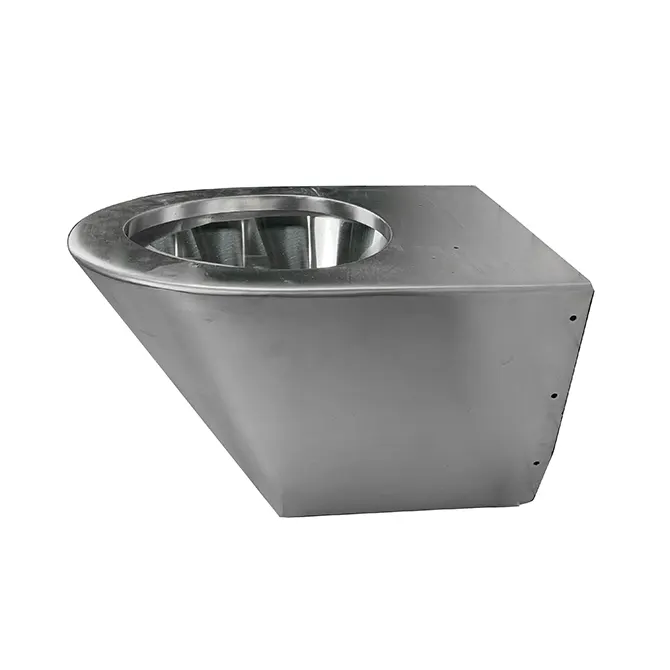

Heavy-Duty Stainless Steel Toilet Bowl for High-Volume Public Use (PQ603)

A Bowl Engineered for Relentless Daily Volume

There is a difference between a toilet that serves 40 users a day and one that serves 400. At the lower end, almost any commercial fixture survives. At the higher end, the bowl itself becomes the wear item — the surface that absorbs thousands of flushes, hundreds of impacts from bags and elbows, and the chemical load of industrial cleaning cycles.

The PQ603 is built for the higher number. The bowl is drawn from a single sheet of Type 304 stainless steel at 1.2 mm standard gauge, with 1.5 mm and 2.0 mm upgrades available for the most punishing sites. The interior is polished to a mirror finish that resists waste adhesion and hard-water scale, while the outer frame carries a brushed satin texture that hides the scuff marks and contact scratches that accumulate in a stall with 400 daily users.

This is not a fixture chosen for its appearance in a catalog photograph. It is chosen by the facility manager who has the replacement work-order history for the current bowls on a spreadsheet and needs the number to stop climbing.

Wall-Hung and Floor-Mount Flexibility

Wall-Hung Configuration

In the wall-hung configuration, the PQ603 mounts to a concealed carrier system with the waste outlet routing through the wall chase. This leaves the floor beneath the bowl completely clear — a specification that matters in three scenarios. First, in venues where floor cleaning is mechanized (ride-on scrubbers in stadium concourses, factory floors), a clear floor means no fixture base to navigate around. Second, in accessible stalls, wall-hung mounting allows the bowl height to be set precisely to code. Third, in facilities where the floor is subject to flooding or wash-down (industrial sites, some transit facilities), a wall-hung bowl keeps the fixture above the water line.

Floor-Mounted Configuration

The floor-mounted configuration uses a standard rough-in and is the specification of choice for retrofit projects where the wall carrier system is not present or where the wall structure cannot support a cantilevered load. The PQ603 floor-mount uses concealed bolt anchors — no exposed fasteners to corrode, snap, or be removed.

Both configurations use the same bowl, which means a project can mix mounting types across a facility without stocking two different fixtures. For procurement teams managing spare-parts inventory across multiple buildings, that standardization is a measurable cost saving.

The Trapway and Flush Valve Partnership

Flush-Valve-Ready Spud

The PQ603 is engineered for flush-valve operation, with a top-spud location that accepts standard commercial flush valves — the type used in stadiums, transit hubs, and industrial facilities where gravity-tank systems cannot keep up with peak demand. The flush-valve-ready design means the bowl can be paired with the valve brand and flow rate the project specifies, rather than locking the buyer into a proprietary system. The trapway itself is molded as a single piece, which removes the welded joint that generates the most expensive behind-wall leak work order in high-volume facilities.

P-Trap and S-Trap Options

Both P-trap and S-trap configurations are available, allowing the PQ603 to match the existing drain rough-in whether the waste line exits through the wall (P-trap) or through the floor (S-trap). This is the detail that determines whether a retrofit project requires re-piping or simply a fixture swap — and re-piping is where renovation budgets overflow.

Facilities That Push Fixtures to the Limit

Stadiums and Arenas

Event venues concentrate thousands of users into a few hours of peak demand. The bowl must flush reliably under back-to-back use, survive the post-event period with reduced supervision, and present a clean surface for the next event. The polished interior and flush-valve-ready design are the two features stadium contractors specify first.

Transit Hubs and Highway Service Areas

Metro stations, bus depots, and highway rest stops run high volume with no off-peak. The wall-hung configuration is common here for floor-cleaning access, and the flush-valve operation handles the peak-load flushing that gravity systems cannot sustain.

Industrial and Manufacturing Sites

Factories, processing plants, and warehouses subject fixtures to chemical cleaning, temperature swings, and impacts from equipment and material handling. The 304 stainless body — upgradeable to 316 for chloride-exposed sites — is the material specification that industrial facility engineers request when ceramic has failed within a single maintenance cycle.

Military and Institutional Bases

Military installations, training facilities, and institutional campuses need fixtures that survive concentrated use by a defined population with no tolerance for downtime. The heavy gauge, the concealed fasteners, and the one-piece trapway are the construction details that keep these facilities operational.

Gauge, Weld, and Load Performance

The PQ603’s performance is determined by three manufacturing variables that buyers should understand before specifying.

Gauge — the thickness of the steel. The standard 1.2 mm body handles general high-volume public use. The 1.5 mm and 2.0 mm upgrades are specified for sites with documented impact abuse or bariatric load requirements. In the steel industry, a lower gauge number indicates thicker material; the PQ603 uses the gauge appropriate to the abuse profile of the installation site.

Weld — the integrity of the joints. The bowl and trapway are drawn and molded as single pieces, eliminating the welded seams that are the primary leak and failure points in fabricated stainless fixtures. Where welds are unavoidable (mounting brackets, accessory points), they are continuous and ground smooth, leaving no crevice for soil or corrosion.

Load — the weight the installed fixture can support. In the wall-hung configuration, the load capacity is determined jointly by the bowl and the carrier system; the PQ603 is engineered to pair with rated carrier systems for the load requirements of the project, including bariatric specifications where applicable.

Coordinating Bulk Orders for Large-Scale Builds

The PQ603 is specified most often in quantities — a stadium concourse with 60 stalls, a transit line with 14 stations, a factory complex with 8 buildings. Xinhe’s production capacity in Jiangmen, China and Ho Chi Minh City, Vietnam supports scalable orders with a minimum order quantity of 5 units.

For procurement teams managing large-scale bids, the PQ603 can be supplied with project-specific documentation: dimensioned drawings, material certificates, flush-performance data, and installation instructions. OEM and ODM customization covers branding, packaging, rough-in dimensions, flush button type, trap type, and accessory bundles. Consolidated shipping across multiple product categories (toilets, urinals, lavatories, drinking fountains) is available to reduce logistics complexity for projects sourcing a full restroom package from one supplier.

Standards and Approvals Across Markets

The PQ603 ships with certification documentation covering the major project markets. CE for European public procurement and industrial facilities. cUPC for U.S. and Canadian plumbing code compliance. WaterMark for Australian and New Zealand installations. NSF/ANSI 61 for potable water system components. ISO 9001 quality system registration, with SGS material inspection reports available on request.

For contractors and distributors bidding projects across multiple regions, a single fixture that carries the certification set for each market reduces the specification risk of substituting a non-compliant product mid-project.
