Wall-Hung Stainless Steel Outdoor Drinking Fountain — Custom Color Finishes

Space-Saving Wall Installation for Compact Sites

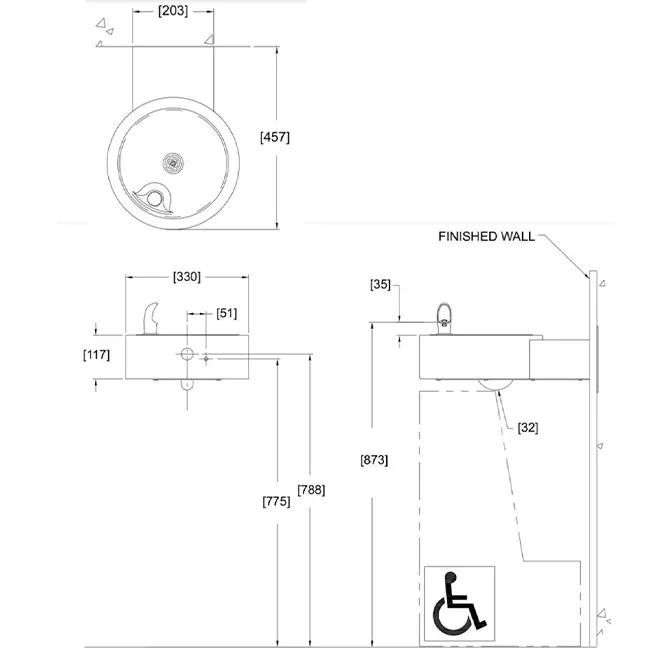

When a standing fountain would obstruct a narrow sidewalk or block a fire egress path, a wall-hung configuration solves the problem by keeping the floor clear. The PF-334612 projects only 117 mm from the wall surface, which means it complies with protrusion limits in most accessibility codes when mounted at the correct height. Plumbing connections route through the wall cavity, leaving no exposed pipes or supply lines on the visible face.

Mounting Bracket and Wall Substrate Requirements

The rear mounting plate is designed for installation on masonry, concrete, or structurally reinforced stud walls. For drywall-over-stud construction, a backing plate or blocking must be installed behind the finish surface to carry the load. Detailed anchor patterns and load ratings are provided in the submittal package for structural engineer review.

Powder-Coat Color System for Architectural Integration

Unlike brushed-only stainless fountains that impose a single visual tone, this model accepts full powder-coat customization. Landscape architects and urban designers can specify RAL-standard colors to integrate the fountain into a park’s wayfinding palette, a school’s brand identity, or a commercial development’s exterior design language.

Color Durability Under UV Exposure

The powder-coat system uses an outdoor-rated polyester resin that resists chalking and fading under sustained UV exposure. In desert and equatorial climates where solar radiation is intense, a clear topcoat can be added to extend color retention beyond the standard 5-year aesthetic warranty period.

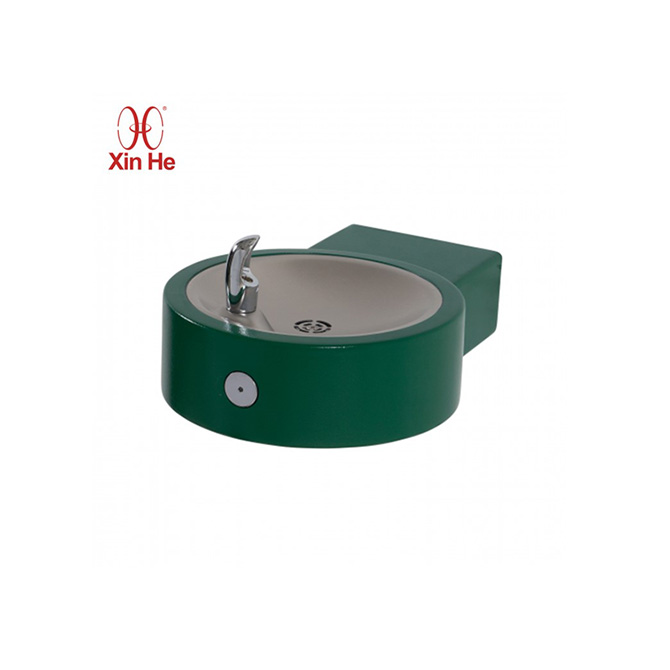

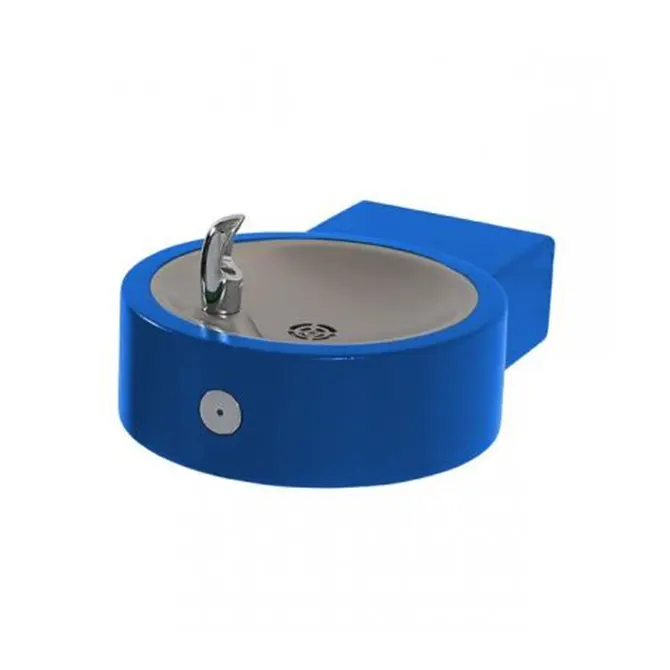

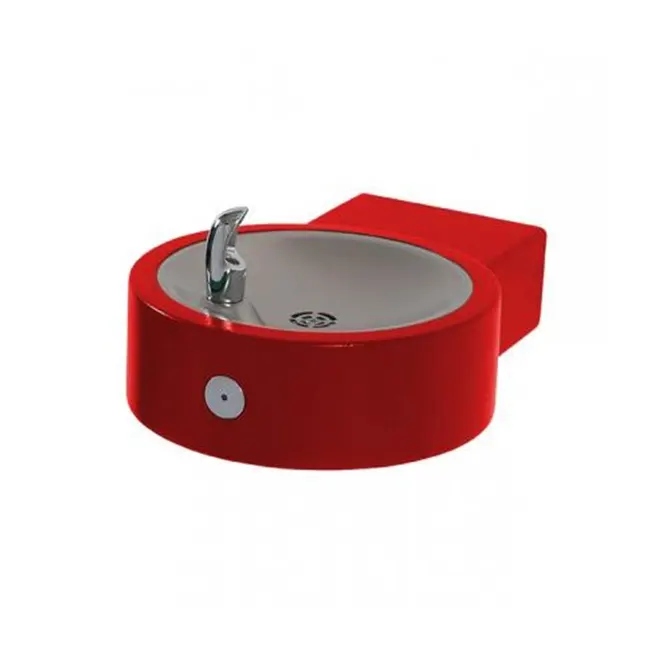

Standard and Custom Color Options

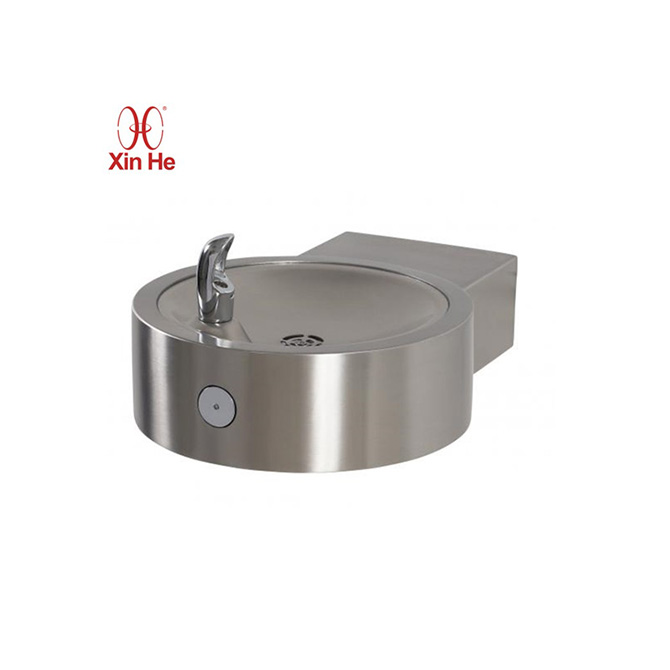

Factory-standard finishes include stainless steel original, black, gun metal, gold, brass, rose gold, and white. For project-specific requirements, custom Pantone or RAL references can be matched with a sample lead time of approximately 10 days.

Weather-Rated Push-Button Bubbler Valve

The activation mechanism uses a mechanical push button rated for outdoor exposure. Unlike electronic sensors that require a power source and can be affected by extreme weather, the mechanical valve operates reliably across the full temperature range from -20°C to +50°C without electrical dependency.

Freeze-Resistant Plumbing Configuration

For cold-climate installations, a frost-proof valve system can be specified. This configuration routes the supply line below the frost line and incorporates a self-draining mechanism that evacuates water from the exposed section after each use, preventing freeze-thaw damage to the valve body.

Bowl Design and Drainage Performance

The basin is pressed from a single sheet of stainless steel with a smooth radius transition from rim to drain, eliminating the crevices where mineral deposits and biofilm accumulate. The drain outlet accepts a standard 1-1/4 inch P-trap connection, and the bowl geometry directs water toward the drain even when the fountain is mounted slightly off-level — a common condition on existing masonry walls.

Anti-Splash Geometry

The bowl depth and bubbler angle are calibrated to produce a stream that arcs into the drinking position without overshooting the basin. This reduces the standing water and mineral staining that custodial teams encounter on poorly designed units.

Global Market Fit and Procurement Scenarios

Distributors serving the Australian market frequently request this configuration because WaterMark-certified wall-hung units are standard in municipal park and school specifications. In the Middle East, the powder-coat color system is valued for matching fountain installations to mosque courtyards and municipal plaza design themes. Southeast Asian buyers often specify 316 grade for installations in tropical coastal environments where chloride exposure accelerates surface degradation.

Tender and Bid Package Support

For government procurement and public works bids, Xinhe provides full technical submittals including dimensioned drawings, material certificates, finish samples, and compliance documentation. The MOQ of 5 units accommodates pilot installations as well as phased rollout schedules across multiple sites.

Anti-Vandal Construction for Unsupervised Locations

The push button is recessed within a protective collar that prevents levering with a tool, and the fasteners used on access panels are tamper-resistant. The bubbler is a fixed-stream type without adjustable components that could be deliberately misaligned. These details matter for installations in unsupervised public spaces where vandalism is a recurring maintenance cost.
