Recessed Wall-Mounted Indoor Drinking Fountain with Bottle Filler

In-Wall Recessed Architecture

Concealed Plumbing and Drainage

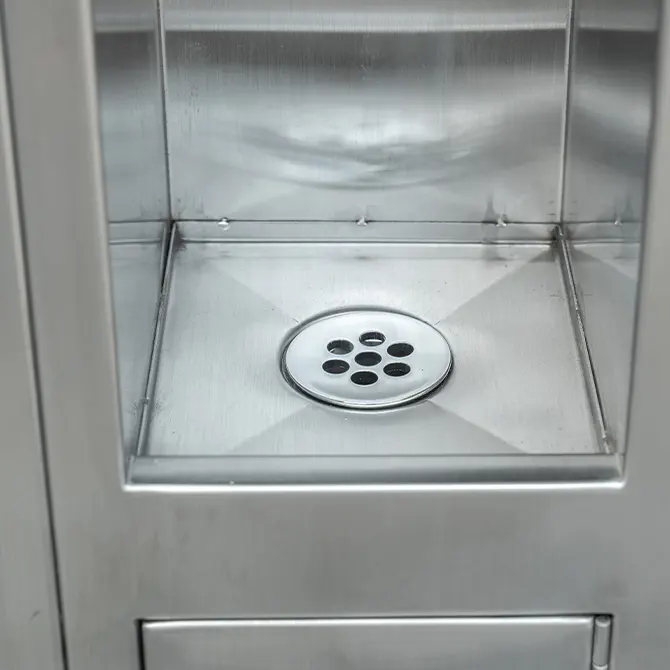

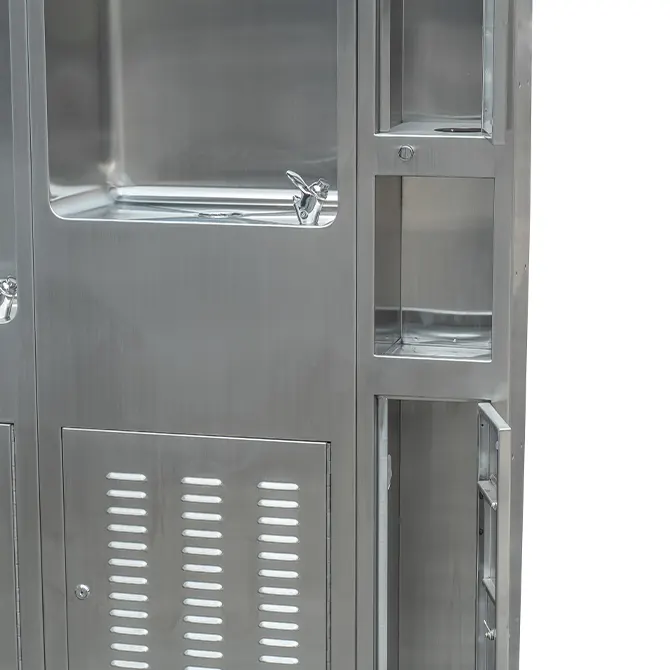

All water supply lines, drain connections, and valve assemblies are housed within the wall cavity behind the fountain’s face plate. This design eliminates exposed plumbing that can be damaged by impact, tampered with, or accumulate dust and grime in institutional environments. The only components visible from the room side are the stainless steel basin, bubbler head, bottle filler spout, and activation controls. Maintenance access is provided through a hinged panel on the face plate, allowing service personnel to reach internal components without removing the unit from the wall.

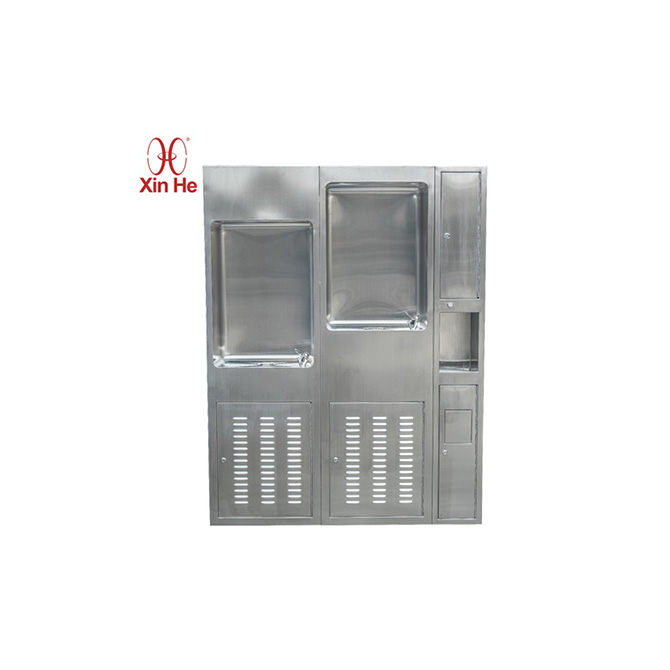

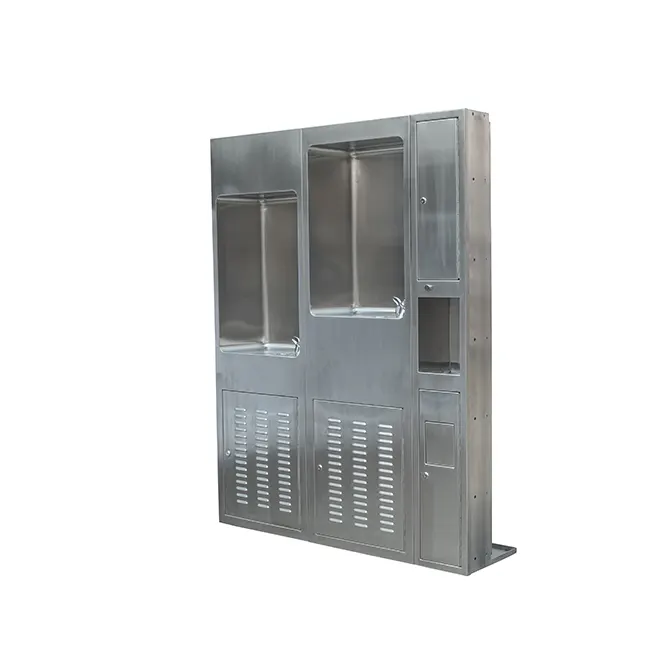

Flush-Mount Wall Integration

The face plate sits flush with the finished wall surface, creating a seamless architectural integration rather than a protruding fixture. This flush-mount approach is specified in facilities where aesthetic coordination with wall finishes matters—corporate office interiors, university buildings, healthcare facilities, and premium commercial spaces. The recessed design also reduces the unit’s projection into the circulation path, making it suitable for corridors and hallways where clear width must be maintained.

Dual-Function: Bubbler and Bottle Filler

Push-Button Bubbler Operation

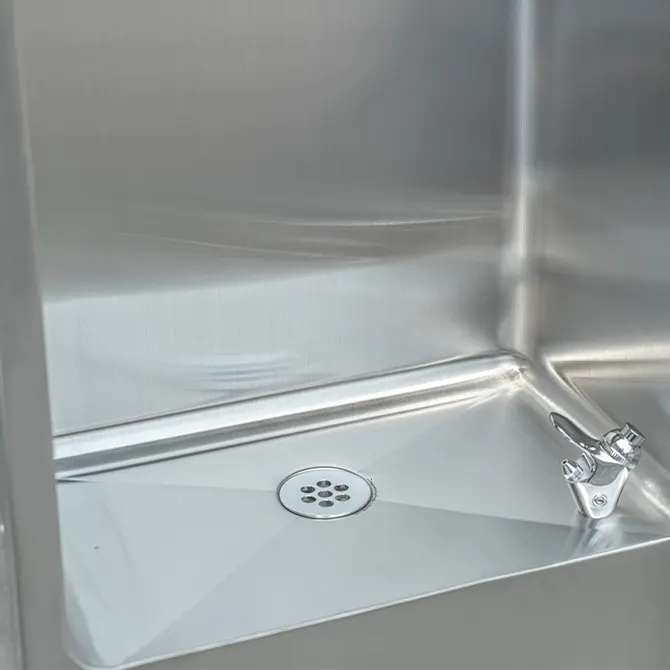

The drinking fountain station features a front-mounted push button that activates the bubbler valve. When pressed, water flows in an arched stream from the stainless steel bubbler head. When released, flow stops immediately. The push button requires less than 5 pounds of operating force, meeting ADA operable-part standards. The bubbler head includes an anti-squirt orifice that maintains stream direction regardless of pressure fluctuations in the building’s water supply.

Bottle Filler Spout Design

Above the drinking basin, a dedicated bottle filler spout is angled to accept reusable water bottles, thermoses, and containers. The filler delivers a laminar flow pattern that minimizes splash during filling. Activation is via push button or optional touchless infrared sensor. When the sensor option is specified, users simply present a bottle to the sensor zone, and water flows for a preset duration before auto-shutting off. A visual filter status indicator (available option) alerts maintenance staff when the inline water filter requires replacement.

Hygiene and Sustainability Features

The integrated bottle filler directly supports institutional sustainability programs by providing an alternative to single-use plastic water bottles. Facilities that install bottle filling stations typically report significant reductions in plastic bottle waste within the first year of installation. The touchless sensor option further enhances hygiene by eliminating the need for users to touch shared surfaces, reducing cross-contamination risk in healthcare, educational, and high-occupancy office environments.

An optional inline water filter can be integrated into the supply line within the wall cavity. The filter reduces chlorine taste and odor, particulate matter, and lead content, improving water quality at the point of dispensing. Filter replacement is accomplished through the access panel without requiring wall demolition or unit removal.

Indoor Commercial Applications

Educational Facilities

Schools and universities install recessed bottle filler fountains in corridors, gymnasium entrances, library common areas, and dormitory hallways. The recessed design prevents the unit from becoming an obstruction in corridors that must maintain clear widths for student circulation and emergency egress. The bottle filler supports campus sustainability initiatives, and the vandal-resistant construction withstands daily student traffic.

Corporate Office Buildings

Office buildings specify recessed fountains in elevator lobbies, break room approaches, and fitness center corridors. The flush-mount design coordinates with corporate interior finishes, and the bottle filler accommodates employees who carry personal hydration containers. The optional touchless sensor aligns with post-pandemic workplace hygiene protocols that minimize shared contact surfaces.

Fitness Centers and Gymnasiums

Gyms and athletic facilities require high-capacity hydration access for members who exercise and need to refill water bottles frequently. The bottle filler’s laminar flow fills containers quickly, and the recessed design prevents the unit from protruding into circulation paths where members carry equipment, towels, and personal items. The stainless steel construction tolerates the humid environment of fitness facilities without corrosion.

Material Specifications and Finishes

Type 316 stainless steel is available for all wetted components in environments with elevated humidity or chemical exposure. Powder coating in black, white, gun metal, gold, brass, or rose gold is available for the face plate to coordinate with interior design schemes.

OEM Customization and Project Support

We provide OEM manufacturing for distributors, brand partners, and project procurement teams requiring private-label or specification-customized drinking fountains. Customization capabilities include:

• Face plate dimensions adjusted to match specific wall cavity sizes

• Custom basin depths and bowl diameters

• Logo etching or laser marking on face plate

• Color-matched powder coating to RAL or Pantone specifications

• Alternative bubbler styles and heights

• Touchless sensor integration with custom activation timing

• Filter system specification and integration

• Packaging and labeling for distributor private-label programs

Project drawings, rough-in specifications, and 3D model files (REVIT, AutoCAD) are available for architect and specifier integration. Our engineering team works directly with project specifications to ensure dimensional and functional compliance.
