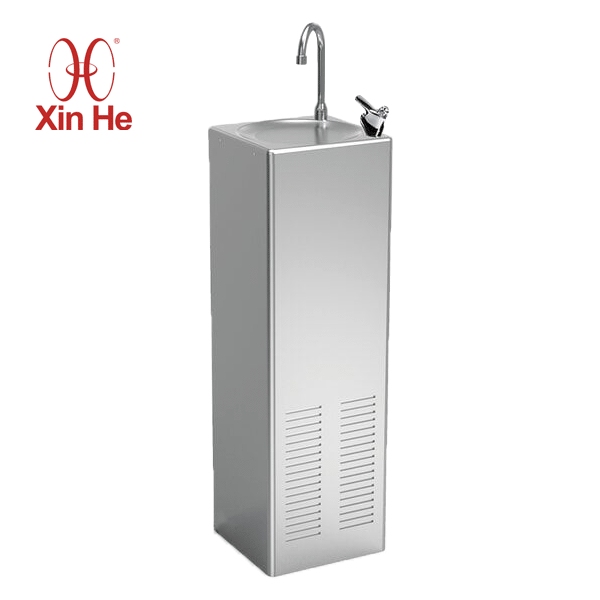

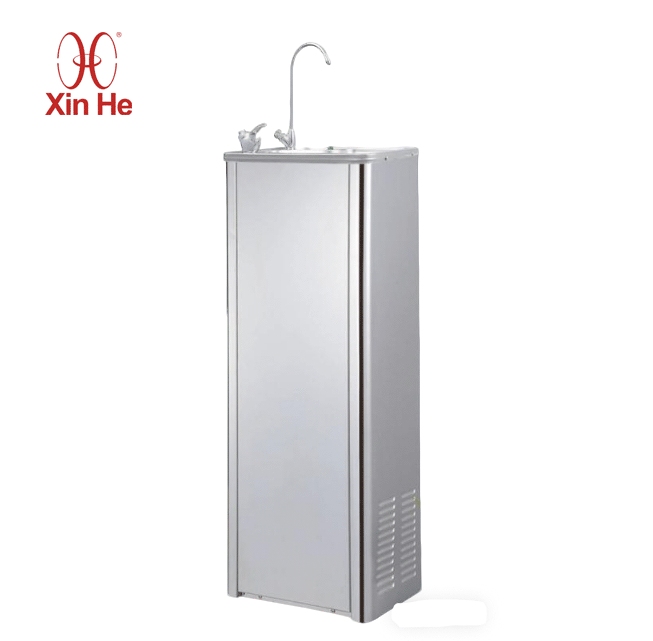

Freestanding Stainless Steel Water Dispenser with Bubbler and Gooseneck Faucet

Dual-Outlet Architecture for Mixed User Needs

Most drinking fountains serve one function: direct drinking from a bubbler. But in environments like factory floors, hospital staff areas, and commercial building lobbies, users arrive with refillable containers that a standard bubbler cannot accommodate. The PF28-323597 solves this by incorporating a gooseneck faucet alongside the bubbler, giving users a choice between drinking directly and filling a container — without requiring two separate fixtures.

Gooseneck Faucet Specifications

The gooseneck faucet provides a high-arc clearance that accommodates containers up to 25 cm in height, including sports bottles, insulated tumblers, and small pitchers. The faucet uses a manual lever handle that allows the user to control flow rate, which is important when filling narrow-mouthed containers that would splash under a fixed-flow bubbler.

Bubbler Outlet Configuration

The bubbler produces a regulated arc stream calibrated for drinking directly. It is positioned at a height and angle that allows the user to drink without contacting the spout, supporting hygienic use in shared environments.

Optional Integrated Cooling System

For projects requiring chilled water delivery, an internal refrigeration module can be integrated during production. The cooling system maintains a consistent output temperature of approximately 10°C (50°F), which is the standard for commercial chilled water dispensers. The refrigerant circuit is housed within the lower cabinet, accessible through a front service panel for filter changes and condenser cleaning.

Ambient-Only Configuration

For installations where chilled water is not required — or where electrical connection is unavailable — the unit is supplied in an ambient configuration that delivers water at supply-line temperature. This is common in temperate-climate outdoor installations and in facilities where the building’s chilled water system already pre-cools the supply.

Vandal-Resistant Construction for Public Deployment

The cabinet is fabricated from 14-gauge stainless steel with continuously welded seams, leaving no exposed edges that could be pried or bent. The bubbler and gooseneck faucet are both secured from below the deck, so they cannot be unscrewed or removed from the user side. Access panels use tamper-resistant fasteners throughout.

Front Service Access

All serviceable components — the valve assemblies, supply stops, drain connections, and optional cooling system — are accessible through the front panel. This means the unit can be placed against a wall or in a corner without requiring rear clearance for maintenance access.

Commercial Building and Industrial Applications

Corporate office buildings install this dispenser type in lobby areas and break rooms where employees and visitors carry refillable bottles. The gooseneck faucet accommodates the tall insulated bottles that have become standard in workplace hydration culture, while the bubbler serves users who want a quick drink without unpacking a container.

Factory and Industrial Floor Installations

Manufacturing facilities specify freestanding water dispensers on the production floor because wall-mounted units are often impractical on partition walls or in open floor-plan layouts. The freestanding base can be anchored directly to the finished floor, and the stainless construction tolerates the dust, oil mist, and temperature fluctuations common in industrial environments.

Healthcare Staff Area Deployment

Hospital staff lounges and nurse stations benefit from the dual-outlet design because clinical staff frequently carry personal water bottles that need refilling during shifts. The stainless surface supports the infection-control cleaning protocols used in clinical environments.

Plumbing Integration and Installation Requirements

The unit requires a 1/2-inch cold water supply line and a 1-1/4-inch drain connection. For the chilled configuration, a standard electrical outlet (110V or 220V depending on market) must be available within 1.5 meters of the installation point. Installation documentation includes rough-in diagrams, electrical specifications, and anchor patterns for floor mounting.

Filtration Options

Carbon block or ultrafiltration systems can be integrated into the supply line within the cabinet. Filter housings are accessible through the front panel, and replacement intervals depend on water quality and usage volume. A filter life indicator can be specified for installations where maintenance scheduling is managed centrally.

Customization and OEM Specifications

The dispenser can be customized in dimensions, finish, faucet type, and branding. For distributor partners, private-label branding can be applied to the front panel. Alternate faucet configurations — including a second gooseneck for simultaneous filling, or a touchless sensor on the bubbler — are available as project-specified options.

Lead Time and Order Quantities

Standard production lead time is 25–35 days from drawing approval. The MOQ is 5 units, which supports both pilot installations and multi-site rollout programs. For large-volume orders, production scheduling can be coordinated across both manufacturing facilities to compress delivery timelines.
