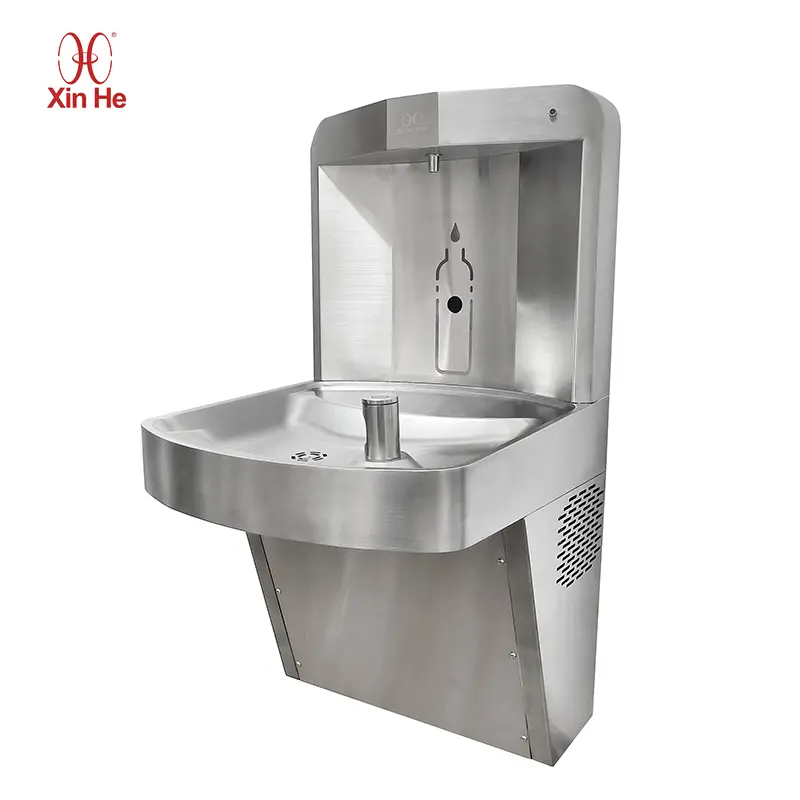

Wall Mount Stainless Steel Bottle Filler Water Fountain with High Back

Engineered for High-Traffic Indoor Hydration

Where This Unit Belongs in a Building Plan

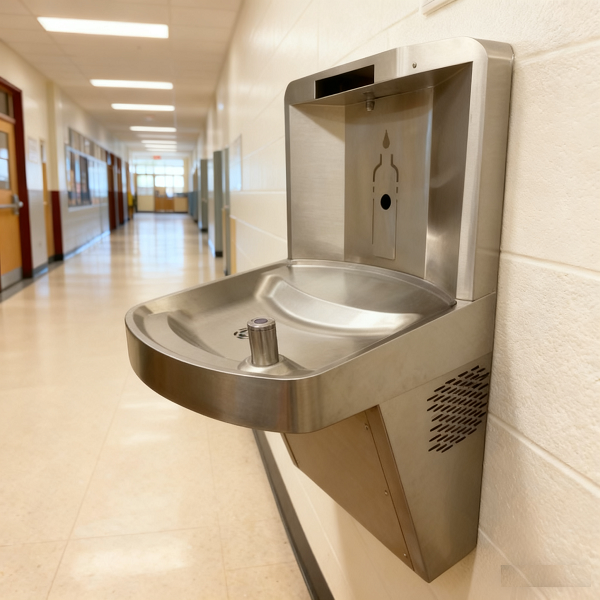

Facility managers and plumbing specifiers select this wall mount bottle filler when a corridor, gymnasium entrance, or transit platform needs both drinking access and bottle refilling without surrendering floor space. The wall-mounted footprint keeps walkways clear in buildings where foot traffic peaks during class changes, shift transitions, or boarding rushes. Architects working on K-12 schools, university residence halls, hospital lobbies, and corporate office floors routinely call for this configuration in high-traffic hydration zones.

Traffic Volume and Service Intervals

A single unit in a school corridor can see several hundred activations per day. The push-button bubbler and bottle filler spout are built with stainless internals and off-the-shelf valve cartridges, so maintenance crews can swap wear parts without special tools or manufacturer-specific service calls. The high back panel also means fewer wall-cleaning cycles, since splash and mineral buildup collect on the stainless surface rather than painted drywall or tile grout.

The High-Back Advantage: Wall Protection and Maintenance

Why the Back Panel Matters

The extended back panel rises above the bowl and dispensing area, creating a continuous stainless surface that intercepts water spray, bottle condensation, and accidental splashing. In buildings with painted gypsum walls or moisture-sensitive finishes, this detail prevents the staining, peeling, and mold growth that plague flush-mounted fountains without backsplash protection. Facility directors at hospitals and corporate campuses specifically request the high-back variant when wall finishes are specified by interior designers and cannot tolerate water contact.

Cleaning Workflow for Custodial Teams

Custodial staff wipe the back panel and bowl with standard stainless-safe cleaners during routine rounds. There are no crevices behind the unit where grime accumulates, because the panel sits flush against the wall surface. Drain strainers lift out for debris removal, and the bubbler head unscrews for descaling — a five-minute task that keeps water flow consistent across hundreds of daily uses.

Dual-Dispensing Architecture: Bubbler Meets Bottle Filler

Two Water Outlets, One Plumbing Connection

The unit routes water to both a drinking bubbler and a downward-facing bottle filler spout through a single supply line. Users press the push-button to drink directly from the bubbler or hold a reusable bottle under the filler spout. This dual configuration supports sustainability mandates in schools and corporate campuses that aim to reduce single-use plastic bottle waste while still serving users who want a quick drink without a container.

Flow Rate and Fill Time

Bottle filler spouts deliver a controlled stream that fills a standard 20-ounce bottle in roughly five to seven seconds. The bubbler arc is set to clear the bowl rim by four inches, meeting common plumbing code expectations for drinking fountain water stream height. Flow restrictors inside the valve body keep water usage efficient without sacrificing user experience.

Material and Construction Standards

Type 304 Brushed Stainless Steel

The fountain body, back panel, bowl, and internal waterways are fabricated from Type 304 austenitic stainless steel with a brushed satin finish. This grade resists corrosion from municipal chlorinated water, cleaning chemicals, and ambient humidity in indoor pool decks or locker room corridors. The brushed texture hides minor scratches from daily use, unlike polished mirror finishes that show every contact mark.

Gauge and Structural Integrity

Xinhe welds the bowl and frame from 14-gauge stainless sheet — thick enough to resist denting when a backpack or equipment cart bumps the unit in a busy hallway. Welds are ground smooth and blended into the satin finish so there are no exposed seams to trap soil or bacteria. Mounting plates distribute the load across the wall substrate, preventing the leverage damage that thin-gauge fountains suffer when users lean on the bubbler arm.

Installation and Rough-In Planning

Wall Preparation and Anchoring

The wall mount bottle filler requires a load-bearing wall or a backed blocking substrate capable of supporting the unit and resisting downward leverage on the bubbler. Installers anchor through the back panel into studs or masonry using stainless hardware provided with the unit. Concealed plumbing means the supply line and drain exit through the wall behind the unit, so rough-in must be completed and pressure-tested before the fountain is mounted.

Drainage and Supply Rough-In

Plumbers run a half-inch cold water supply and a two-inch drain to the rough-in dimensions provided in the PF96-455085 submittal sheet. The drain connection accepts standard trap configurations, and the unit includes an integral strainer basket to catch bottle caps, gum, and debris before they enter the waste line. For projects integrating chilled water, a dedicated electrical rough-in near the unit accommodates the optional compressor module.

Certifications and Code Compliance

Plumbing and Health Standards

Xinhe manufactures this bottle filler under cUPC, CE, WaterMark, and NSF/ANSI 61 certifications. These cover lead-free compliance for potable water contact, material safety for drinking water pathways, and plumbing code acceptance across North American, European, and Australian jurisdictions. Specifiers can request individual certification documents for project submittal packages.

Accessibility Considerations

The mounting height and push-button placement can be configured to meet ADA reach-range requirements for forward-approach wheelchair access. Specifiers should confirm local code amendments for spout height and clear floor space — the unit can be ordered at standard or ADA-compliant mounting heights to satisfy both standing users and seated users in the same installation.

OEM Customization and Project Support

Private Label and Brand Integration

Xinhe produces wall mount bottle fillers for several global hydration brands and supports private-label programs with custom logo etching, branded push-buttons, and color-matched finishes. Distributors and brand partners can specify packaging, documentation, and model numbering to align with their own catalog systems.

Custom Modifications for Unique Projects

Project teams that need non-standard bowl depths, extended back panels for tall wall protection, or sensor-activated bottle filler spouts can request modifications with no minimum order threshold. Xinhe’s engineering team reviews rough-in drawings and produces fabrication drawings for approval before production begins, ensuring that each unit matches the project’s plumbing layout and architectural intent.
