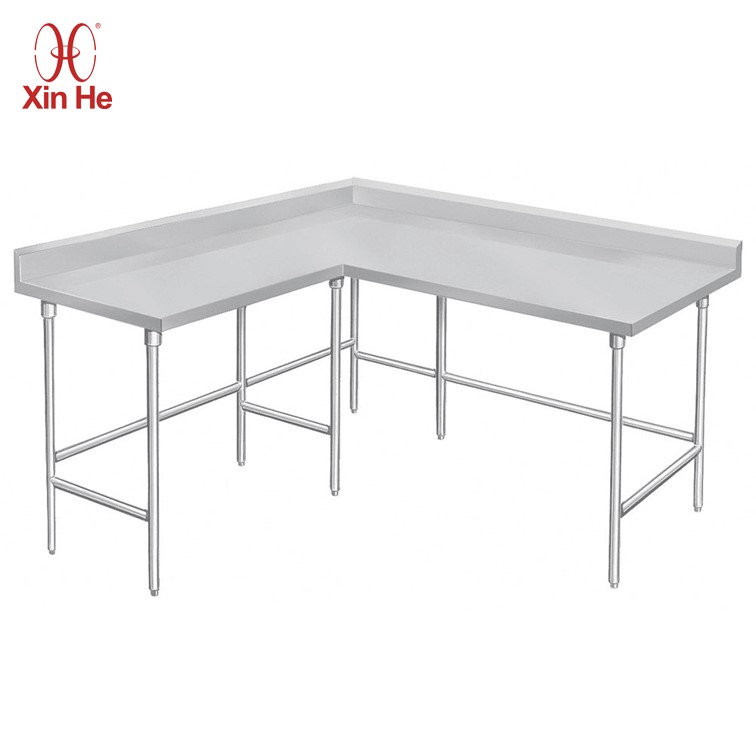

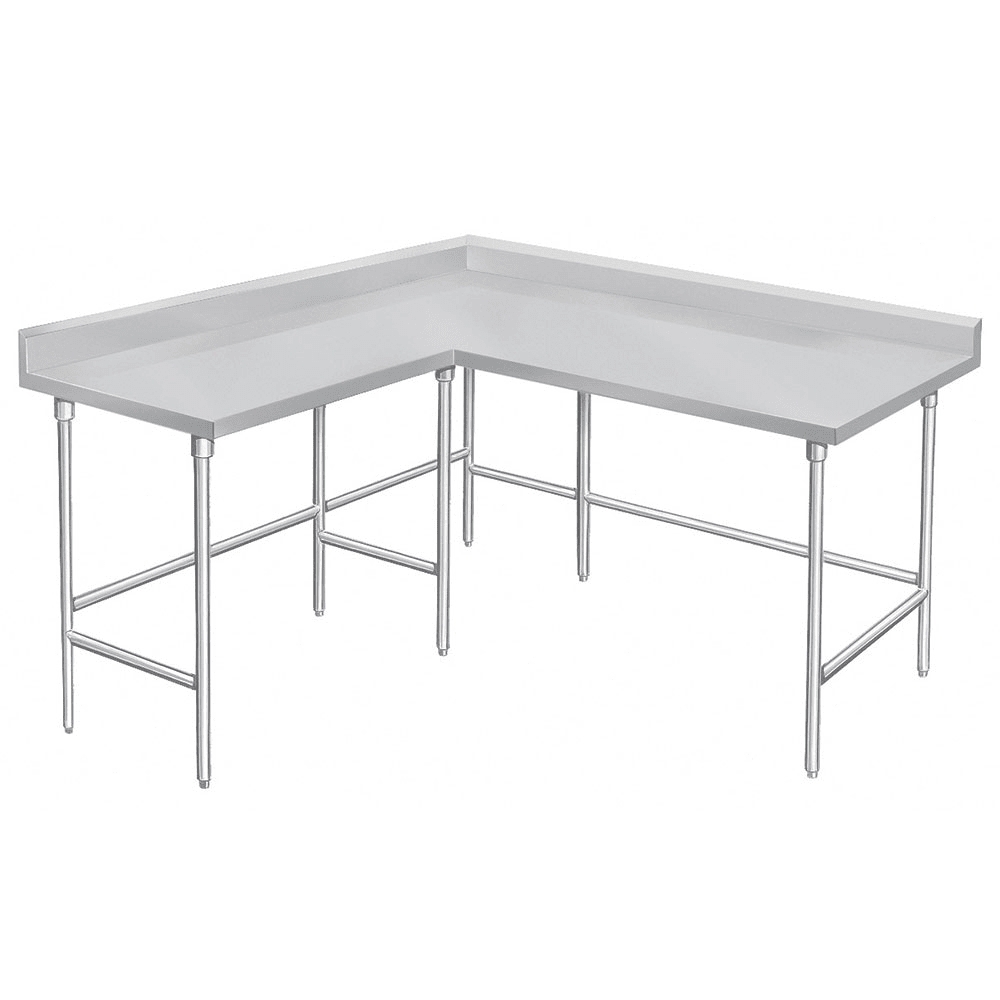

L-Shape Stainless Steel Corner Work Table with Backsplash

Why an L-Shape Changes the Workflow

From Dead Corner to Continuous Prep Line

Most commercial kitchens have at least one corner where two work zones meet at a right angle. A standard rectangular table placed there leaves a gap between stations—staff walk around it, reach across it, or simply avoid it. The WT01 corner replaces that gap with a single L-shaped stainless steel surface that runs along both walls without a break.

The difference is structural, not just visual. Two separate tables pushed into a corner create a seam where crumbs collect, liquids pool, and cross-contamination risks increase. An L-shape corner work table eliminates that seam entirely. One continuous deck, one welded frame, one hygienic surface that connects what was previously disconnected.

For kitchen planners designing layouts for hotels, canteens, or catering commissaries, this means the corner stops being wasted space and starts functioning as a bridge between adjacent prep, cooking, or plating stations. Staff move along the L without turning away from the wall, and the wraparound shape keeps everything within arm’s reach.

When a Simple Corner Table Is Not Enough

A compact corner table with an open undershelf—like our corner work table with storage—works well for filling a small gap and holding a few bins below. But when the project calls for a longer surface that spans two walls, a wraparound configuration with a backsplash becomes the more practical choice. The WT01 corner provides that extended reach while keeping the wall protected from grease, water, and food spatter.

The Backsplash Is Not Optional Here

Formed from the Same Sheet, Not Bolted On

On a straight-line prep table, a backsplash is a useful add-on. On an L-shape corner work table, it becomes a structural necessity. Two walls meet at the corner, and both need protection from the daily assault of oil splatter, running water, and food debris that a busy prep line generates.

The WT01 corner uses a backsplash formed from the same stainless sheet as the top deck. There is no caulked joint, no screwed-on strip, no seam where marinades can collect and ferment. The transition from deck to backsplash is seamless—pressed and welded in a single operation during fabrication. This matters especially at the corner vertex, where two backsplash sections meet. A bolted assembly would leave a gap at that critical junction; a formed assembly closes it completely.

Height Options for Different Station Types

Standard builds carry a 100mm backsplash, sufficient for general prep and assembly work. For fry stations and wok lines where oil travels upward, 150mm is available. Kitchens running high-pressure washdown routines—HACCP-certified food factories, EU-regulated processing plants—can specify 200mm for full wall coverage during daily sanitation cycles.

Dimensions That Fit Real Kitchen Corners

Standard and Custom Sizing

The default configuration measures 1500 × 600 × 900mm with a 150mm backsplash—roughly 59 inches along one wall and 24 inches along the other, at a working height of 35.4 inches plus the splash guard. This fits a typical corner where a medium-depth table runs along one wall and a narrower extension continues along the adjacent wall.

Every dimension is adjustable. The two arms of the L can differ in length and depth to match the actual wall clearances in your kitchen. Leg height shifts to accommodate local ergonomic standards—850mm for Southeast Asian canteen lines, 900mm for North American staff who average taller, or custom heights for Middle Eastern hotel production kitchens where equipment mounting dictates the working level.

Popular Configurations by Market

Material and Construction Details

304 Stainless as Standard, 316 for Regulated Environments

The WT01 corner is fabricated from Type 304 stainless steel—18% chromium, 8% nickel—providing the corrosion resistance and acid tolerance that commercial food preparation demands. Lemon juice, vinegar, tomato sauce, and degreasing solutions wipe off the #4 brushed satin finish without staining. The longitudinal grain direction hides minor scratches from knife work and metal utensils, blending them into the surface rather than highlighting every scuff like a mirror polish would.

For EU food factories that require daily pressure-wash sanitation, or for Middle East projects where humidity and salt exposure accelerate corrosion, Type 316L is available as an upgrade. The molybdenum content in 316 provides additional resistance to pitting in chloride-rich environments—coastal kitchens, seafood processing lines, and halal-certified facilities near the Gulf.

Welded Frame, Reinforced Top

The frame is a heavy-duty welded structure. Legs are seam-welded to the top deck perimeter, and cross-bracing connects the legs at the base for lateral stability. The tabletop is reinforced with an internal support channel that prevents deflection under concentrated loads—a 25-kilo stockpot dropped on the corner vertex will not dent the surface on standard 18-gauge builds, and 16-gauge upgrades are available for kitchens that regularly handle cast iron or heavy equipment placement.

Bullet feet with adjustable leveling pads come standard. Stem casters with side-lock brakes can replace the feet for mobile configurations in catering halls, convention centers, or temporary event kitchens.

Who Orders This Configuration

Distributors and Project Buyers

US and Canadian restaurant equipment distributors order the WT01 corner as part of complete kitchen packages—pairing it with straight-line prep tables, sink tables, and corner fillers to cover every wall in a back-of-house layout. The L-shape configuration fills the one spot that rectangular tables cannot, and buyers know their clients need it when the kitchen plan shows two work zones meeting at a right angle.

Hotel FF&E procurement teams in Dubai, Riyadh, and Doha specify custom-height L-shape corner work tables for central production kitchens where multiple cuisines share the same prep area. The wraparound surface lets one team work along one arm while another team uses the other, without either crossing into the other’s zone.

Catering Commissaries and Institutional Kitchens

Southeast Asian catering companies running central commissaries for canteen contracts buy L-shaped configurations in batches of twenty to fifty units. The continuous surface supports high-volume prep—chopping, marinating, portioning—across two walls simultaneously, which reduces the number of separate tables needed and simplifies the workflow layout.

School cafeteria contractors in Australia order WaterMark-compliant builds with rounded safety edges. Hospital kitchen project managers in the EU specify 316L tops with fully sealed welds for daily chemical washdown. Laboratory equipment buyers in North America use the L-shape for sample preparation stations where two analysts work side by side at the same corner.

Customization and Project Support

OEM and ODM Capabilities

The WT01 corner is built to order. Importers and private-label buyers can specify their own brand marking, packaging format, and documentation requirements. Distributors who need a corner table that matches their existing straight-line table series—in gauge, finish, leg style, and edge profile—can have the WT01 corner fabricated to those exact specifications so the entire line looks cohesive on the showroom floor.

Project contractors bidding on hotel, hospital, or institutional kitchen installations can request 2D shop drawings within three working days of submitting their specs. For complex bids, 3D renders showing the L-shape corner work table in a typical kitchen layout are available to include in proposal documents.

Accessories and Add-Ons

Optional undershelf, drawer units, and sliding rack configurations can be added below the L-shaped deck for storage. Faucet, strainer, and drain pipe accessories are available for builds that include an integrated basin at the corner vertex. The minimum order quantity is 5 units, and pricing scales with volume for project shipments.

Factory and Certification Background

Two Facilities, Dual-Source Advantage

Xinhe operates 52,000 square meters of factory space across Jiangmen, China and Ho Chi Minh City, Vietnam. Dual-source manufacturing lets us route orders to the facility that offers the best tariff position and shipping lane for the destination market. European buyers benefit from Vietnam-origin CE documentation under relevant trade agreements. North American distributors leverage China factory capacity for bulk orders while using Vietnam production to diversify supply chain risk.

Every WT01 corner is cut, formed, welded, and finished in-house. Frames are not outsourced to third-party metal shops. Gauge consistency, weld penetration, and dimensional squareness are controlled from raw material to final inspection.

Certifications

Xinhe holds cUPC, CE, WaterMark, NSF/ANSI 61, ISO 9001, and SGS certifications. These apply across the entire product line, including all L-shape corner work table configurations.
